Dimplex DWF3651 - Exploded Parts Diagram; Replacement Parts List

5

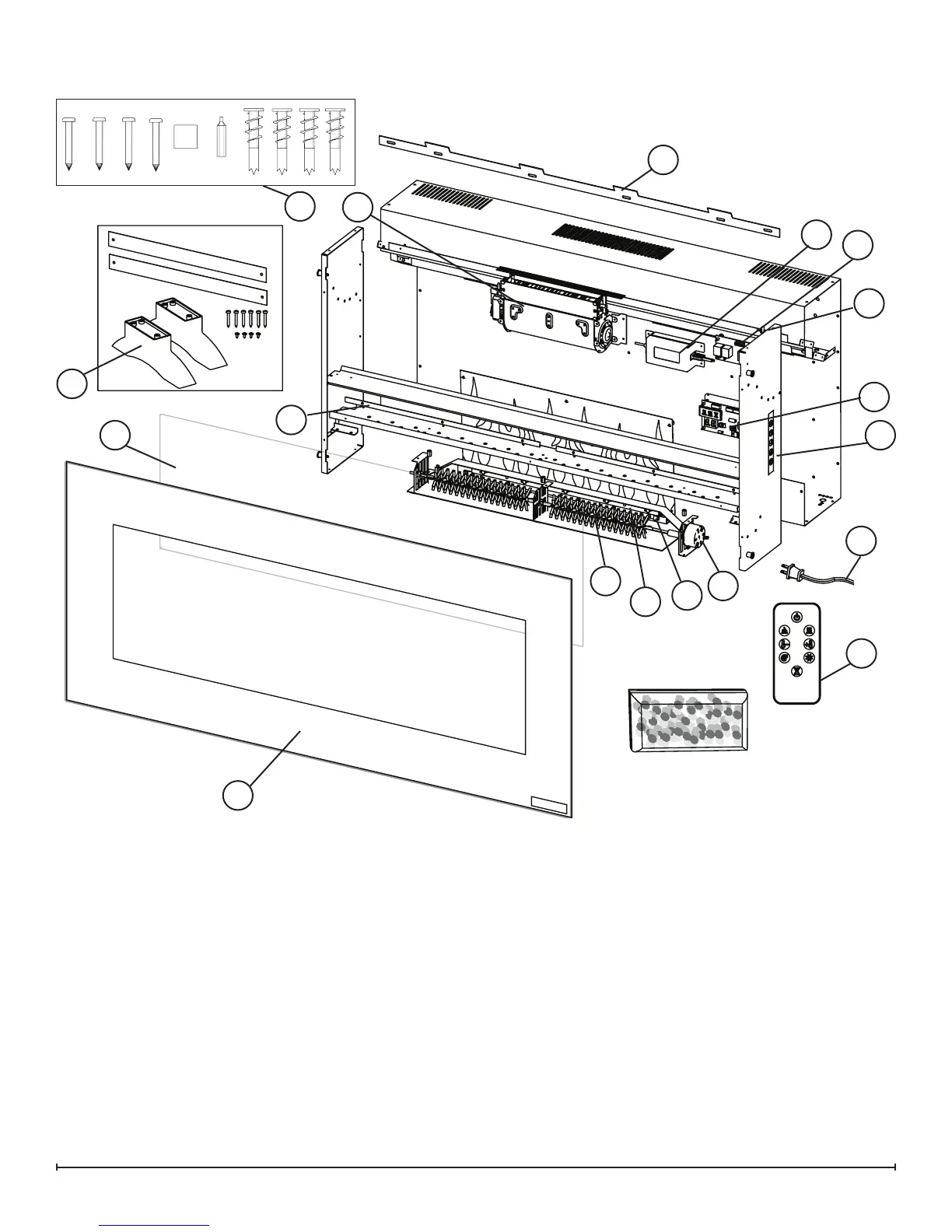

EXPLODED PARTS DIAGRAM
REPLACEMENT PARTS LIST
1. Heater Assembly (with Cutout) ............2203610400RP
2. Front Glass. . . . . . . . . . . . . . . . . . . . . . . . . . 5902440100RP
3. Partially Reective Glass ................5902420100RP
4. Power Cord ..........................4100010900RP
5. Flicker Motor. . . . . . . . . . . . . . . . . . . . . . . . . . 2000500100RP
6. Flicker Rod ..........................5901070200RP
7. Mounting Hardware Kit. . . . . . . . . . . . . . . . . . 9600350100RP
8. Mounting Bracket . . . . . . . . . . . . . . . . . . . . . . 1017130259RP
9. Display/ Control Board . . . . . . . . . . . . . . . . . . 3001430200RP
10. Switchboard ..........................3001520100RP
11. Relay Board . . . . . . . . . . . . . . . . . . . . . . . . . . 3001440200RP
12. AC/DC Adapter ........................2100250100RP
13. Remote Control .......................6700520200RP
14. Thermistor ...........................3001560100RP
15. Surface Mount Kit. . . . . . . . . . . . . . . . . . . . . . 9601410100RP
16. Acrylic Media .........................1400150100RP
17. Media LED Set (RGB) ..................9601180100RP
18. Flame LED Light Assembly (Amber) .......3001420200RP
19. Flame LED Light Assembly (RGB) . . . . . . . . . 3001570200RP
6
1
2
3
4
5
12
10
11
7
8
9
13
19
14
15
17
18
