14
EF3003, SF3003, DF3003
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
TO REPLACE FLAME SPEED CONTROL

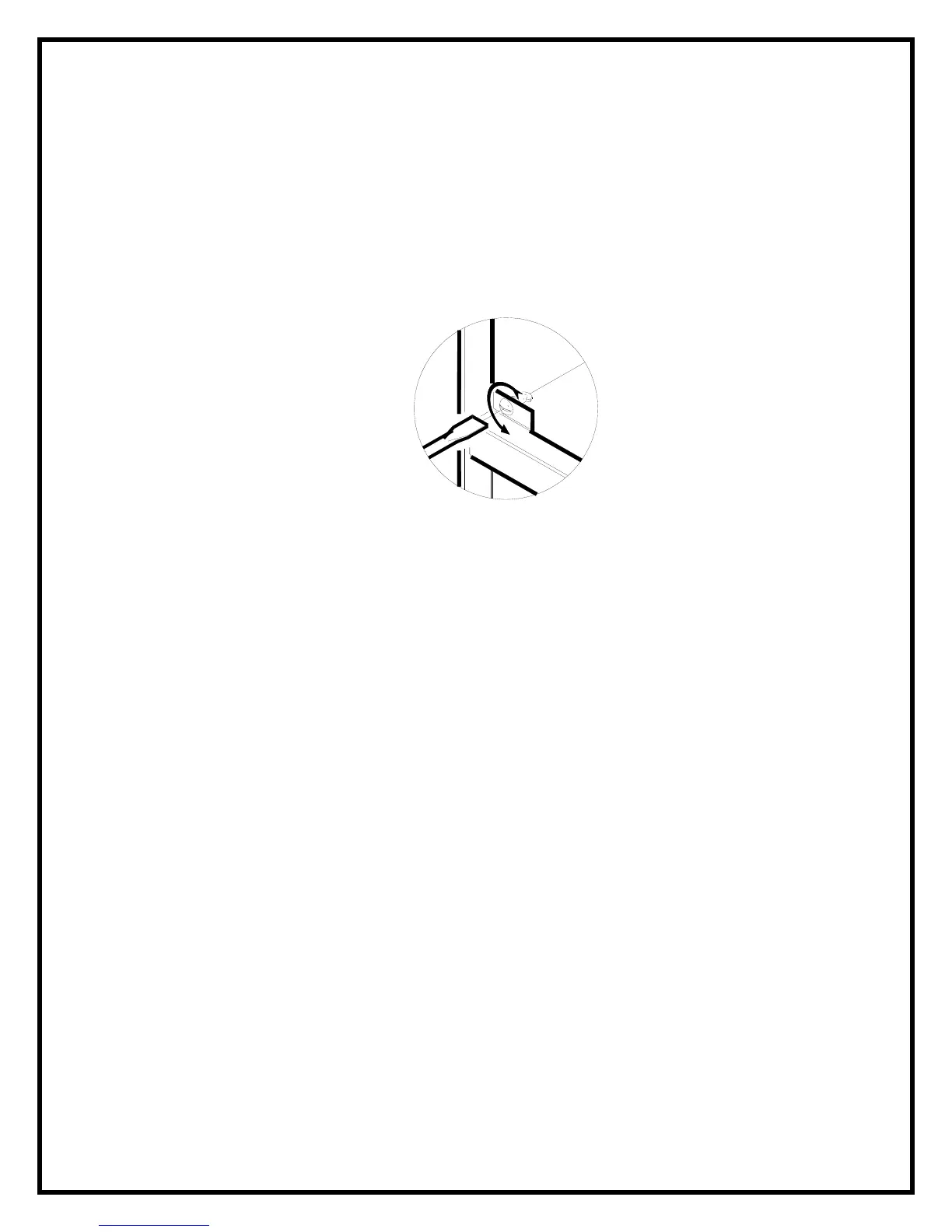

1. Remove the trim by turning the retaining fasteners counter clockwise ¼ turn until the
trim releases from the firebox using a slotted screwdriver.
2. Remove the firebox from the mantel.
3. Lower the grill covering the controls.
4. Remove the (10) retaining screws on the top panel and remove the top being careful
not to damage any of the wiring.
5. Pull off the control knob from the flame speed control and remove the mounting nut.
6. Locate the flame speed control mounted on the top panel and disconnect the wiring
clips and connections noting their original locations.
7. From under the top panel, break off the four mounting studs on the flame speed
control by grasping with pliers and twisting on the protruding part of the stud, push
the remainder of the studs out through the top panel.
NOTE: New mounting studs are supplied with the replacement speed control.
8. Properly orientate the new flame speed control and connect all of the wiring
connections.
9. Reassemble in the reverse order as above.
