Dimplex EF830 - Installation Steps (Part 1)

19
EF830
In more detail . . .

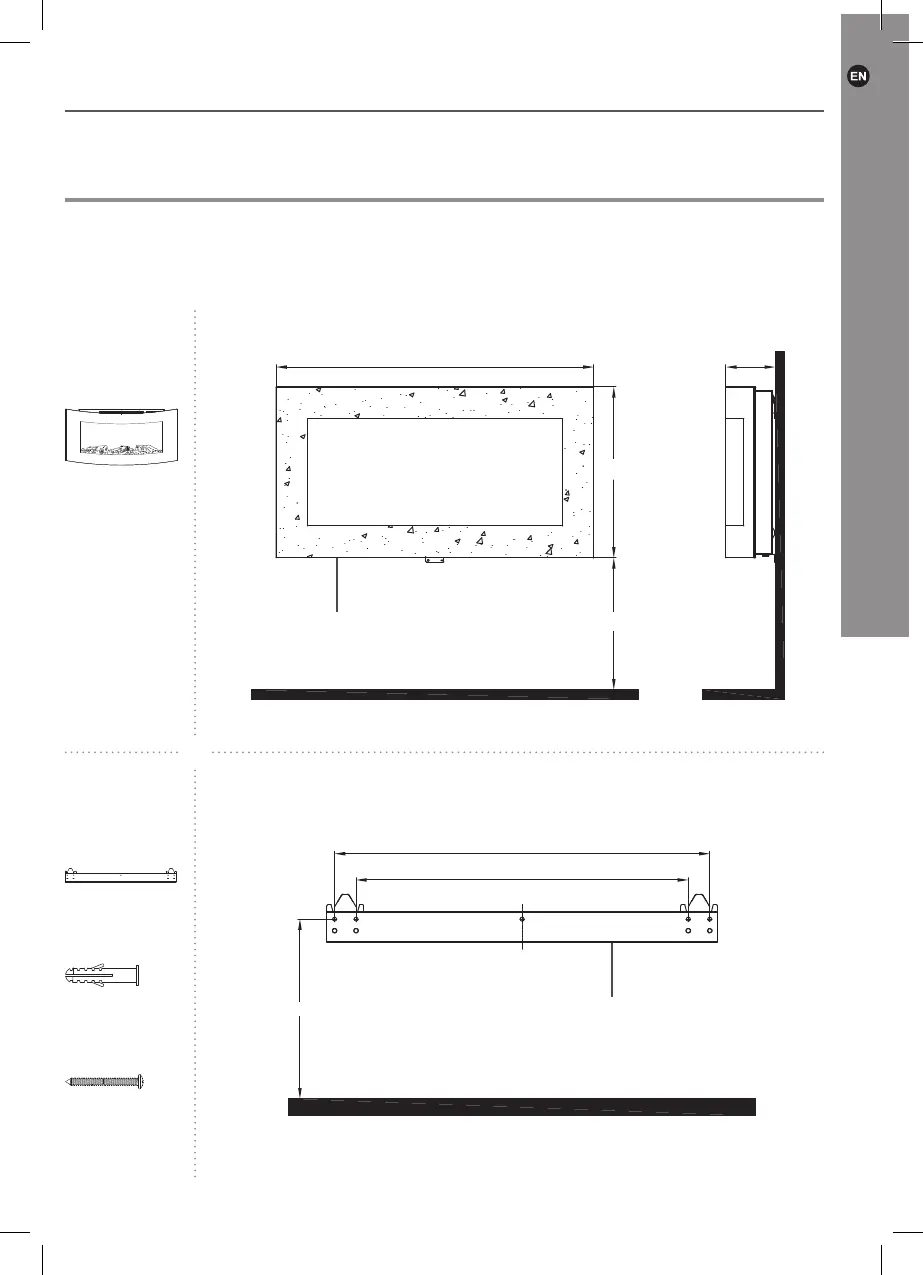

Installation
NOTE: This appliance is designed to be permanently xed to a wall at a minimum
height of 300 mm from bottom of heater to oor, and a height of 600 mm from bottom
of heater to oor is recommended for this drawing.
01
[01] x 1
[01]
1000
500
138
600
02
[02] x 1
[04] x 5
[05] x 5
[02]
652
596
1020
Installation
