Installation
Step-by-step Installation
1. Remove the old thermostat carefully and identify the two wires from the wall box.
2. Gently remove the faceplate from the right side of the new thermostat.
Note: Do not remove the screws from the back of the unit as these screws hold the ther-
mostat together.
3. Using the wire nuts provided, securely fasten each wire from the new thermostat to a
wire in the wall box. Rever to the wiring diagram on the next page.
Note: Ensure no bare wire is exposed.

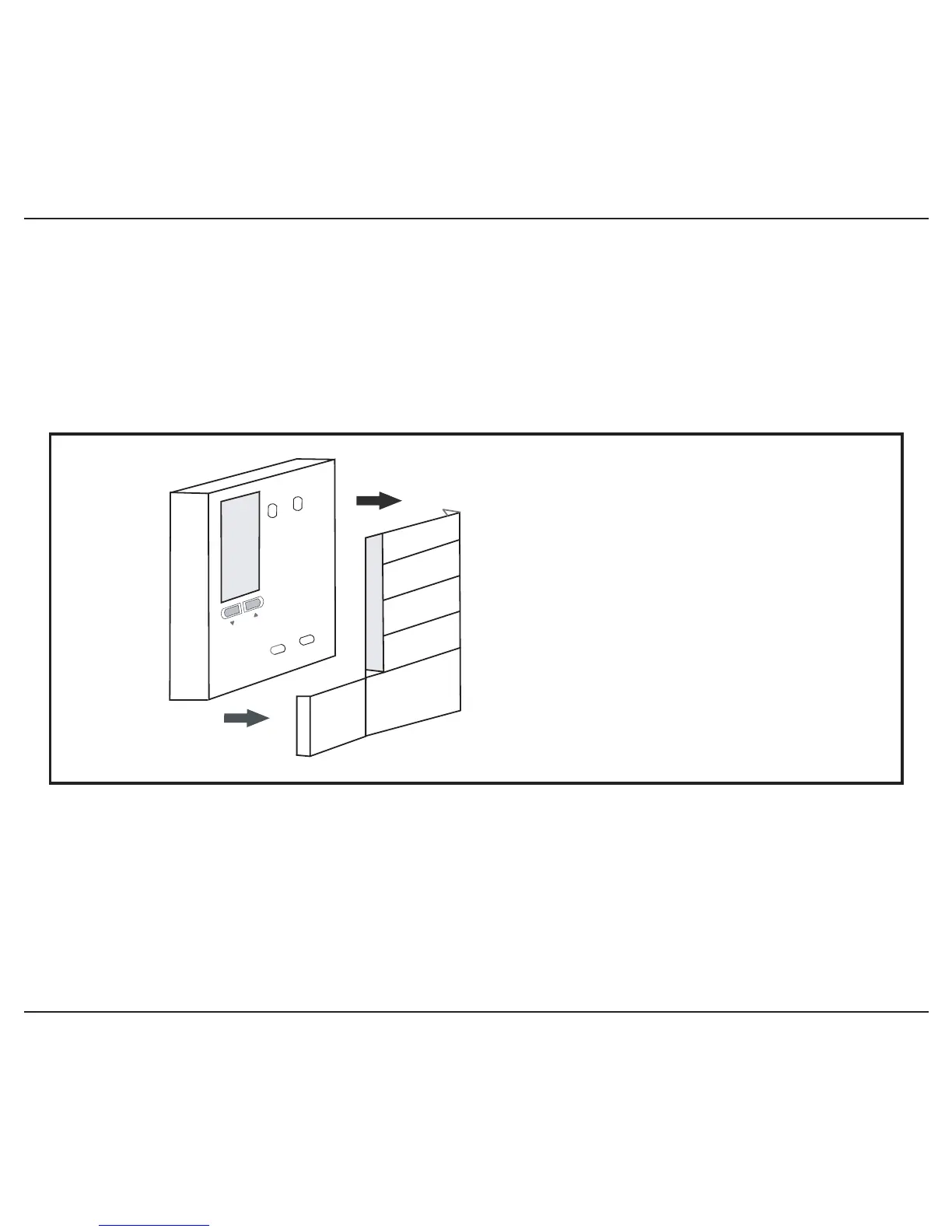

Remove Faceplate
To remove the faceplate, genly
pull the right side of the ther-
mostat. The faceplate should
come off easily.
To Next Page
