Minimum Ventilation clearances
For adequate air flow the distances shown in Figure 3
must be observed. The free field indicates that no object
will disrupt the air flow out of the unit.

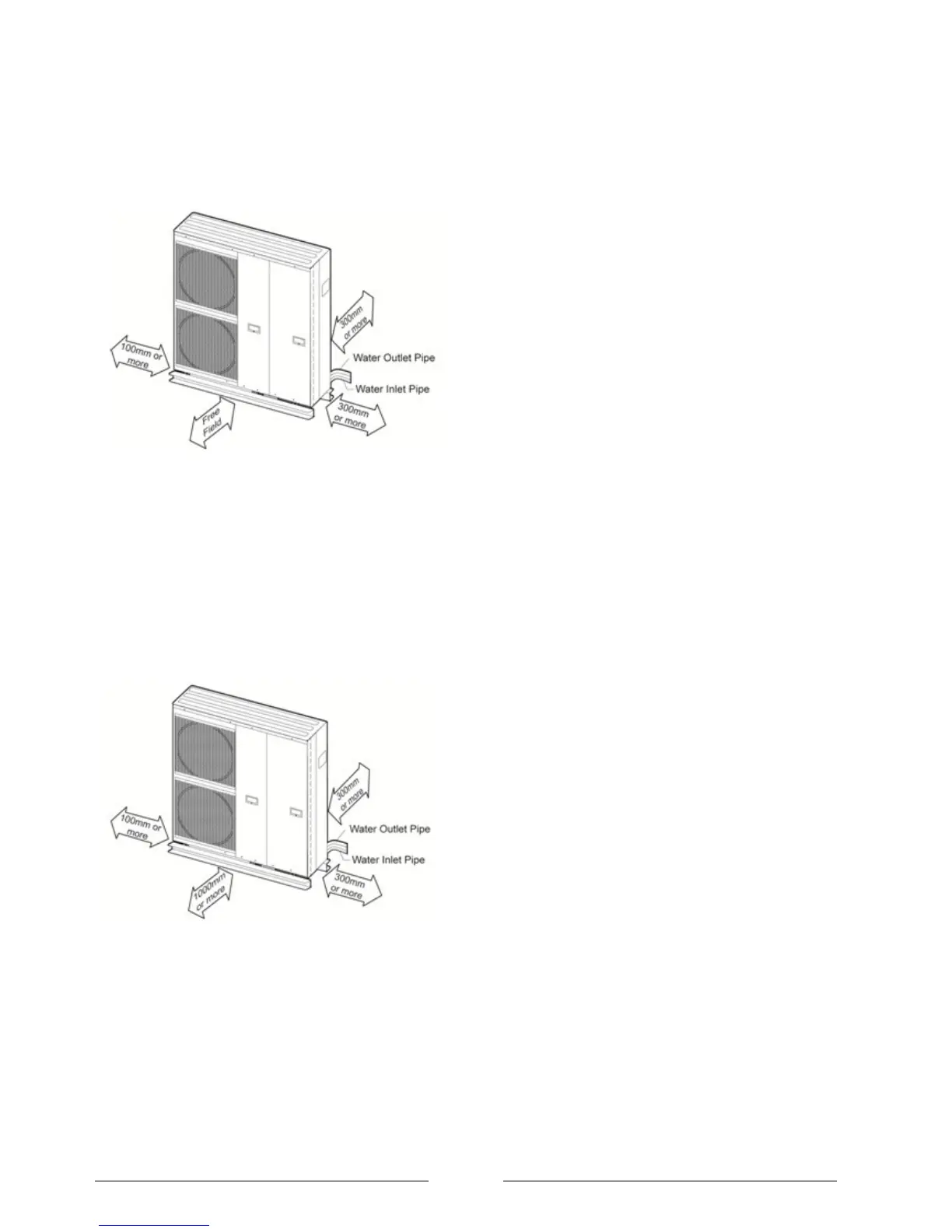

Figure 3: Minimum distances to objects to ensure adequate
ventilation
Minimum maintenance clearances
It must be possible to carry out maintenance work without
hindrance. The clearances displayed Figure 4 should be
observed. For example if the unit is installed on a balcony
there must be a space measuring 1000mm in front of the
unit of maintenance.
Figure 4: Minimum clearances for maintenance (not
including clearance for air circulation)
Wall mounting
If the heat pump is to be wall mounted a condensate
collection tray (supplied by the installer) should be fixed
under the heat pump. The pipe from the tray to a suitable
drain should be heated so that it can‟t freeze and become
blocked.
