3 Scope of supply

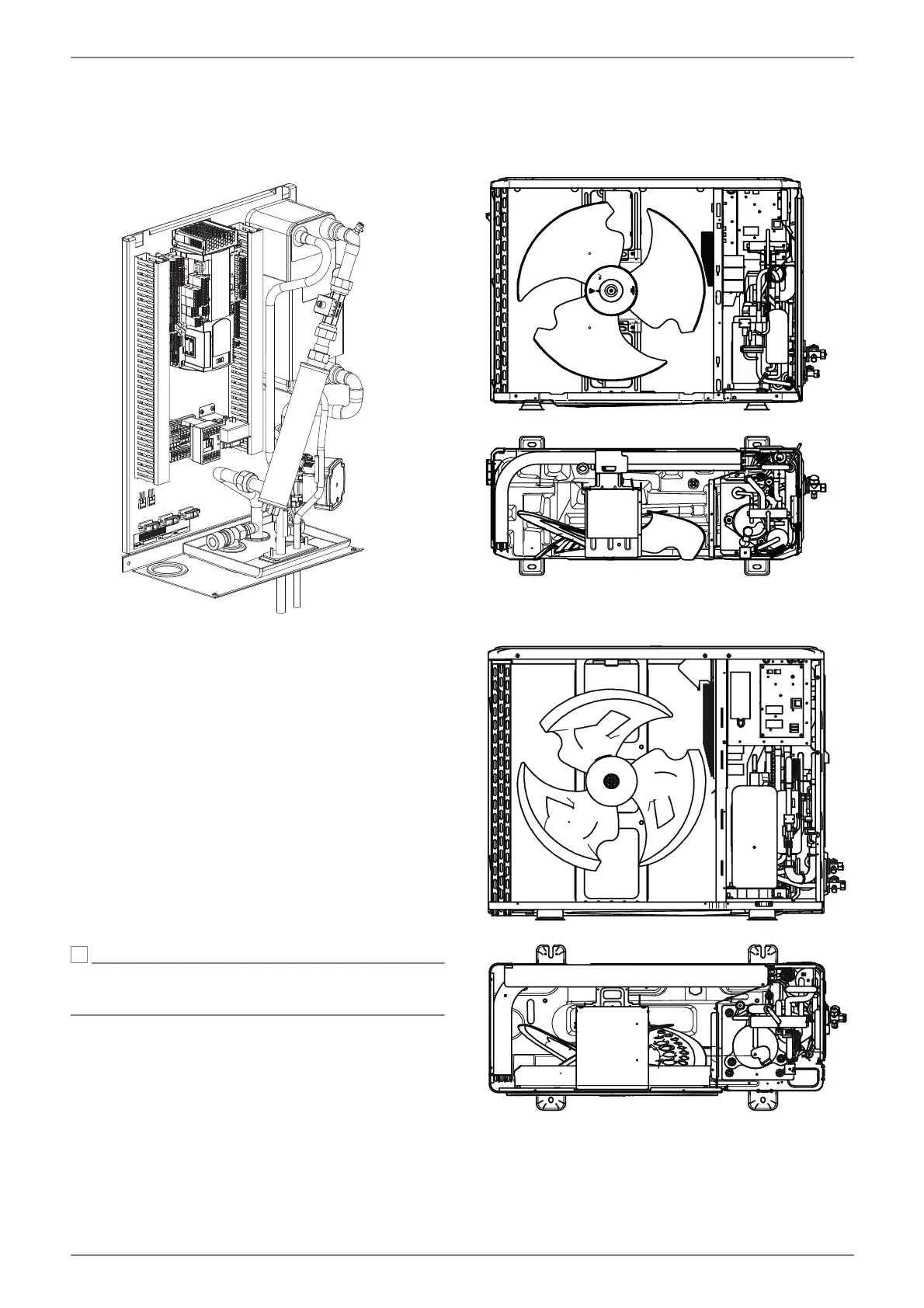

3.1 Indoor unit
Hydraulic components
 Unmixed heating circuit including controlled circulating
pump
 2nd heat generator, electrical pipe heater, heat output 2 /
4 / 6 kW, secured via safety temperature limiter
 Flow rate sensor
Safety equipment:
 Safety valve, start-to-leak pressure 2.5 bar
Refrigerating equipment
 Heat exchanger refrigerant / heating water
 Connections for split line
Electrical components
 Heat pump manager with connection boards
 Supply connection terminals and contactor, pipe heater
NOTE
º
ºººº
External sensor is included with the outdoor unit as standard.
Connection of an external sensor is possible Chapt. 8.5.2 on P.
16.
3.2 Heat pump manager
The integrated heat pump manager is a convenient electronic
regulating and control device. It controls and monitors the en-
tire heating system based on the outside temperature, as well
as domestic hot water preparation and safety systems.
The enclosed operating instructions describe the function and
use of the heat pump manager.
3.3 Outdoor unit
3.3.1 6 kW outdoor unit
3.3.2 10 kW / 14 kW outdoor unit
