4.5.3 Connection of outputs R1 and R2

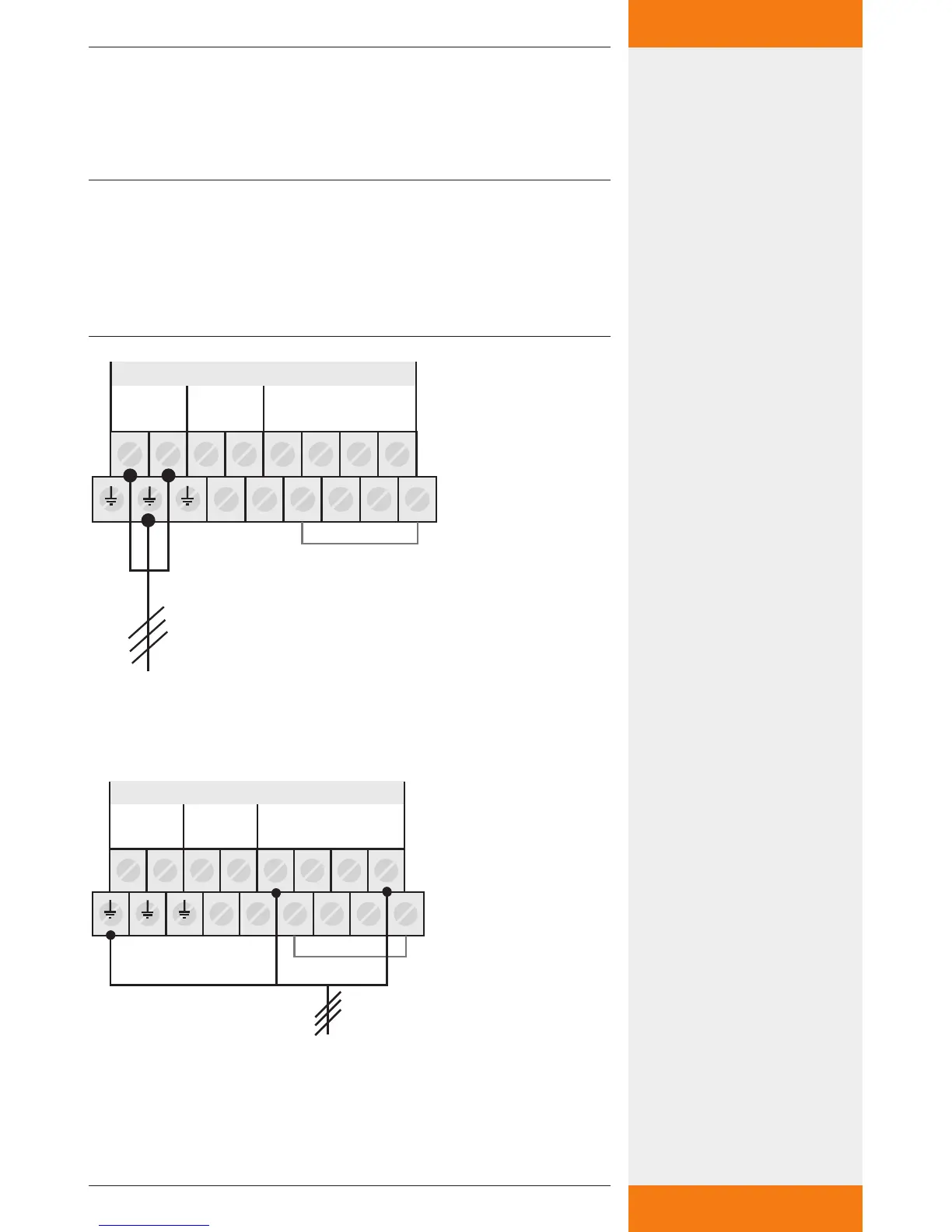

Output R1:
Semiconductor relays (TRIAC), also suitable for RPM control; max.
switching current: see type plate
CAUTION
Avoiding damage and malfunctions
When connecting an external relay or contactor, or when connect-
ing a pump which has its own electronic RPM control, the controller
output's RPM control must be deactivated (see chapter 7.4.3 "Setting
the RPM control parameter").
N R1 n.c n.c N n.c n.c. R2
n.c. L L n.c. n.c. X
R1 R2
R1
D1
Output R2: switched output or potential-free output
230 VAC switched output (option: 115 VAC) via electromechanical
relay; max. switching current: see type plate; wire bridge must be
connected!
N R1 n.c n.c N n.c n.c. R2
n.c. L L n.c. n.c. X
R1 R2
D1
R2
•

•
R1: output 1
R2: output 2
D1: wire bridge
R1: output 1
R2: output 2
D1: wire bridge
