Dimplex WPM 2006 R Operating Instructions For Users

EN-4
4
English
4 Operation
 The heat pump manager is operated using 6 keys: Esc,
Modus, Menu, ⇓, ⇑, ↵ . Different functions are assigned to
these buttons according to the current display (Standard or
Menu).
 The operating status of the heat pump and the heating
system is indicated in plain text on a 4 x 20 character LC
display (see Chap. 9 on p. 15).
 6 different operating modes can be selected:
Cooling, Summer, Auto, Party, Vacation, 2nd heat
generator.
 The menu consists of 3 main levels:
Settings, Operating data, History
(see Chap. 6 on p. 5)

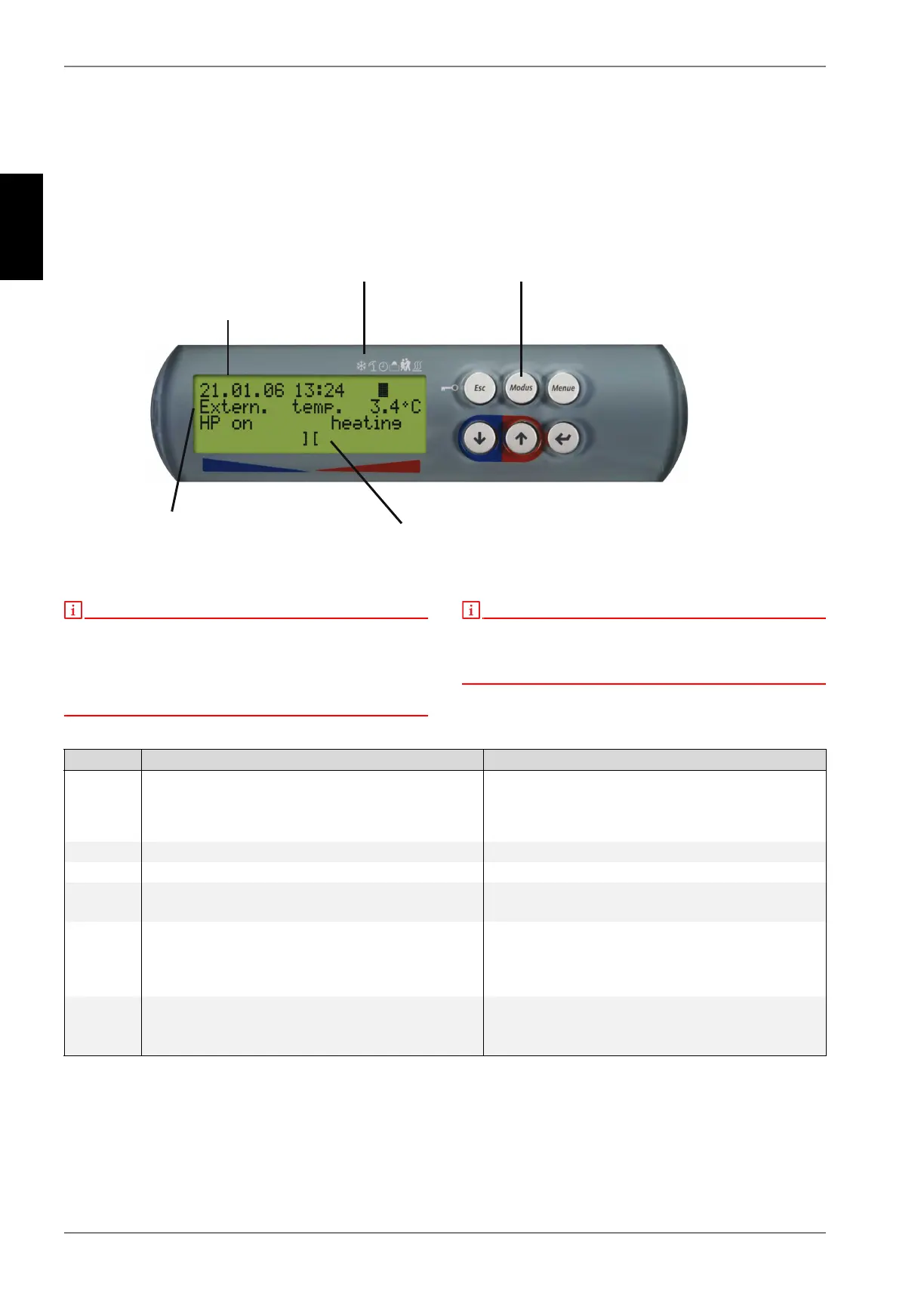

Fig. 4.1: Standard LC display - main display with operator buttons
NOTE
Contrast:
The display can be adjusted for contrast. Do this by depressing the
buttons (MENU) and (↵) at the same time until the adjustment process
has been completed.
Increase the contrast by simultaneously pressing the (×) button. Reduce
the contrast by pressing the (Ø) button.
NOTE
Keyboard block, child lock!
To prevent unintentional adjustment of the heat pump manager, press the
button (Esc) for approx. 5 seconds until KEY BLOCK ACTIVE appears on
the display. Cancel the keyboard block using the same procedure.
Table 4.1: Operator button functions
[FKDUDFWHUGLVSOD\
%DFNOLW
2SHUDWLQJPRGH
V\PEROV
%XWWRQIXQFWLRQV
6WDWXVGLVSOD\+3
OLQH
+HDWLQJZDUPHUFROGHU
LQGLFDWRUEDUOLQH
Button Standard display (Fig. 4.1 on p. 4) Change of setting (Chap. 8 on p. 7)
Esc  Activates or deactivates the keyboard block
 Acknowledges a fault
 Exits the menu and returns to the main display
 Returns from a submenu
 Exits a setting without saving changes
Operation  Selects the operating mode (see Chap. 5 on p. 5) No action
Menu  Jumps to menu No action
⇓  Shifts the heating curve downwards (colder)  Scrolls downwards between menu items on one level
 Changes a setting in a downward direction
⇑  Shifts the heating curve upwards (warmer)  Scrolls upwards between menu items on one level
 Changes a setting in an upwards direction
↵ No action  Selects a setting in the corresponding menu item
 Exits a setting and saves changes
 Jumps to a submenu
