OPERATOR’S MANUAL with Maintenance Information
Schematic
82

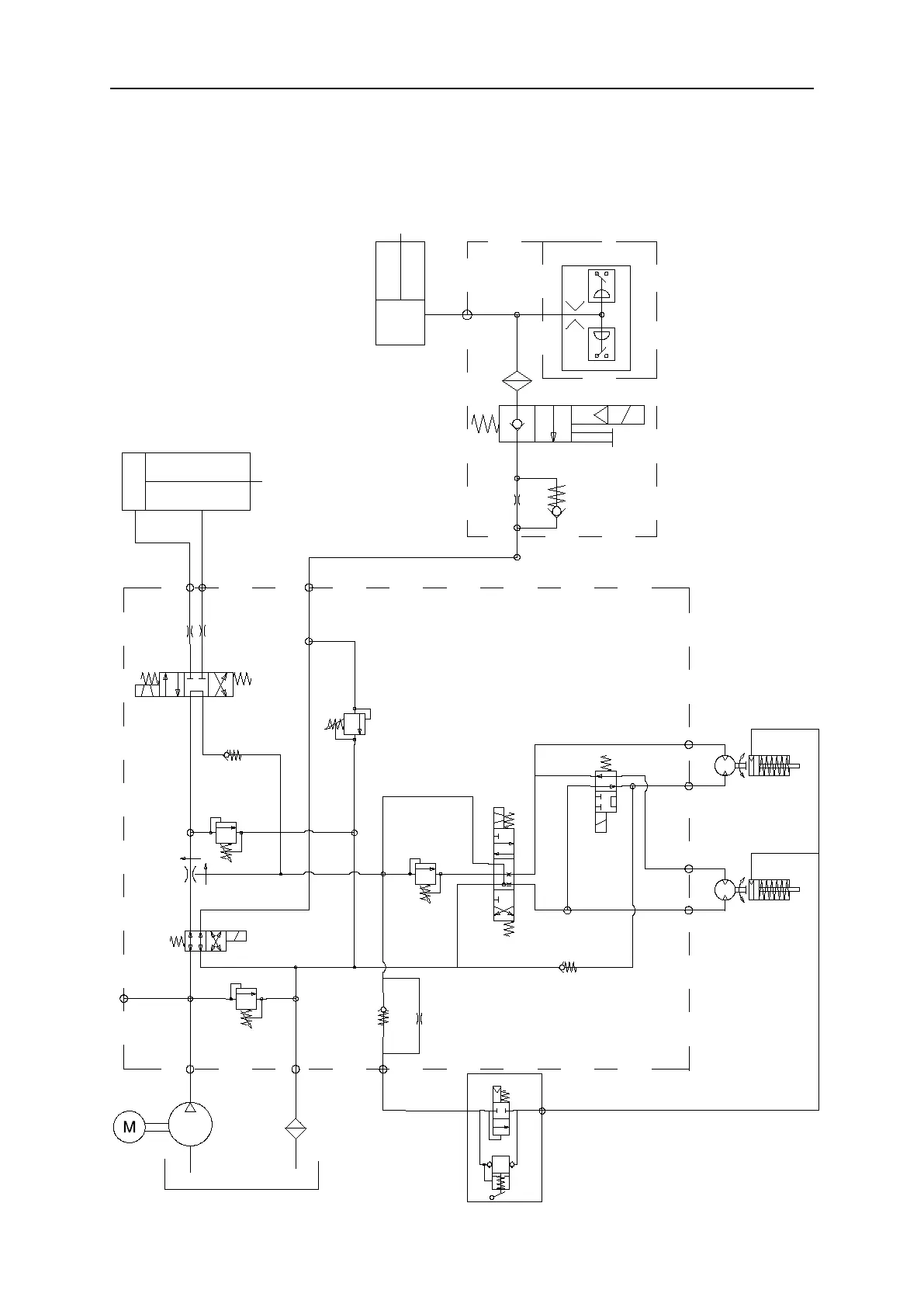

Hydraulic Schematic
JCPT0808HD JCPT1008HD JCPT1012HD
SV2
1mm
1mm
S1 S2
P
M
T
BRK
RV1
SV1
FR
RV4
CV2
RV3
CV1
1.1mm
SV4
SV3
D3
D2
D1
D4
L
P41
P42
CV2
1.5mm Lower valve
NBCY-1001A-11
235bar
3.45bar
Tank
Pump
5802-4-12
Valve 5805-0116R
Hand pump
5805-0412(960020A10)
Platform loading（Option）
Steer cylinder
Lift cylinder
120bar
RV2=130bar(JCPT0808HD)
RV2=160bar(JCPT1008HD)
RV2=210bar(JCPT1012HD)
