Dingo K9-3 Operation & Maintenance Manual
24
Dingo K9-3 Operation & Maintenance Manual
25
Item Qty Part Number Description
1 1 Chassis - Dash
2 1 511-000-012 Throttle / Choke Lever Assembly
3 2 043-000-043 Handle Grip Black
4 1 511-000-012 Throttle / Choke Lever Assembly
5 5 111-211-016 M6 X 16MM Hex Bolt Zinc H/T
6 4 121-121-000 M6 Hex Nut Zinc
7 6 132-211-000 1/4" Spring Washer Zinc
8 1 111-211-020 M6 X 20MM Hex Bolt Zinc H/T
9 1 043-000-044 Ignition Switch Petrol (K9-3/K9-4)
10 1 410-000-048 Hour Meter Round (K9-3/K9-4)
11 1 K93-030 K93 Dash Assembly Cover
12 2 131-121-000 Washer 6MM Flat 17MM OD ZP
13 1 043-000-047 Ignition Switch Key Petrol (K9-3/K9-4)

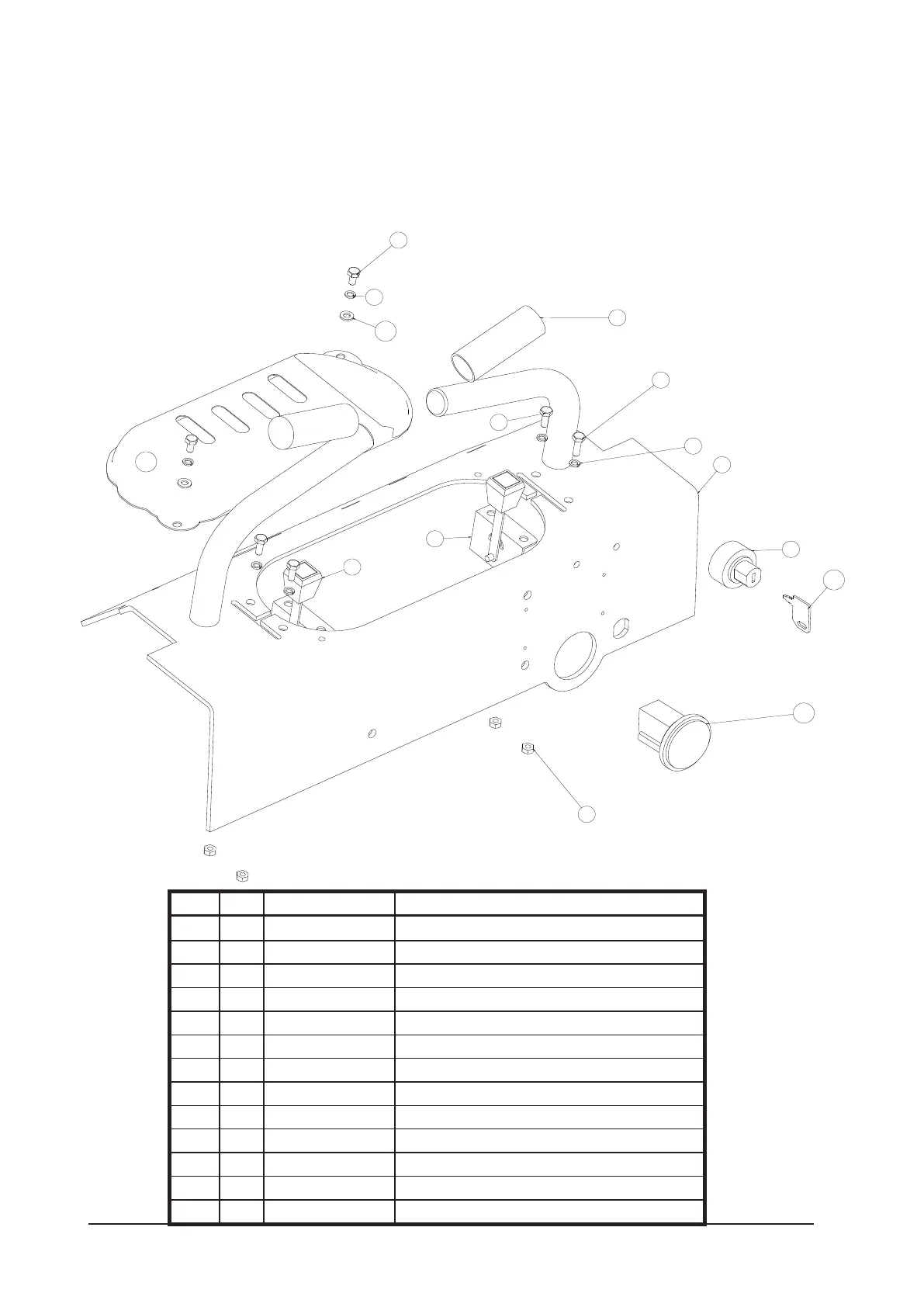

Dash Assembly & Part List
