DINGO K9-3-V User Manual

Dingo K9-3 Operation & Maintenance Manual
26
Dingo K9-3 Operation & Maintenance Manual
27

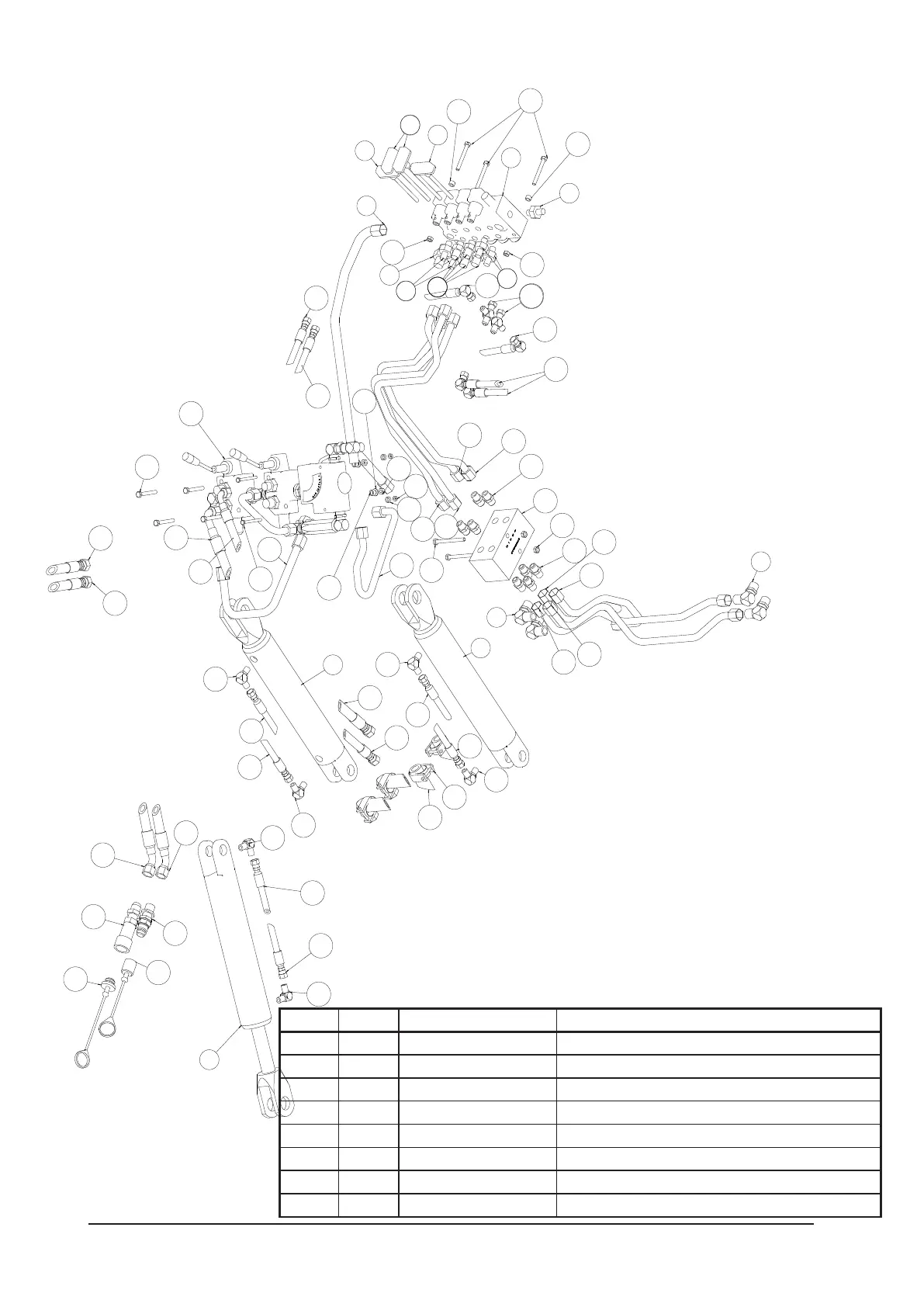

Hydraulic Assembly & Part List


















































































Item Qty Part Number Description
1 3 321-000-005 Lift Cylinder
2 1 330-003-008 Main Control Bank
3 4 315-797-500 C59-1414 Fitting
4 2 330-003-032 Short Handle
5 2 330-003-031 Long Handle
6 5 316-377-500 CR2-0614 Fitting
7 4 316-377-500 CR2-0614 Fitting
8 1 316-377-500 CR2-0614 Fitting
