DINGO K9-3-V User Manual

Dingo K9-3 Operation & Maintenance Manual
8
Dingo K9-3 Operation & Maintenance Manual
9
Specifications
General Specications (without operator and without attachments)
(Approximate Only)
Overall width 840mm-1040mm
Overall length (without attachment) 1565mm
Overall height 1200mm
Max. operating height (with standard bucket) 2080mm
Operating weight 700-800kg
Turning radius with standard bucket 1300mm
Safe Working load (=50% of tip load) 250 kg
- bucket (& 90kg operator)
(Lifting capacity up to 500kg with certain attachments)
Speed 0 - 6 km/hr
Angle of departure 20 degrees
Engine HP Kohler 22 HP
Perkins 20 HP
Wheel motor sizes 29 cu in
Wheel base 710-800mm
Drive chain ASA 60H (Heavy Link 3/4”)
Ground clearance 135mm
Tyre size 18 x 8.50 x 8 (4 ply) standard
Hydraulics 2 pump
Pump sizes Kohler 9 & 3 cc (3600 rpm)
Perkins 11.2 & 3.15 cc (3100 rpm)
System relief pressure (hydraulic) 3000psi (206 Bar)
Hydraulic reservoir capacity 60 litres
Hydraulic output 43 litres per minute
Filtration 25 micron
Standard bucket capacity 0.11 cu m
Standard bucket dump height 1240 mm
Reach fully raised standard bucket 600mm
4 in 1 bucket capacity 0.11 cu m
4 in 1 bucket dump height 1750mm
Reach fully raised 4 in 1 bucket 600mm
Chip bark bucket capacity 0.18 cu m
Height to hinge pin (std. bucket in highest position) 1680mm
Specications and design subject to change without notice.

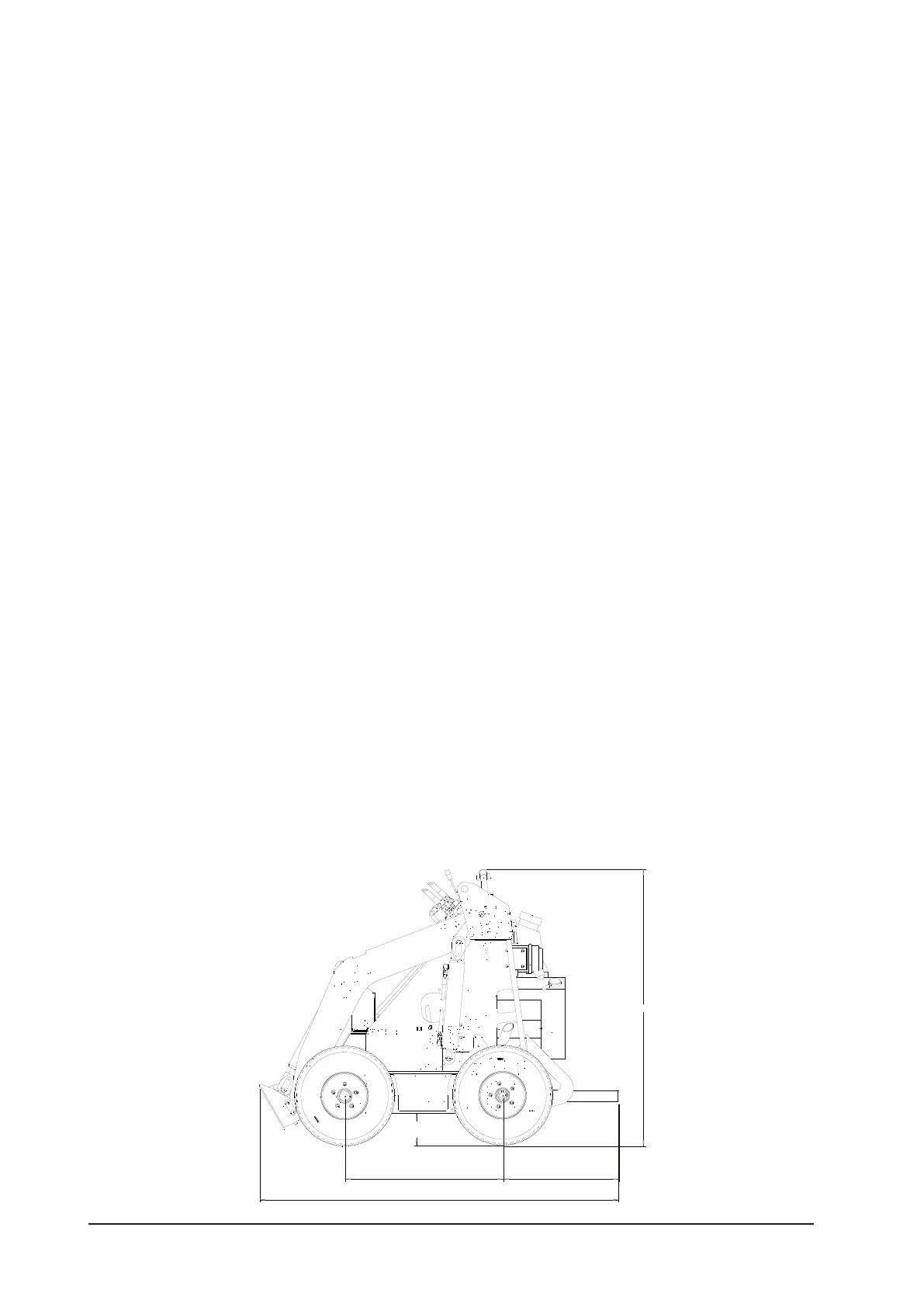

HEIGHT 1200mm
REAR OVERHANG
520mm
WHEEL BASE 710-800mm
LENGTH WITHOUT BUCKET 1565mm
GROUND
CLEARANCE 135mm

DINGO K9-3-V Specifications

General

Brand	DINGO
Model	K9-3-V
Category	Lawn and Garden Equipment
Language	English
