Diono Radian 3QXT+ - Detachable Rear-Facing Base

REAR-FACING
44
DETACHABLE REARFACING BASE INSTRUCTIONS
ONLY use rear-facing base on rear-facing installs.
1. Conrm car seat
is locked in its
unfolded position.

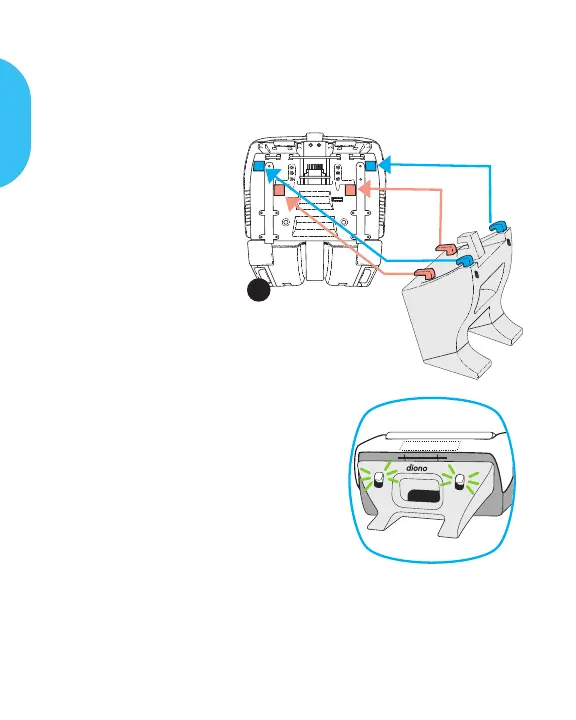

2. Insert hooks into
the aligned slots
and rotate the
base until hearing
an audible “click”.
Conrm base is locked
and does not move.
To remove, press release buttons
and pull top end outwards to
remove top section. Gently
detach base lower hooks from
seat bottom.
