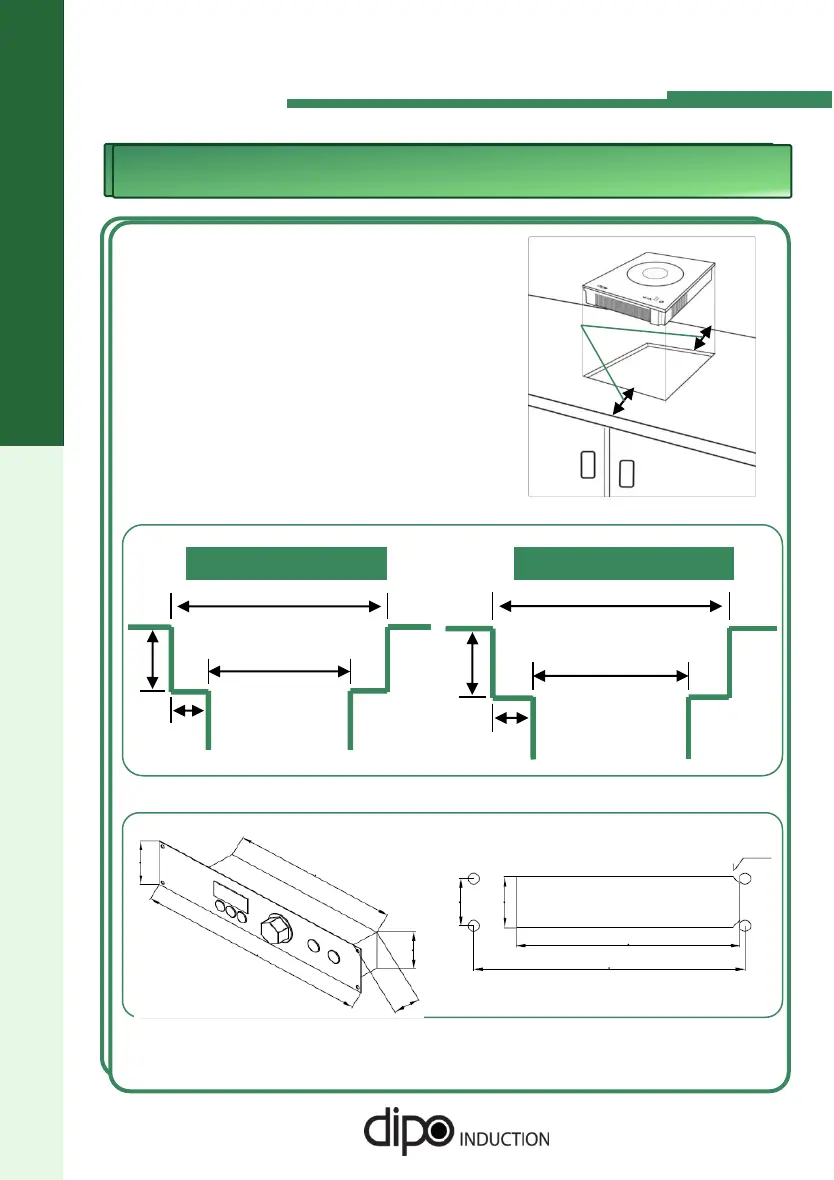

dipo INDUCTION BKP18-A - Installation; Cut-out Dimensions and Hole Sizes

22
INSTALLATION
Installation
BKP-A/BK-A Model Series
3/8”
14 1/4”
¼’
14 1/4”
¼’’
3/8’
11 7/8”
11 3/8”
1. Cut an opening as shown below.
2. For fan ventilation, 4” space is
required in the front and back side of
product.
If you don't want to cut a hole as shown, you can use our stainless
Trim Ring accessory. (Hole size with Trim Ring: 12’’ X 14 7/8”)
4’’
Left-Right Hole Size Front-Rear Hole Size
4. Controller Hole Size
3. Hole Size
9 1/4”
11 4/5’’
2 2/5’’
2’’
1 3/5”
2’’
11 2/5”
9 2/5’’
2 1/10’’
2-C2/5’’
