24

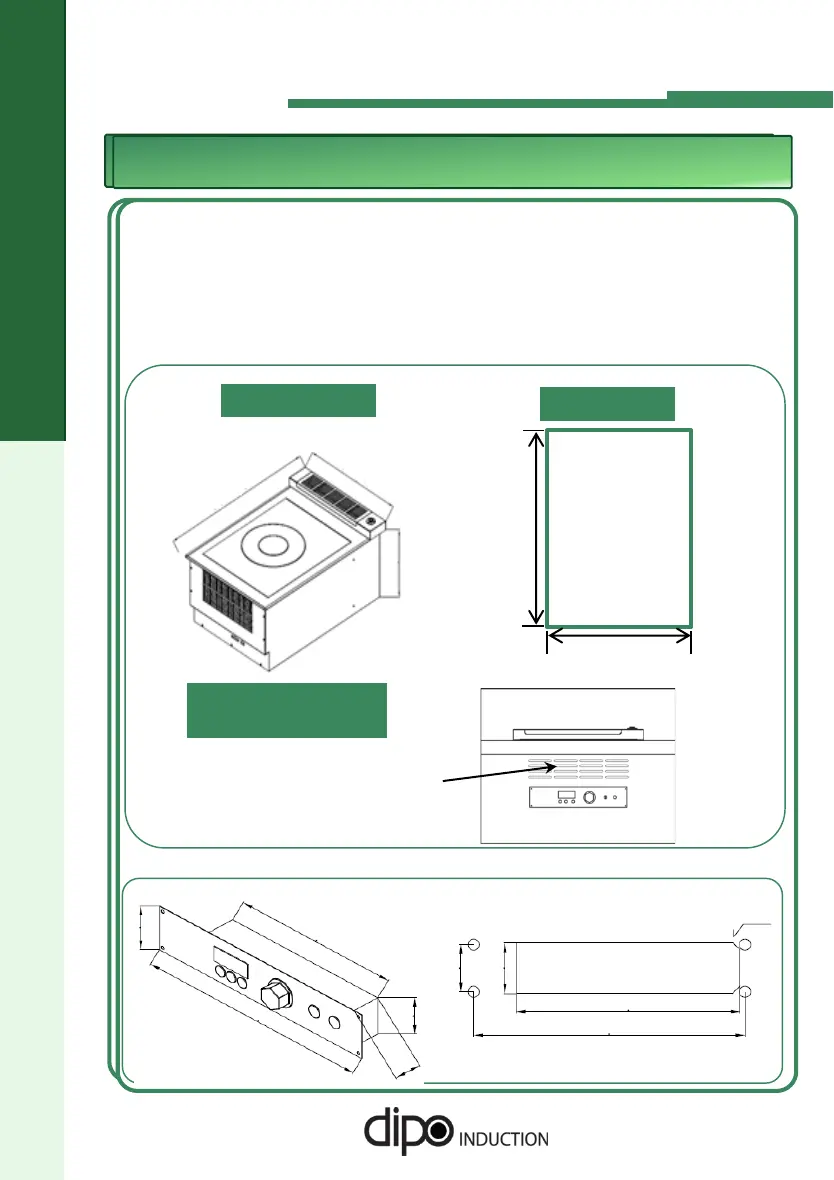

INSTALLATION
Installation
BK-E Series
Hole Size
5. Hole Size of Control Panel
Size of Product
585mm
385mm
Front Part Holes of
case for built-in
Holes
For sufficient ventilation
the holes as right
picture are required.
2. Space of 10cm (4”) and open louvers in front of the unit is required
for ventilation.
4. Cut-out size for Products
3. For Drop-in units, be sure the counter top is adequately reinforced
to bear the weight of the unit in operation. Additional support under
the unit may be required.
1. Match cut-out size to the product.
235mm
300mm
60mm
50mm
40mm
50mm
290mm
250mm
55mm
2-C10mm
400m
250mm
600mm
To Next Page
