25

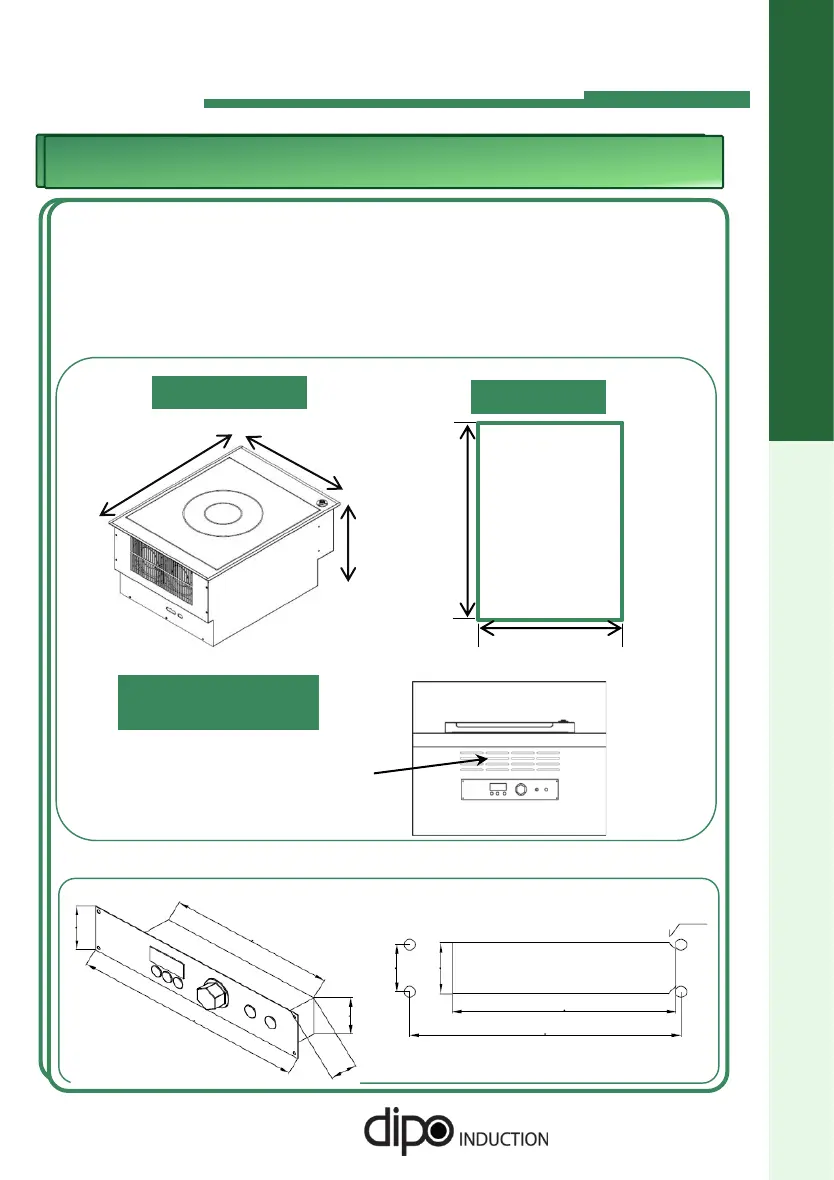

INSTALLATION
Installation
BKS-E Series
Hole Size
5. Hole Size of Control Panel
Size of Product
515mm
385mm
Mounting of controls
and louvers
Louvers
For sufficient ventilation
the holes as right
picture are required.
2. Space of 10cm and open louvers in front of the unit is required for
ventilation.
4. Cut out size for Products
3. For Drop-in units, be sure the counter top is adequately reinforced
to bear the weight of the unit in operation. Additional support under
the unit may be required.
1. Match cut-out size to the product.
235mm
300mm
60mm
50mm
40mm
50mm
290mm
250mm
55mm
2-C10mm
400mm
530mm
250mm
To Next Page
