Directechs DB3 - Wiring diagram

9
403.GM10 4.16 2011 Chevrolet Cruze
© 2019-03-01 Directed. All rights reserved.
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).

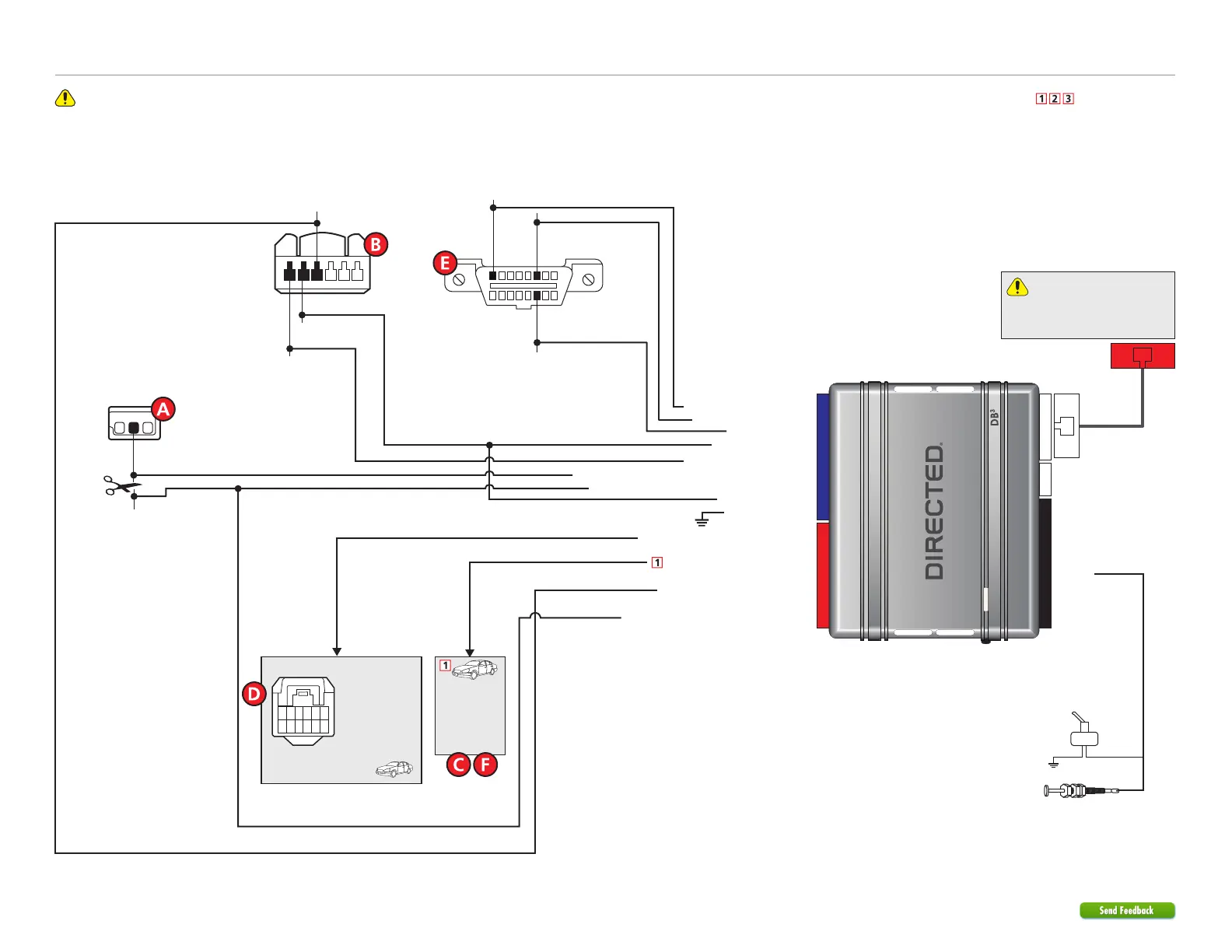

Wiring diagram
16
8
9
1
1412
10
42
(-) RAP Off Output: Green/Black: 2
(-) Parking Light Output: Black/White: 1
1 2 3
Immo.
Data: pin 2
Single Wire CAN: Lt. Green: 1
HS CAN Low: Tan : 4
HS CAN High: Tan/Black: 3
HS CAN Low:
Tan or White, pin 14
HS CAN High:
Tan/Black or Blue, pin 6
SW CAN: Green, pin 1
Cut
Immo. Data Interrupt (connector side): Orange/Red: 10
Immo. Data Interrupt (vehicle side): Yellow/Red: 11
(+) 12V Input: Red: 13
(-) Ground: Black: 14
(+) 12V Input: Brown: 7
(+) Ignition Output: Yellow: 8
(+) Accessory Output: Gray/Black: 7
Immo. Data (vehicle side): Orange/Black: 11
1 5432
(+) Ignition: Pin 1
(+) 12V: Pin 2
(+) Accessory: Pin 3
Ignition Switch
(black or white 6-pin connector
at ignition switch)
Immobilizer
Control Module
(violet 3-pin
connector
below ignition
switch)
(-) Driver
Door Trigger
6
1 2 3 4 5
7
6
121198 10
Headlight Switch
(black 12-pin connector)
(-) Parking Lights: Pin 3, Pin 5 or 7
Refer to the
Vehicle
connections
section for the
corresponding
connector, pin
and wire color
of your vehicle.
Refer to the
Vehicle
connections
section.
OBDII Diagnostic
(connector side view)
You can connect to
either a XL202 RFTD OR a
SmartStart module. Refer to the
SmartStart/XL202 Installation
Notes for more information.
6: White/Black:
(-) Hood
Remote Start Safety
Override Switch
Hood Pin
Note: The hood pin is
only required on
vehicles that are not
equipped with a
factory hood pin.
