Directechs DIRECTED DS3+ - Optional Starter Disable Connection

10
933.TL8 2.32.195.3 2018 Lexus RX 450h (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.

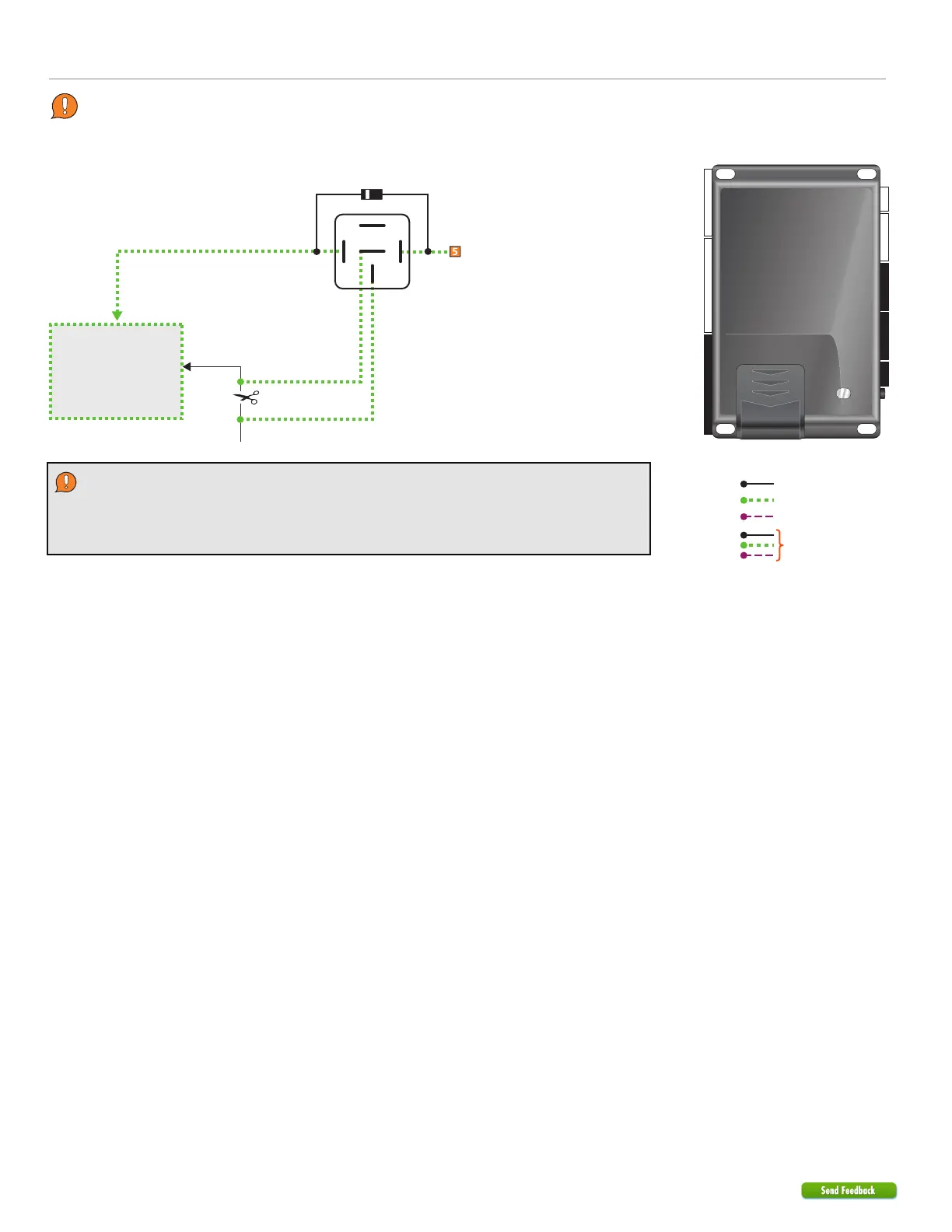

Optional starter disable connection
22 812
4 2442
Refer to the
Vehicle connections
section for wire
and connector
details.
(-) Ground When Armed (GWA) Output: Blue/White: 2
(+) Ignition
Security Only
Mandatory Connections
Remote Start Only
Legend:
Remote Start + Security
1A Diode (1N4002+)
Starter (connector side)
Starter (vehicle side)
Cut
86 85
30
87a
87
Important: When flashing your module for Security Only, the Ground When Armed (GWA)
function is pre-configured. When flashing your module for Remote Start & Security, you must
manually assign the designated output to Anti Grind (AG) Starter Kill.
(Applicable to CORE 194+.)
When using an external relay, use a 1N4002 diode or larger.
