SmartStart/XL202 installation notes

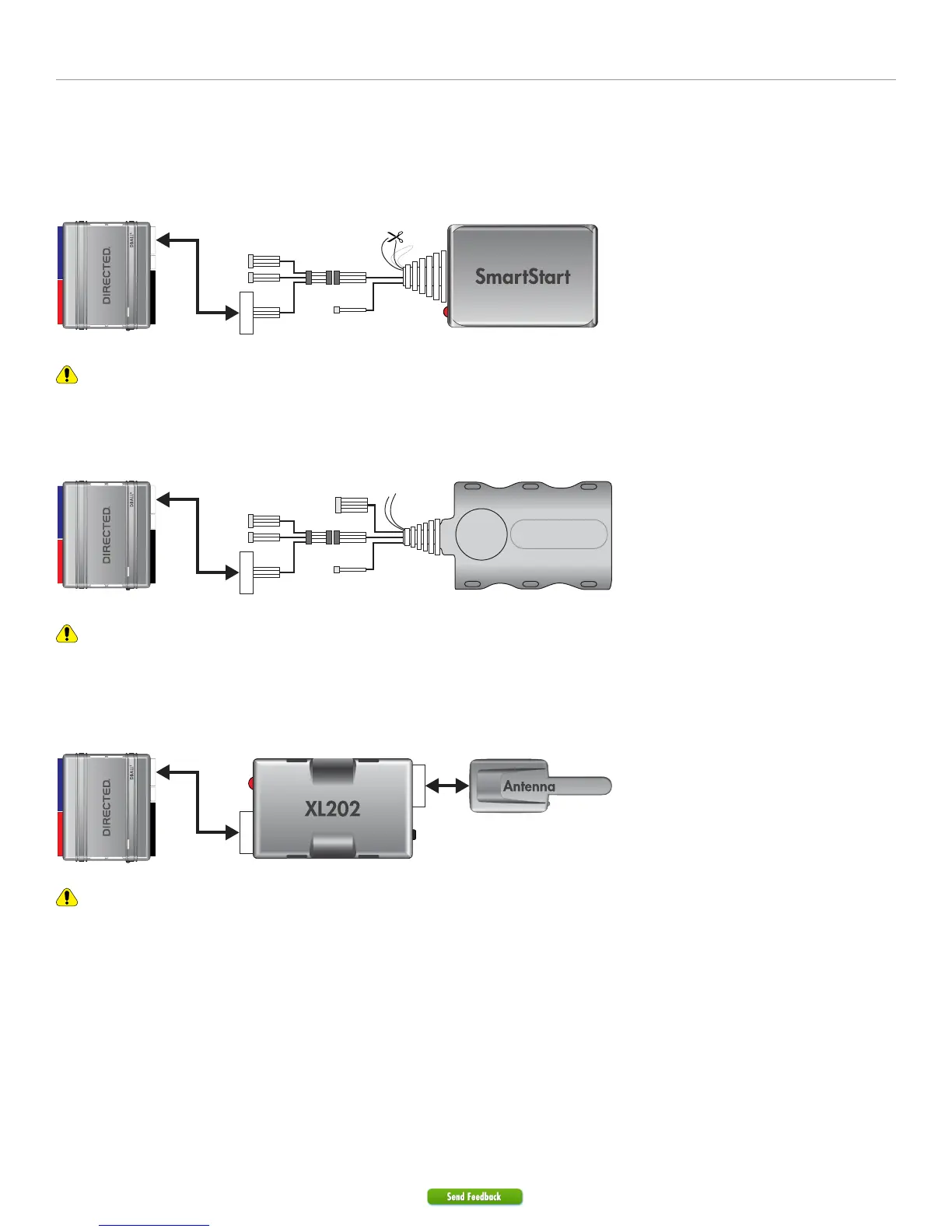

The DB3 Range Extender Ready (RXT) solution offers two (2) configuration options to control your system: RF System or SmartStart
(both sold separately). This section provides specific installation information for SmartStart and XL202.
SmartStart revision A
SmartStart is optional and not included. It MUST be purchased separately.
SmarStart
Cable
D2D (4 pins, white)
4 pins
2 pins,
not used
Configuration wires (White & Brown or Blue)
Cut Brown or Blue loop
1412
10
42
SmarStart
Cable
D2D (4 pins, white)
4 pins
2 pins,
not used
Configuration wires (Gray & White)
Connect Gray wire to (-) Ground
1412
10
42
5 pins
THIS SIDE UP
D2D
XOVER Cable
1412
10
42
SmartStart revision B
SmartStart is optional and not included. It MUST be purchased separately.
SmarStart
Cable
D2D (4 pins, white)
4 pins
2 pins,
not used
Configuration wires (White & Brown or Blue)
Cut Brown or Blue loop
1412
10
42
SmarStart
Cable
D2D (4 pins, white)
4 pins
2 pins,
not used
Configuration wires (Gray & White)
Connect Gray wire to (-) Ground
1412
10
42
5 pins
THIS SIDE UP
D2D
XOVER Cable
1412
10
42
RF System
The optional XL202 and antenna are not included and MUST be purchased separately.
SmarStart
Cable
D2D (4 pins, white)
4 pins
2 pins,
not used
Configuration wires (White & Brown or Blue)
Cut Brown or Blue loop
1412
10
42
SmarStart
Cable
D2D (4 pins, white)
4 pins
2 pins,
not used
Configuration wires (Gray & White)
Connect Gray wire to (-) Ground
1412
10
42
5 pins
THIS SIDE UP
D2D
XOVER Cable
1412
10
42
RF System & PKE combination
Refer to the Passive Keyless Entry (PKE) Installation Guide (N2102T) for detailed wiring information.
RF System, PKE & SmartStart BT combination
Refer to the Passive Keyless Entry (PKE) Installation Guide (N2102T) for detailed wiring information.
The modules must be connected in a specific order. Refer to “Module programming” for more information.
1. Use the D2D Crossover (XOVER) cable that is provided with XL202, and NOT the one in the DB3 package.
2. The modules must be connected in a specific order. Refer to “Module programming” for more information.
The modules must be connected in a specific order. Refer to “Module programming” for more information.
