Directed Electronics Responder LE User Manual

5
© 2009 Directed Electronics. All rights reserved.

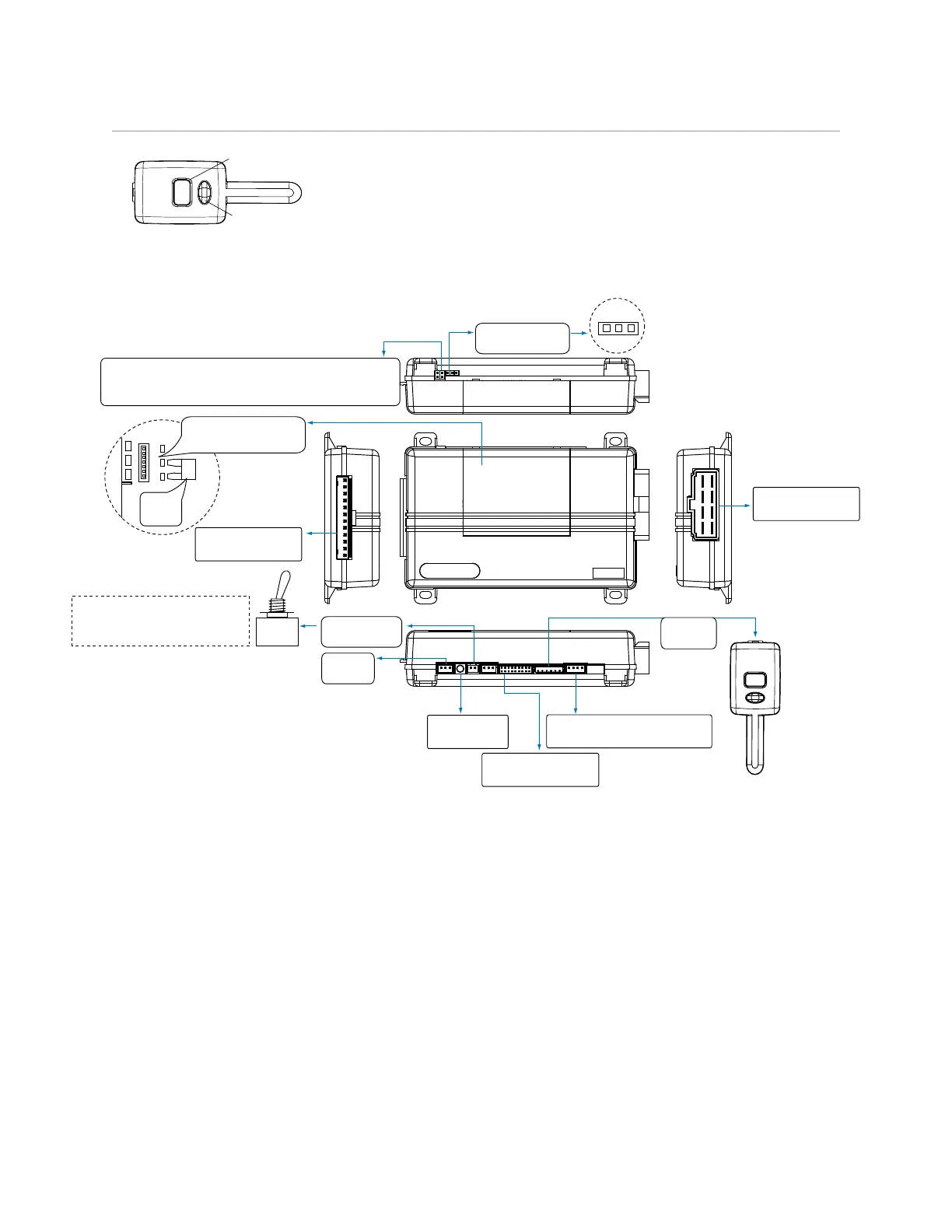

Wiring Diagram
Valet switch
LED
Control button
Status LED
Control Center
Control Center
Control CenterControl Center
Control Center
Valet switch
LED
Control button
Status LED
Control Center
Status LED
Control button
Control Center 6211T
CPU1
10A FUSE
MINI ATM
RPN: 8540
LIGHT FLASH POLARITY
(10A (MAXIMUM) FUSE JUMPER)
+ -
58 7 6
1234
Bitwriter
Port
Neutral Safety
Switch
Horn Input
Polarity Jumper
1
10 9 8 7 6
12345
1
1 8
51
1 3
10
12
18
10
9
1
1 12
D2D Port (for external
Xpresskit interface module)
10A FUSE
MINI ATM
RPN: 8540
LIGHT FLASH POLARITY
(10A (MAXIMUM) FUSE JUMPER)
+ -
ON
IMPORTANT! Neutral Safety
switch must be plugged in
and in the ON position
D2D jumpers; Factory setting is horizontal position.
Most Xpresskit modules use this setting, check the
Xpresskit installation guide for the specific setting.
RF Port
for IVU
Control
Center
Temperature
Sensor
+ -
Main Harness (H1)
(see wiring tables)
H2 Harness
(see wiring tables)
Remote Start (H3)
(see wiring tables)

Directed Electronics Responder LE Specifications

General

Brand	Directed Electronics
Model	Responder LE
Category	Car security
Language	English
