CHAPTER 3 - Connections for TV and Auxiliary Equipment
103
DIRECTV Plus
®
DVR
DIRECTV Plus
®
DVR
Television
Television
Surround System
Surround System
VCR/DVD Burner
VCR/DVD Burner
Connections

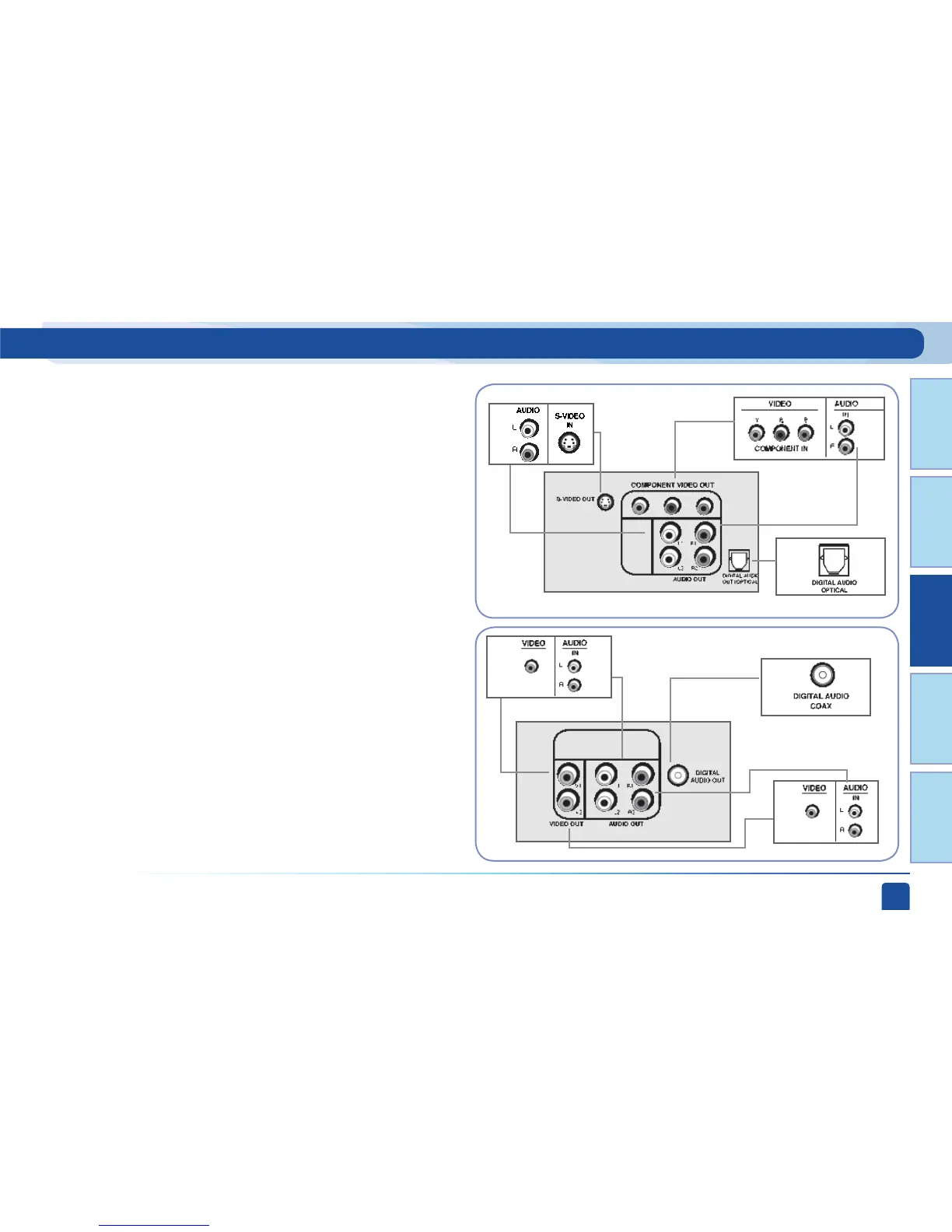

Here is an example of a TV that has an S-video connector as the
best video input and RCA audio connectors as the best audio input
and a surround sound system with a digital audio optical connector
as the best audio input:
Example: TV with S-Video Connector
Here is an example of a TV that has RCA connectors as the best
audio/video inputs and a surround sound system with a digital audio
coax connector as the best audio input:
Example: TV with RCA Connectors
This example also shows using a VCR or DVD burner with RCA audio
and video connectors.
This example also shows using a VCR or DVD burner with RCA audio
and video connectors.
