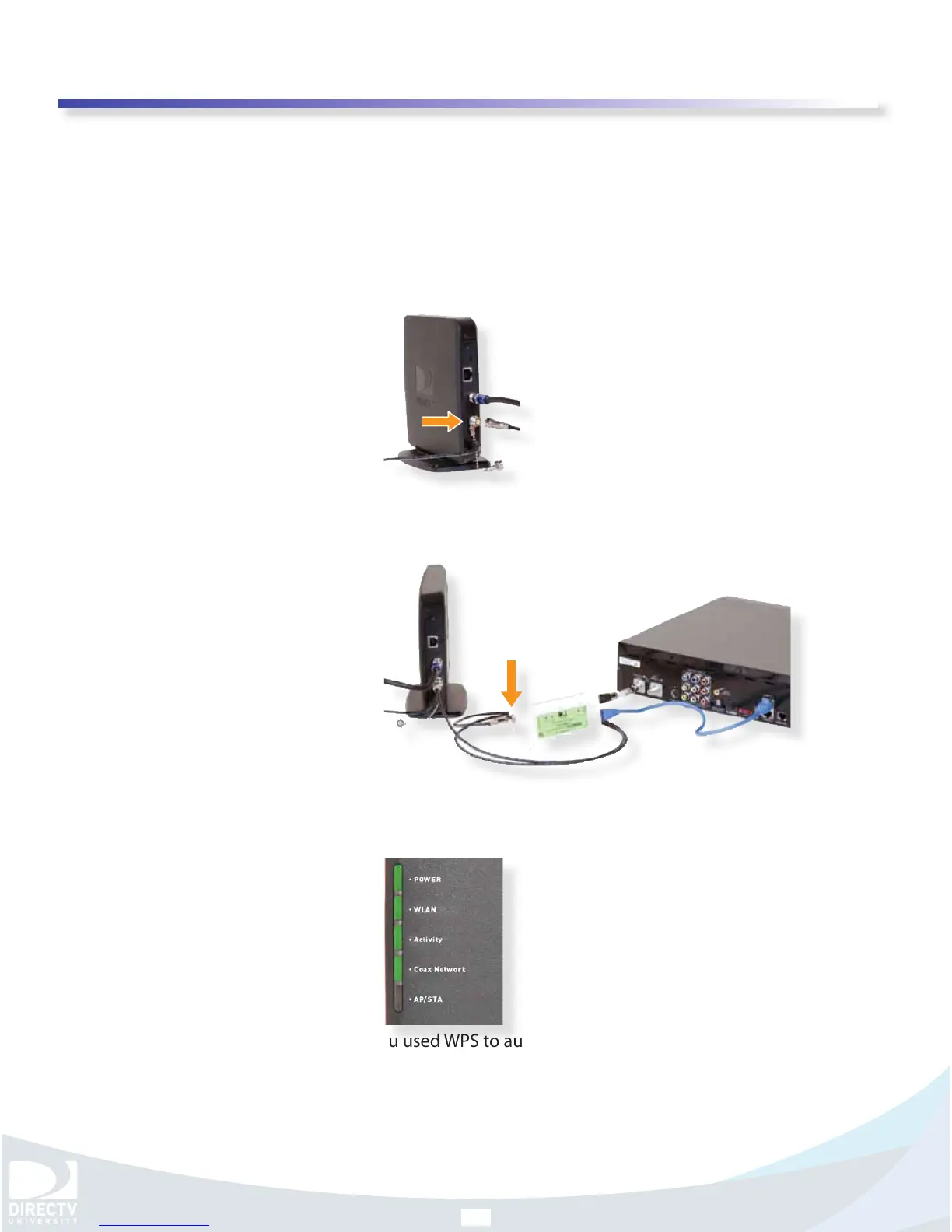

Installing a Wireless Cinema Connection Kit
DIRECTV Whole-Home DVR Service Compatible with
Connected Home Adapter Connection
3. Using the enclosed coaxial cable, connect one end to the co-
axial connector on your W-DCCK device labeled “SAT Rcvr”.
4. Connect the other end of the coaxial cable to the coaxial con-
nector on your Connected Home Adapter labeled “Towards
LNB”.
5. The POWER, Activity and Coax Network LEDs on the W-DCCK
device should light up. Wait for the POWER LED to stop ash-
ing.
If you used WPS to automatically set up your wireless connection,
go to the Completing the Setup section.
If you cannot use WPS or are unsure if you have WPS, go to the
“Manual Wireless Setup” section to manually establish your wire-
less connection.
