DirecTV Wireless Cinema Connection Kit User Manual

Notes DIRECTV Wireless Cinema Connection Kit
TM
DIRECTV Field Operations Training
©DIRECTV 2011
DIRECTV CCK
Version1.3.0
6
What is a Wireless Cinema Connection Kit

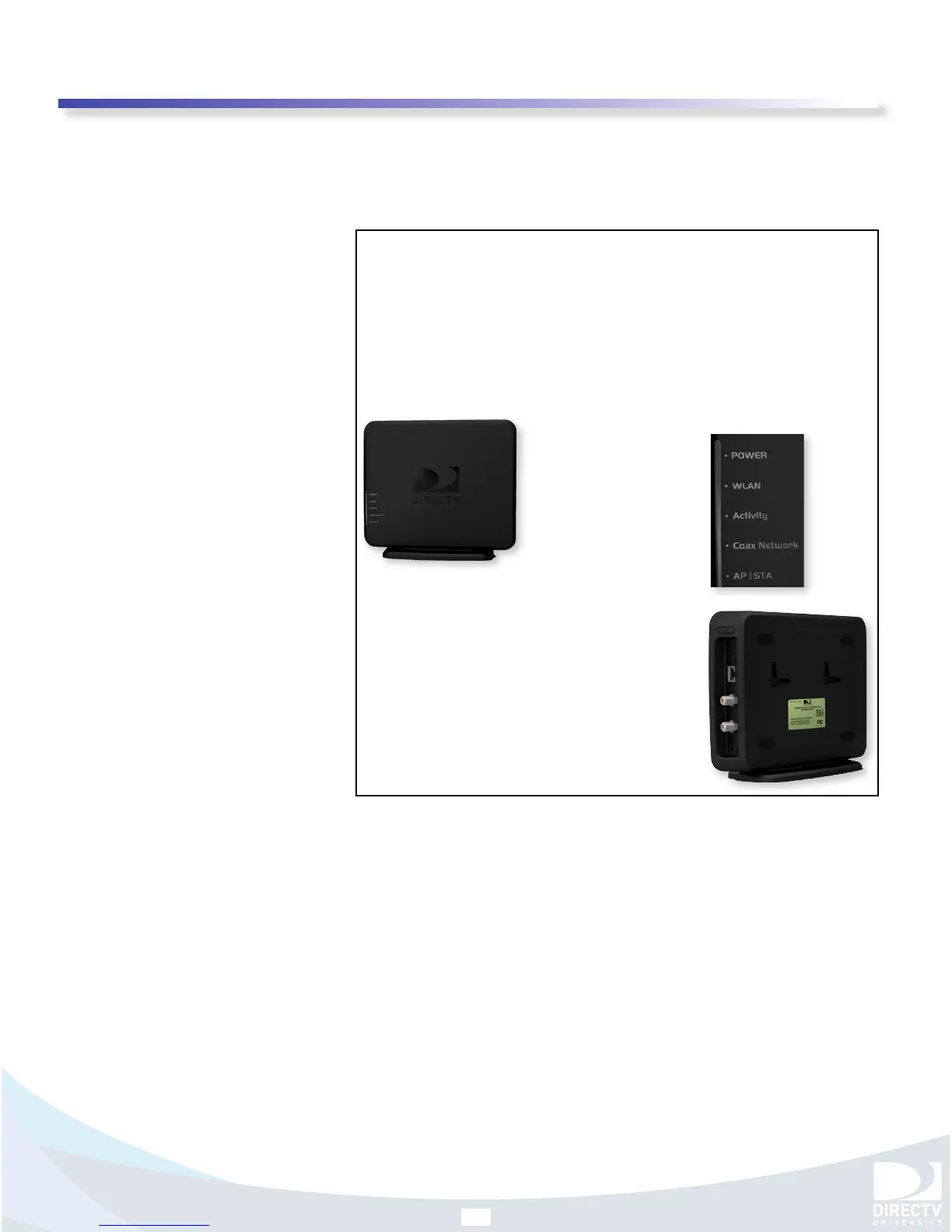

A Closer Look - Product Spec Sheet
Size and Weight
System
Requirements
Wireless Router
Compatibility
LED Indicators
Ports and Interfaces
External Power
Environmental
Requirements
Part Number
Packaging
Without Base:
Height: 6.38 Inches (162 mm)
Width: 7.72 Inches (196 mm)
Depth: 1.46 Inches (37 mm)
Weight: 12.76 Ounces
AP/STA (Future Functionality)
Ethernet
Towards LNB (Coax)
SAT Rcvr (Coax w/ Cap)
Reset Button
WPS Button
External 18-Watt Power Supply
Input: 120V @ .8A, 60Hz
Output: 12V @ 1.5A
Dimensions: 4.25 x 2.05 x
1.34 Inches
Operating Temperature: 32º -
122º Fahrenheit
Storage Temperature: -49º -
158º Fahrenheit
Relative Humidity: 5-85% non-
condensing
DECAW1MR0-01
HD DVR
2.4 GHz
802.11a/b/g/n
WPS Capable (Optional)
Power
WLAN
Activity
Coax Network
AP/STA
Depth: 2.6 Inches
Width: 7.99 Inches
Height: 11.89 Inches
Weight: 3.3 Pounds
What’s in the
Box
Power Adapter
Ethernet Cable
Coaxial Cable
Base/Wall Mount Kit
Manual
With Base:
Height: 6.77 Inches (172 mm)
Width: 7.72 Inches (196 mm)
Depth: 3.3 Inches (37 mm)
Weight: 13.74 Ounces
So what do some of these specs mean to you?
On the next few pages, we will take a closer look at what these
things mean, and how they apply to you.

DirecTV Wireless Cinema Connection Kit Specifications

General

Brand	DirecTV
Model	Wireless Cinema Connection Kit
Category	Accessories
Language	English
