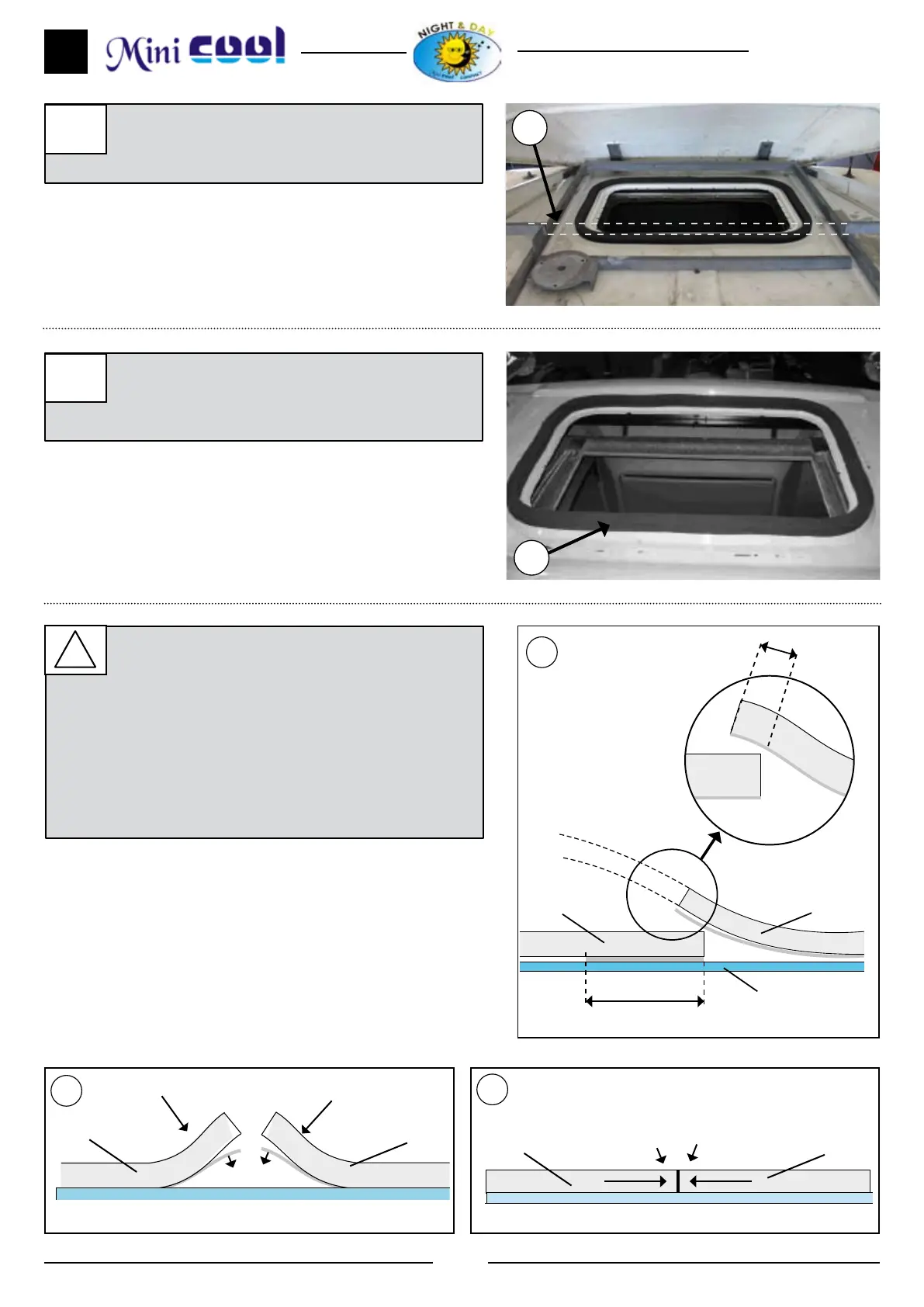

Dirna Minicool Compact - Installation: Gasket Application; EPDM Gasket Sealing

dirna, s.a.
20
EN
4
Gasket
Gasket
Remove
Gasket
Gasket
4a
Gasket
Cabin roof
Gasket
100 mm Approx. (protection paper)
5 mm
A
4
In case vehicle has a spoiler with central bar,
cut the bar shown by dot lines in order to
install equipment.
4a
Glue EPDM gasket around hatch hole (see de-
tail for cutting end join edges)
HOW TO CUT EPDM GASKET TO AVOID
WATER FILTRATION INTO THE CABIN
A- Glue gasket, keeping 100 mm of protection
paper at each side.
B- Remove the two pieces of paper.
C- Glue by pressing both ends.
!
B
C
