Dirna Minicool Compact User Manual

dirna, s.a.
29
EN
NA

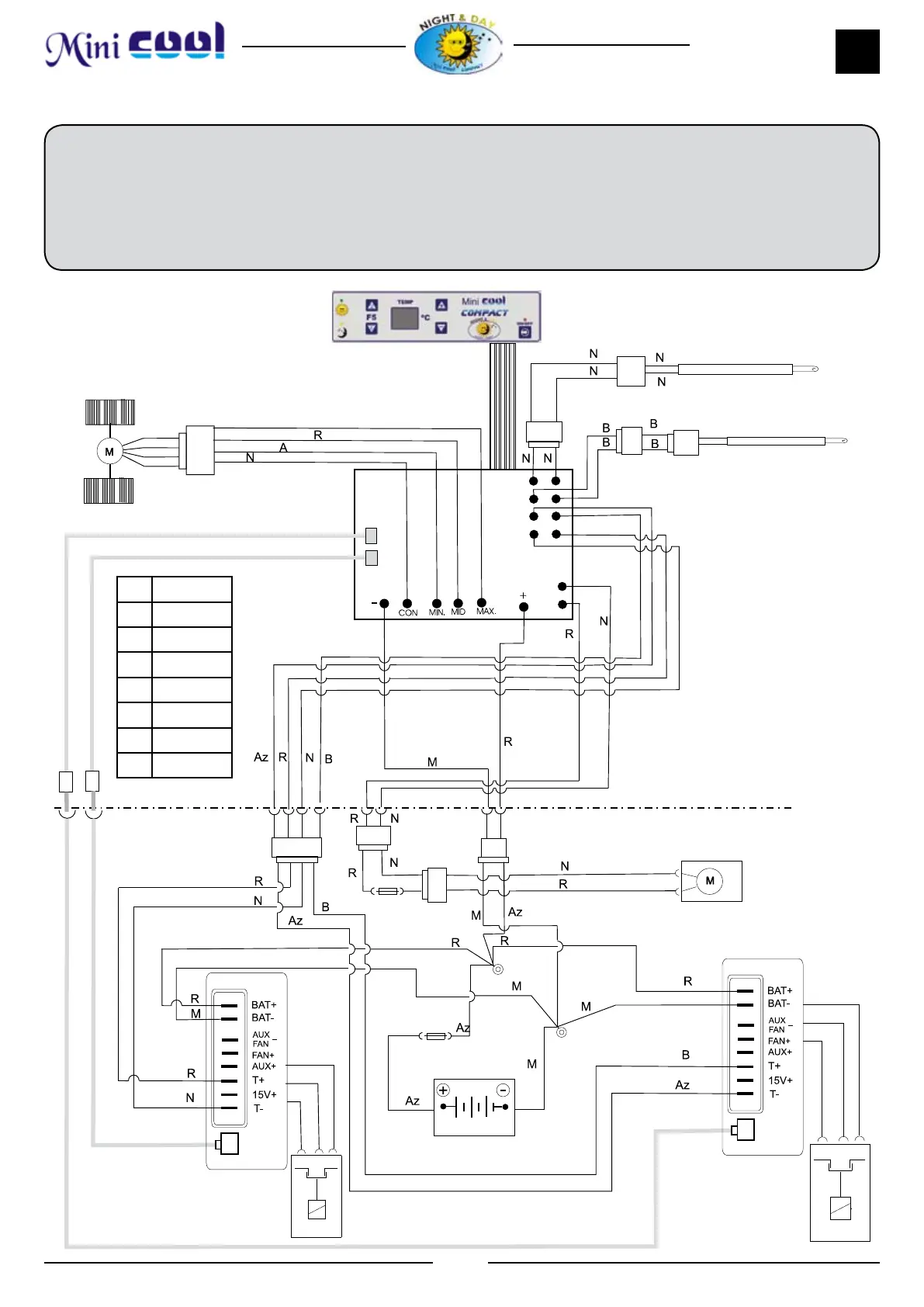

Electric wiring
Blower
Electronic module
wiring communication
Compressor
electronic
module
Compressor
Compressor
50 A. Fuse
Fan
Wiring strip
Temperature probe
Antifreeze probe
10 A. Fuse
IMPORTANT WARNING!
Make sure polarities are not inverted when connecting equipment to battery. If this happens, electronic
control will emit discontinuous whistles. Do not touch any key on panel or on equipment control since
irreversible damages could occur. When hearing these discontinuous signals, disconnect equipment from
battery and check connection polarity.
Battery
Az Blue
N Black
R Red
V Green
B White
A Yellow
Na Orange
M Brown
