Dirna Minicool Compact User Manual

dirna, s.a.
28
EN
Detailed instructions
on power wiring assembly
IMPORTANT: Due to the equipment’s complex electronic regulation system, the socket must
be made directly on the vehicle’s battery.
IMPORTANT: For start up please see the User’s Manual.
1
wiring for
power supply
2
2
2
+
-

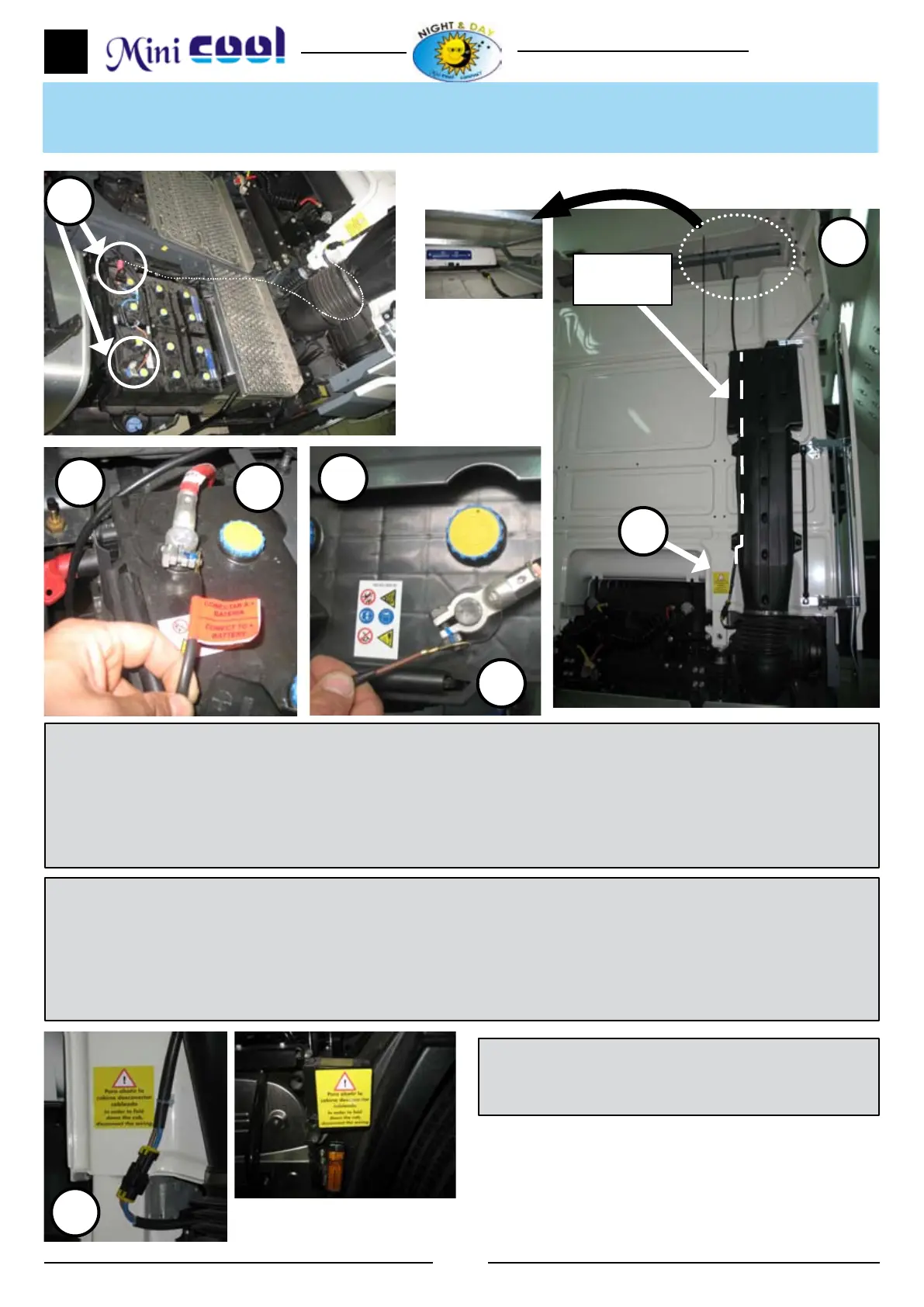

1- Connect the upper power supply cable to the back of equipment and lead it through the back of the cab whilst
sticking down the plastic clips and securing it with anges.
2- Connect the lower power supply cable to the battery by leading it through the original cable route, secured
with anges, to the back of the cab, to connect it with the upper power supply cable. WHEN CONNECTING
THE CABLES LEAVE A SUFFICIENT DISTANCE TO PREVENT THEM BREAKING DUE TO MO-
VEMENTS OF THE CAB!!
3- Place danger stickers on the cable join and
on the cab elevation device.
3
3
