dirna, s.a.
27
EN
M8 x125x100 / 120 Studs
Cabin roof
EPDM Joint 25 mm.
ø 7 Rubber washer
wide wing at washer ø 8
M8 Nut
M8 Nut
Wide wing at washer ø 8
Fastening support
Wide wing at washer
M8 self-blocking nut

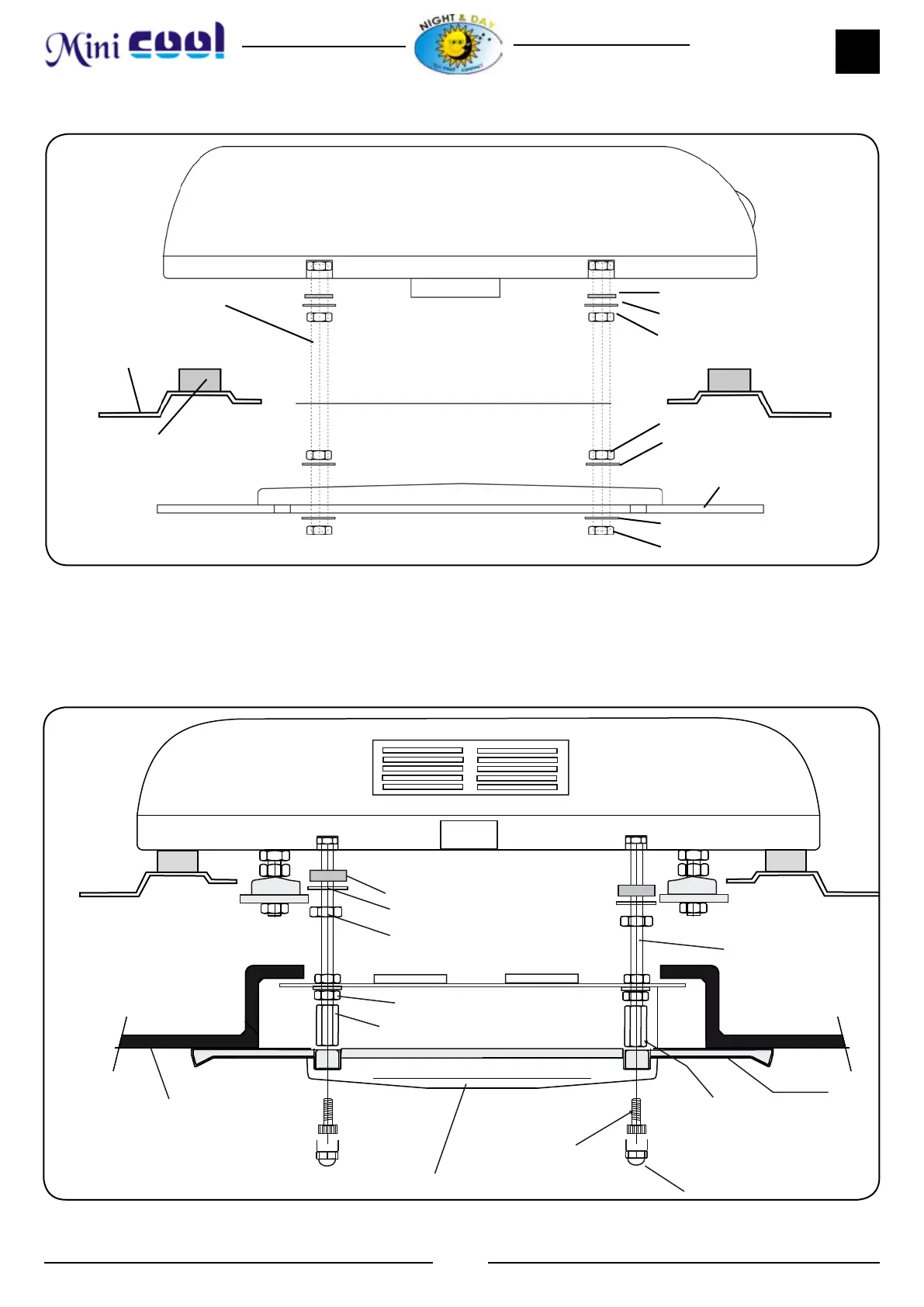

Exploded side view to SUPPORTS fastening
Exploded Rear View to CONSOLES fastening
M6 Nut
Ø6 Wide wing at washer
Rubber washer Ø6
Upholstery
Front with windows
(4) M6 protection caps
M6 Studs
Console
Lower part of spacer must be
at 1mm. with upholstery
6/100x15 allen
M6 Nut
M6 Hexagons
