Dirna Minicool Compact User Manual

dirna, s.a.
26
EN
M6 Hexagons
Upholstery
1 mm
Approx.
Base Minicool
(A)
15

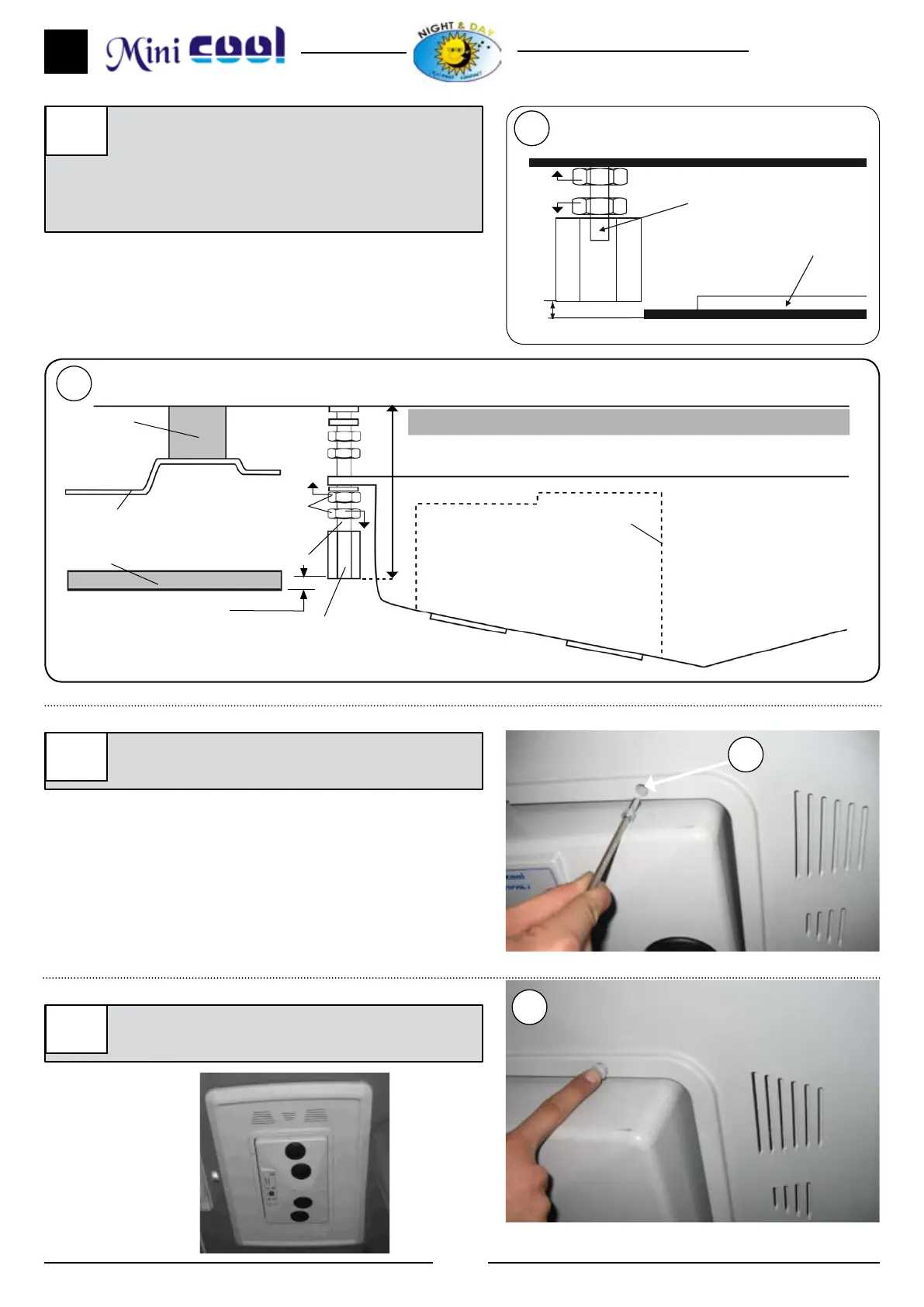

Place M6 nut (A) after nut fastening front on
each stud. Place M6 hexagons screwing them
until 1 mm is left above upholstery. Unscrew
M6 nuts (A), mentioned under this point, until
they touch hexagons and tighten against these.
15
front with louvers
Upholstey
1 mm.
EPDM
Gasket
Cabin roof
Hexagons M6
Nut M6
Stud M6
15
Unit base
(A)
Air ducts
Foam Gasket
16
Place console using (4) M6/100x15 allen head
screws bolts.
16a
Place console using (4) M6/100x15 allen head
screws bolts.
16
16a
(D)
