Dirt Devil Swivel Glide Vision User Manual

Diagram 1
Place upper handle onto upright.
Diagram 2
Align upper handle, pushing into place.
Diagram 3
Back of upright: secure handle with 2 supplied screws.
4
1
3
4
6
8
10
5a.
5a.
9
14
15
17
18
21
24
20
22
Fig. 1
Fig. 2
7
19
16
12
HOW TO ASSEMBLE
HOW TO ASSEMBLE TOOL REQUIRED: PHILLIPS SCREWDRIVER
1. Stand unit in upright position and place upper handle onto upright (Diagram 1).
2. Push upper handle onto upright, aligning upper handle with handle opening (Diagram 2).
3. TWO screws (supplied) enter from top of upright to secure handle (Diagram 3).
2 screws enter from
top of upright

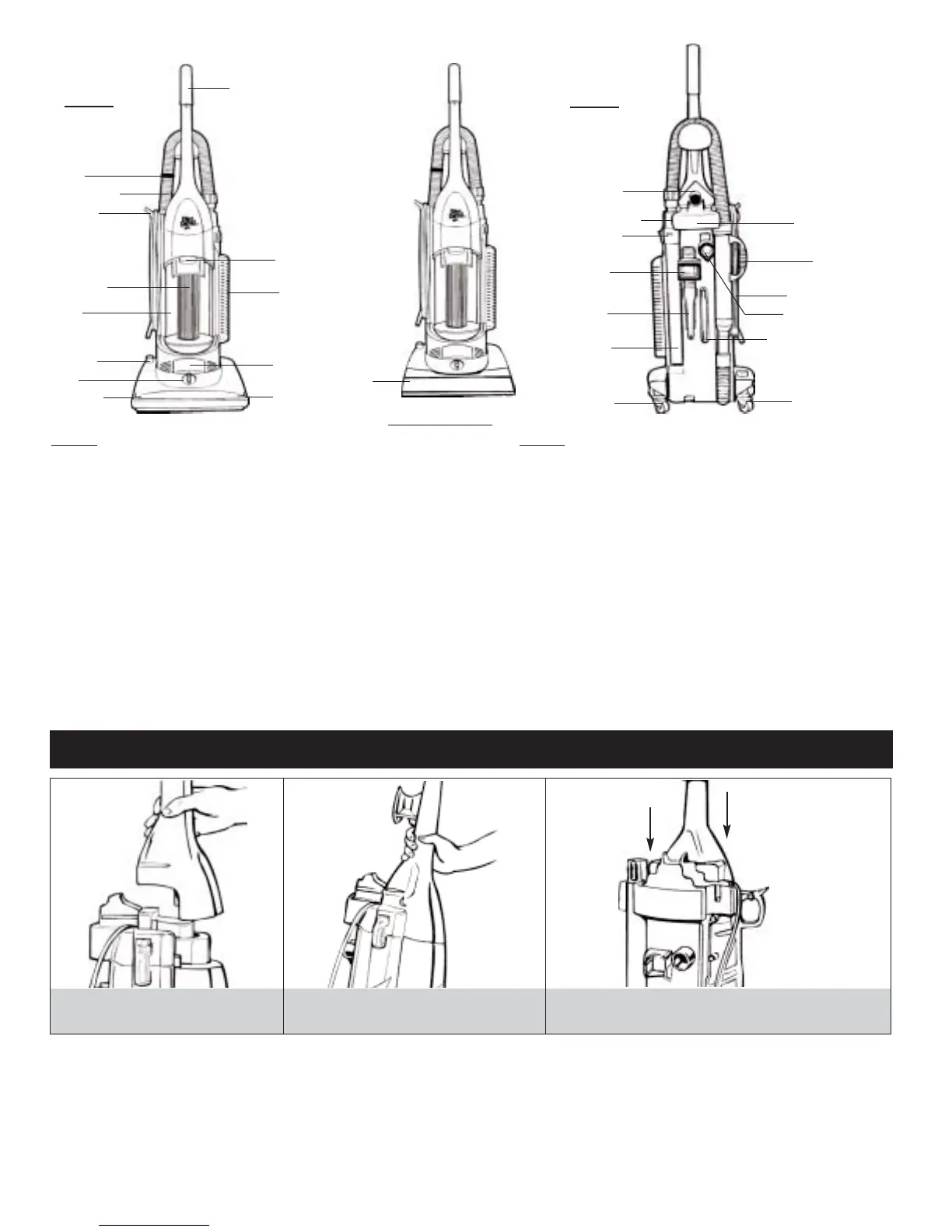

Fig 1
1. Handle
2. Dirt Container Release Lever
3. HEPA Filter
4. Headlight
5a.*Power Edger
™
slots w/Wrap Around Bumper (Optional)
5b.*Scuff Guard
™
Bumper (Optional)
6. Carpet Height Adjust Knob
7. Handle Release Pedal
8. Dirt Container
9. PERMA FILTER
®
with CleanStream
™
Filtration in
Dirt Container
10. Cord Clip
11. Stretch Hose
12. Hose Anchor
Fig. 2
13. Carrying Handle
14. Stretch Hose Handle
15. Long Power Cord
16. *Power Edger (optional w/Wrap Around Bumper)
17. Belt Storage
18. Swivel Casters
™
19. Extension Wand
20. Crevice Tool
21. 2-in-1 Tool - Dust brush/Upholstery tool
22. On/Off Switch - Just above HEPA Filter
23. Clear Hose Inlet
24. Edge Wedge
®
Tool (Corner and stair tool)
NOTE: *Optional tools not included with all
models
23
1.
2.
3.
2
11
5b.
FEATURES
13
18

Dirt Devil Swivel Glide Vision Specifications
