TROUBLE SHOOTING GUIDE
LIGHTBULB REMOVAL & REPLACEMENT
8
WARNING: TO REDUCE RISK OF PERSONAL INJURY - UNPLUG CLEANER BEFORE SERVICING
Problem Possible Reasons Possible Solutions
Cleaner won’t run 1. Power cord not firmly plugged into outlet. 1. Plug unit in firmly.
2. Blown fuse or tripped breaker. 2. Check fuse or breaker in home. Replace fuse/reset
breaker.
3. Needs service. 3. Take to service center or call 1-800-321-1134.
Cleaner won’t pick-up 1. Dirt container not installed correctly. 1. Review dirt container Removal and Replacement-Pg. 6.
or low suction. 2. Dirt container full. 2. Empty dirt container-Pg. 6.
3. Clogged filter. 3. Remove filter and clean-Pg. 7.
4. Nozzle/dirt passage clogged. 4. Remove base nozzle cover; remove obstruction OR
Remove hose; remove obstruction.
5. Clear hose inlet clogged. 5. Remove hose and clean inlet.
6. Brushroll worn. 6. Replace brushroll-Pg. 7.
7. Broken or worn belt. 7. Replace belt-Pg. 7.
8. Carpet height setting is incorrect. 8. Set carpet height adjustment to appropriate
setting for carpet being cleaned-Pg. 6.
9. Clog valve activated. 9. Clean filters and clear blockages-Pg. 6.
Dust escaping from cleaner 1. Dirt container full. 1. Empty dirt container-Pg. 6.
2. Dirt container not installed correctly. 2. Review dirt container Removal and Replacement-Pg. 6.
3. Hose not installed correctly. 3. Review Hose Installation-Pg. 5.
Cleaner tools won’t pick up. 1. Hose clogged. 1. Remove hose and tools; remove obstruction-Pg. 5.
2. Hose inlet clogged. 2. Remove hose and clean inlet.
3. Dirt container full. 3. Empty dirt container-Pg. 6.
4. Filter clogged. 4. Clean filter-Pg. 7.
Headlight not working1.Bulb burnt out. 1. Replace bulb-Pg. 8.
2. Loose electrical wires. 2. Call 1-800-321-1134 for nearest authorized
Royal
®
Dealer.
Cleaner is difficult to push 1. Carpet height setting is incorrect. 1. Set carpet height adjustment to appropriate
setting for carpet being cleaned-Pg. 6.
ANY OTHER SERVICING SHOULD BE DONE BY AN AUTHORIZED SERVICE REPRESENTATIVE
CUSTOMER SERVICE (1-800-321-1134)
In the event that further assistance is required, see your Yellow Pages for an authorized Royal
®
Dealer. Costs of any transportation to
and from any place of repair are to be paid by the owner. The service parts used in this unit are easily replaced and readily available
from an authorized Royal
®
Dealer or retailer. Always identify your cleaner by the model number and manufacturing code when request-
ing information or ordering replacement parts. (The model number appears on the back of the cleaner.)

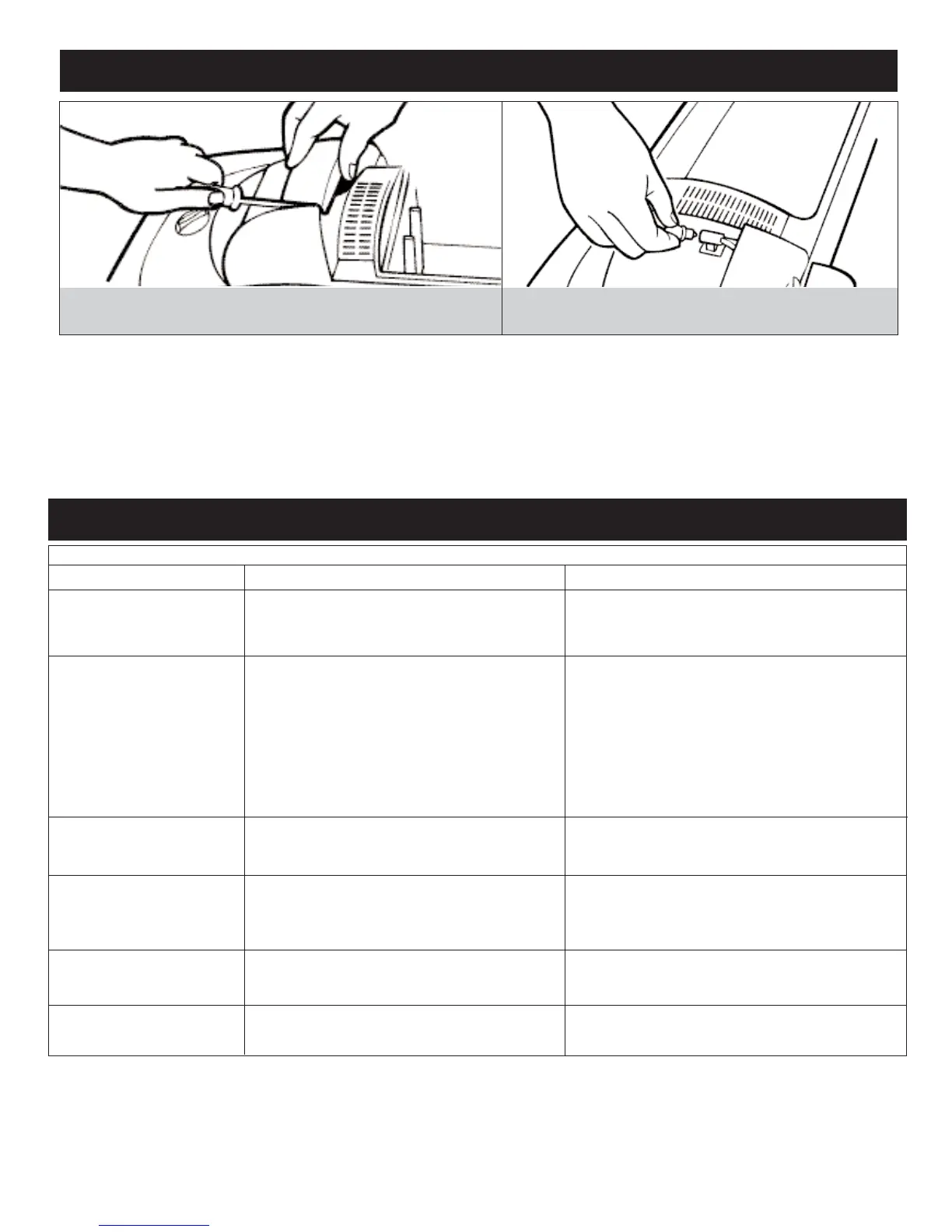

Diagram 1 Pop Headlight Lens
Insert flat head screwdriver into side slot and pry outward.
Diagram 2 Remove/Replace Bulb
Pull bulb out of socket to remove. Push bulb into socket to replace.
LIGHTBULB REMOVAL & REPLACEMENT
TOOL REQUIRED: FLATHEAD SCREWDRIVER
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK - UNPLUG CLEANER BEFORE REMOVING OR REPLACING LIGHTBULB.
This cleaner uses a common automotive lamp #906, 13.0 volts. For bulb replacement call 1-800-321-1134 or your local auto parts store.
1. Lean cleaner handle back. Insert end of standard (flat head) screwdriver into side slot and pry outward to pop headlight lens out
(Diagram 1).
2. Pull bulb out of socket to remove. Push bulb into socket to replace (Diagram 2).
3. Snap headlight lens panel back into place.
1.
2.
