Dish Network DISH 500 - Diagram 7. 110°, 119°, & 129° (DISH 1000.2)

Installation Diagrams - Diagram 7. 110°, 119°, & 129° (DISH 1000.2) 3 - 10

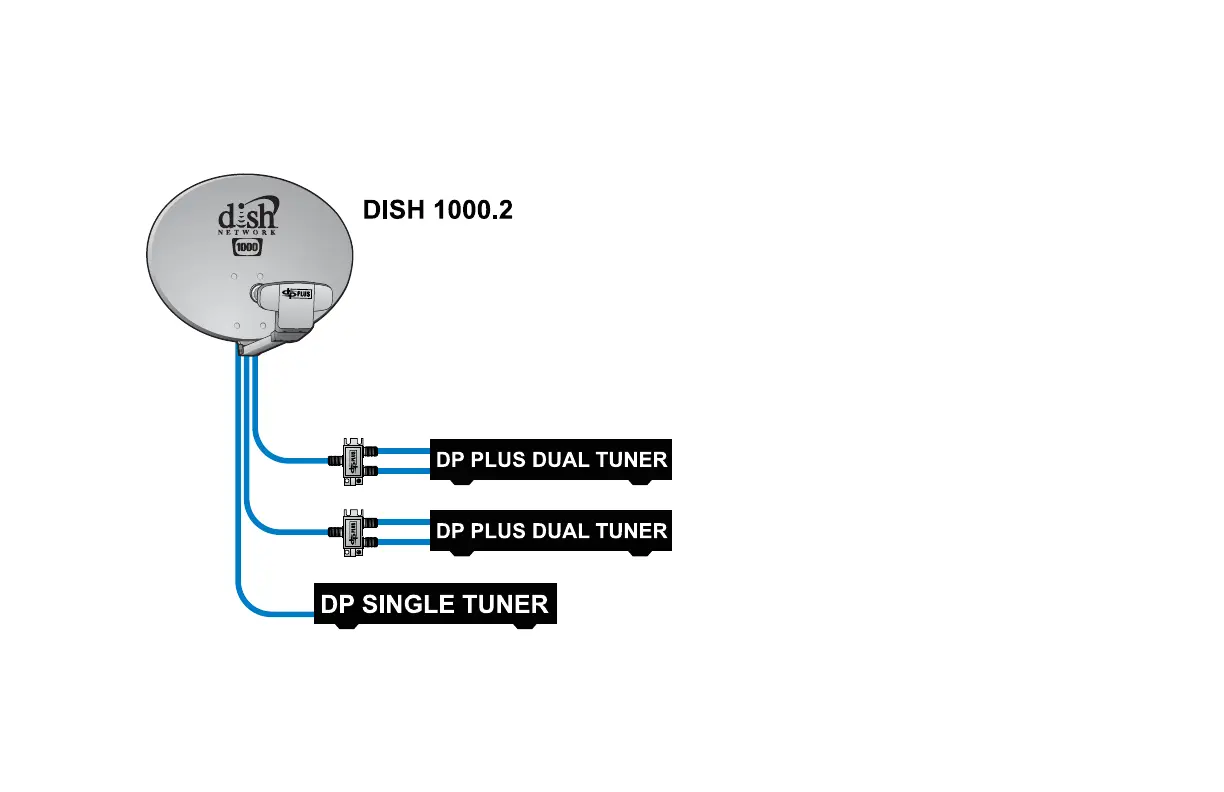

Diagram 7. 110°, 119°, & 129° (DISH 1000.2)
Uses DP Plus 1000.2 LNBF
Or Legacy Receiver
• Single-cable/dual-tuner receiver
installations require a DP Plus Separator.
• A Legacy receiver installation must also
include at least one DP or DP Plus
receiver.
• Grounding according to the National
Electric Code (NEC) and all local
electrical codes is required.
