Installation Diagrams - Diagram 5. 110°, 119°, & 129° (DISH 1000) 3 - 8

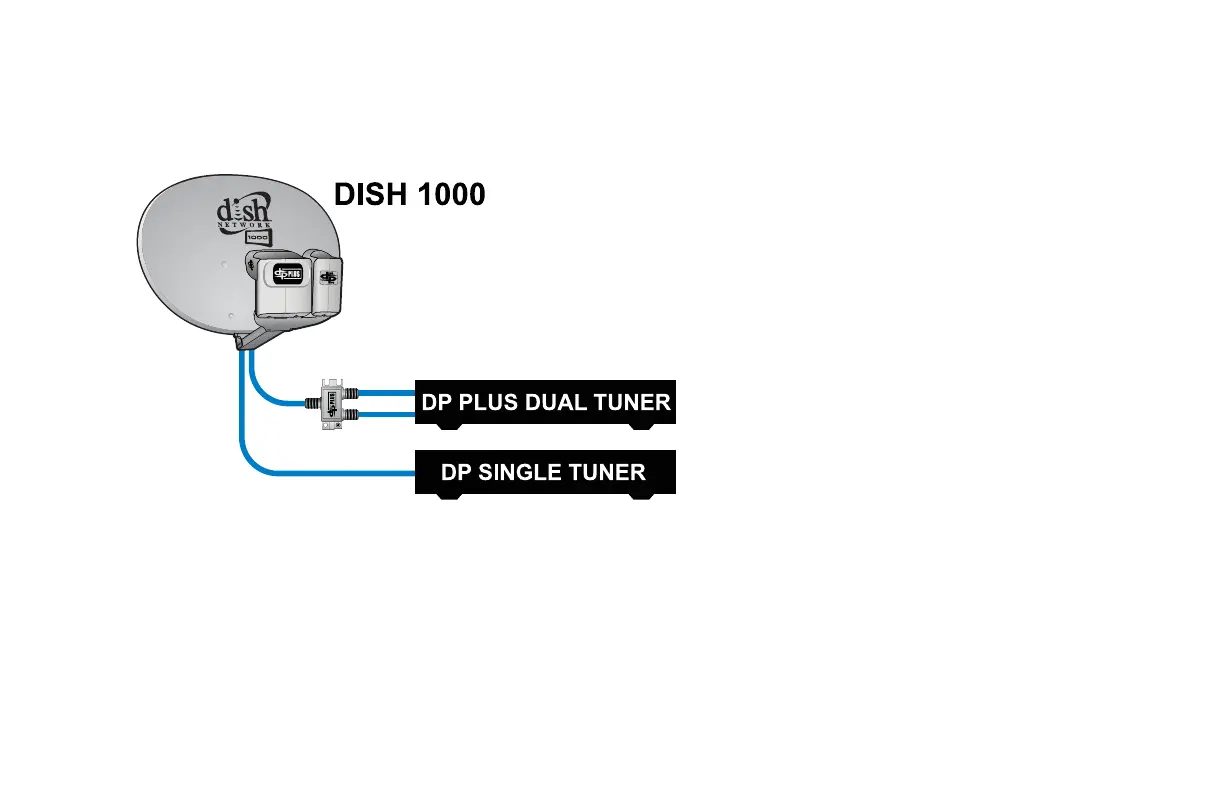

Diagram 5. 110°, 119°, & 129° (DISH 1000)
Uses DISH Pro Plus Twin and DISH Pro Dual or Single
Or Legacy Receiver
• Single-cable/dual-tuner receiver
installations require a DP Plus
Separator.
• Single Legacy receiver installations are
not supported.
• Installations with two Legacy receivers
cannot view 129°.
• Grounding according to the National
Electric Code (NEC) and all local
electrical codes is required.
