Distech Controls Allure EC-Smart-Vue Series User Manual

11 / 16

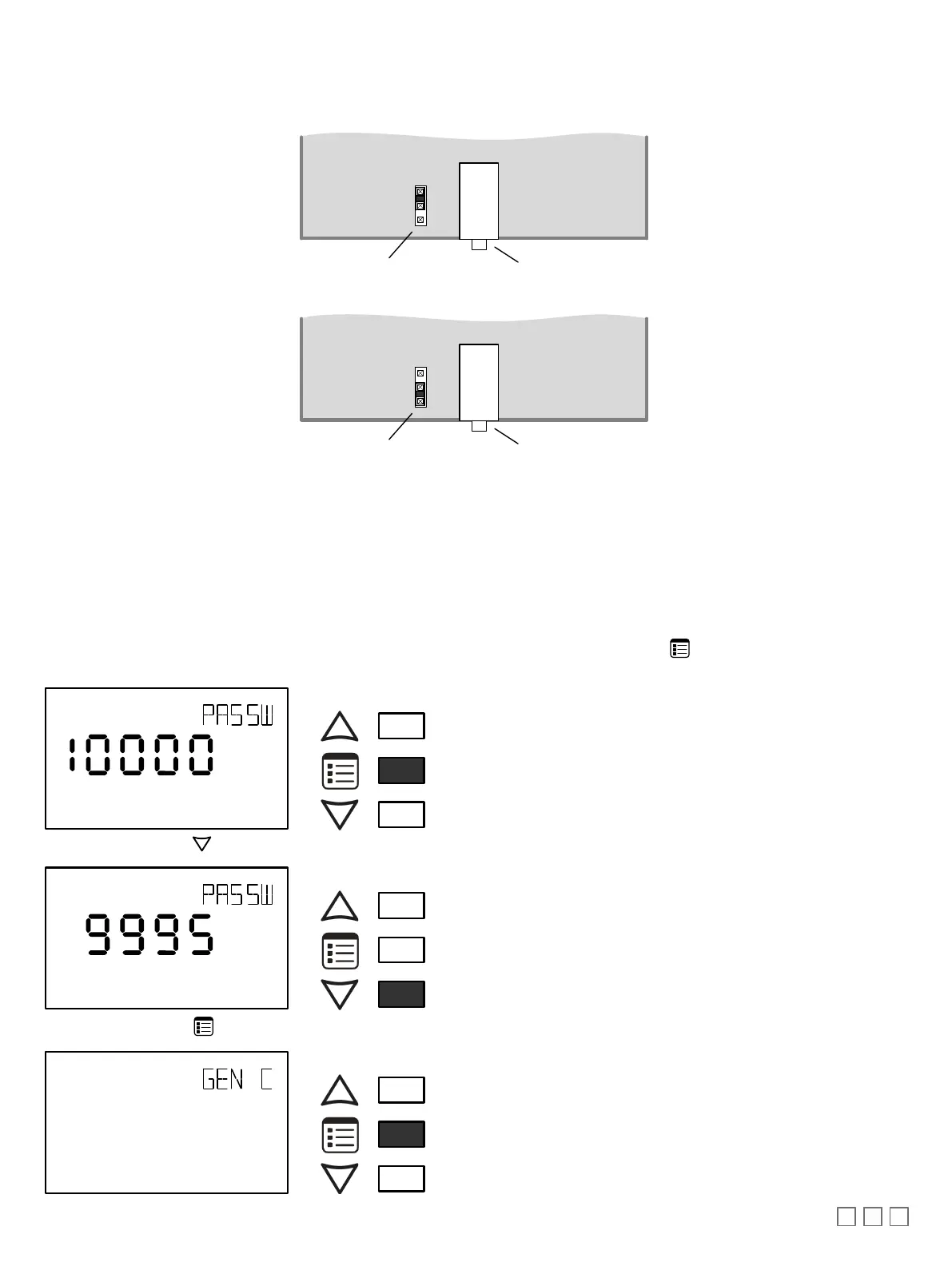

Set the LAN Type
Set the BAC/LON jumper for the type LAN in use: BAC for a BACnet network, LON for a LONWORKS network.
BAC
LON
3.5 mm (1/8”) Network
Access Jack
Network Type
Jumper
Figure11: BAC/LON Jumper Set to the BAC (BACnet) Position when used with ECBSeriesControllers
BAC
LON
3.5 mm (1/8”) Network
Access Jack
Network Type
Jumper
Figure12: BAC/LON Jumper: Set to the LON (LONWORKS) Position when used with ECL SeriesControllers
Setting Up an Allure EC-Smart-Vue Sensor Equipped with a Motion Sensor
The following procedure describes how to commission and test an Allure EC-Smart-Vue sensor equipped with a motion sensor as well as adjust the mo-
tion sensitivity (Allure EC-Smart-Vue M/-CM/-HM/-CHM sensors).
1. Connect an Allure EC-Smart-Vue sensor equipped with a motion sensor to the controller with a Cat 5e patch cable.
2. After a 30-second warm-up period, if movement is detected, the motion sensor light will turn on.
3. To test the sensor functionality, aim the sensor in the direction you want to detect motion and walk at a normal pace across the typical detection zone
and verify that the sensor light turns on. The light will turn on and after 2 seconds of non-movement, the motion sensor light will turn off.
4. Now to set the motion sensitivity, on the Allure EC-Smart-Vue sensor, press and hold the
Menu
button for 5 seconds to enter the password
menu. 10000 is shown on the display.
OR
Screen Timeout: 15 seconds
5. Press the down button to set the number to 9995 (this is the default password).
OR
Screen Timeout: 15 seconds
6. Press the
Menu
button to submit the password. Upon submitting the password, the
GEN CFG
menu appears on the display.
OR
Screen Timeout: 30 seconds
