3.INSTALLATION AND CONNECTION
4
Installation items:
The factory only provides the main unit and the water unit; the other items illustrated in the
diagram are system parts and are provided by the user or installer.

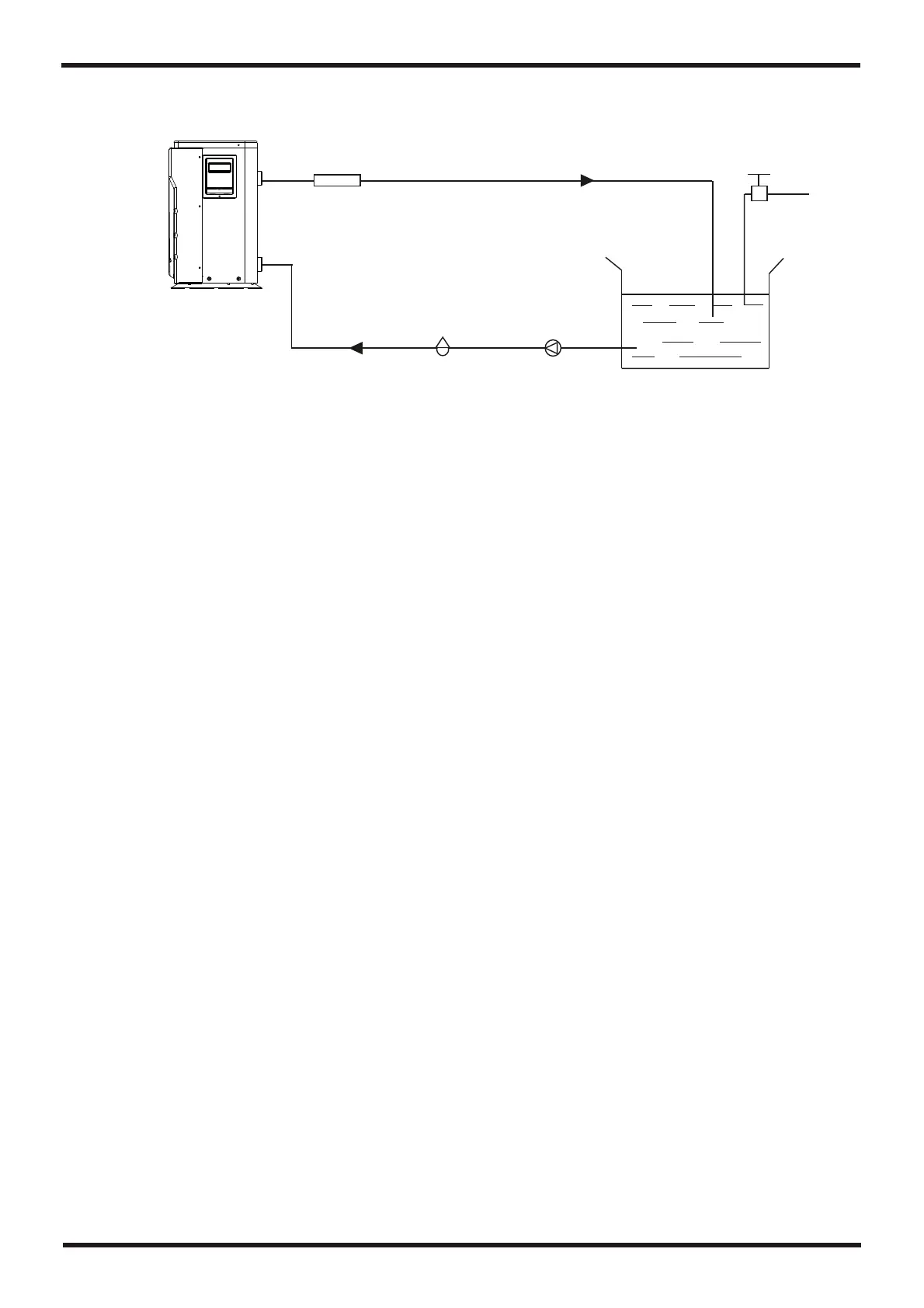

3.1 Installation illustration
Attention:
Use the following procedure during initial start up.
1.Open valve and fill with water.
2.Make sure that the pump and the water-in pipe have been filled with water.
3.Close the valve and start the unit.
Chlorinator cell
Water outlet
Pool
Valve
Water supply
Water inlet
Water pump
Sand filter
(or other type filter)
Installation must be performed in accordance with the requirements of NEC and CEC
by authorized personnel only.
