Controls - 24 8500 Tracking System Operator’s Manual
8500D
CMW

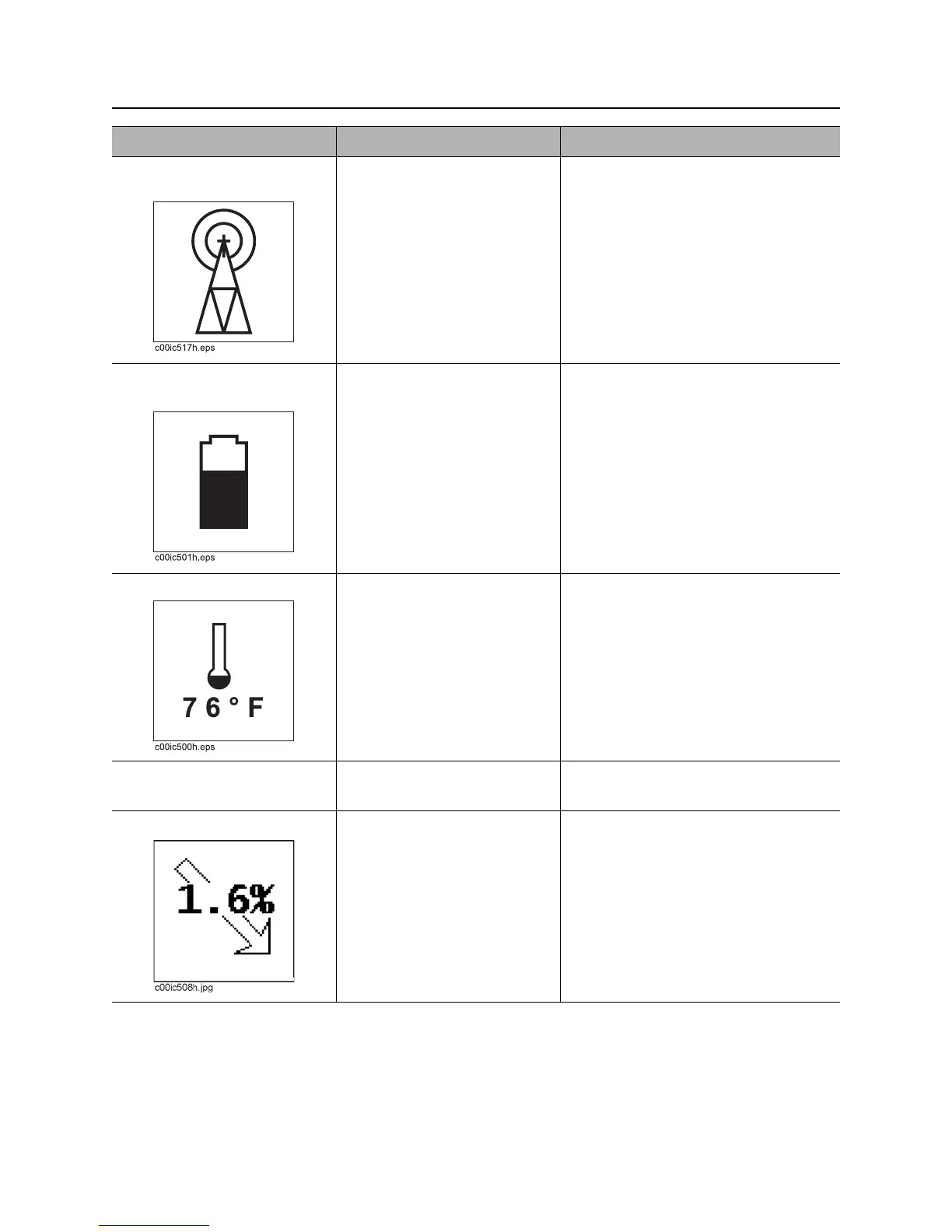

3. Communication
indicator
Indicates tracker and display
are communicating properly.
4. Display battery life
indicator
Indicates amount of battery
power remaining for the
display.
Flashes when batteries need
to be replaced.
5. Beacon temperature Displays beacon temperature
and flashes if temperature
becomes too high.
Icon darkens as temperature
rises and temperature is
displayed numerically below
the icon.
6. Beacon roll value Displays numeric value in
degrees, minutes or hours.
7. Beacon pitch Displays pitch of beacon in
percent grade or degrees.
The arrow behind the value
indicates whether pitch is
positive or negative.
