System Operation - 42 8500 Tracking System Operator’s Manual
Walkover Location Mode
CMW
Sample Screens

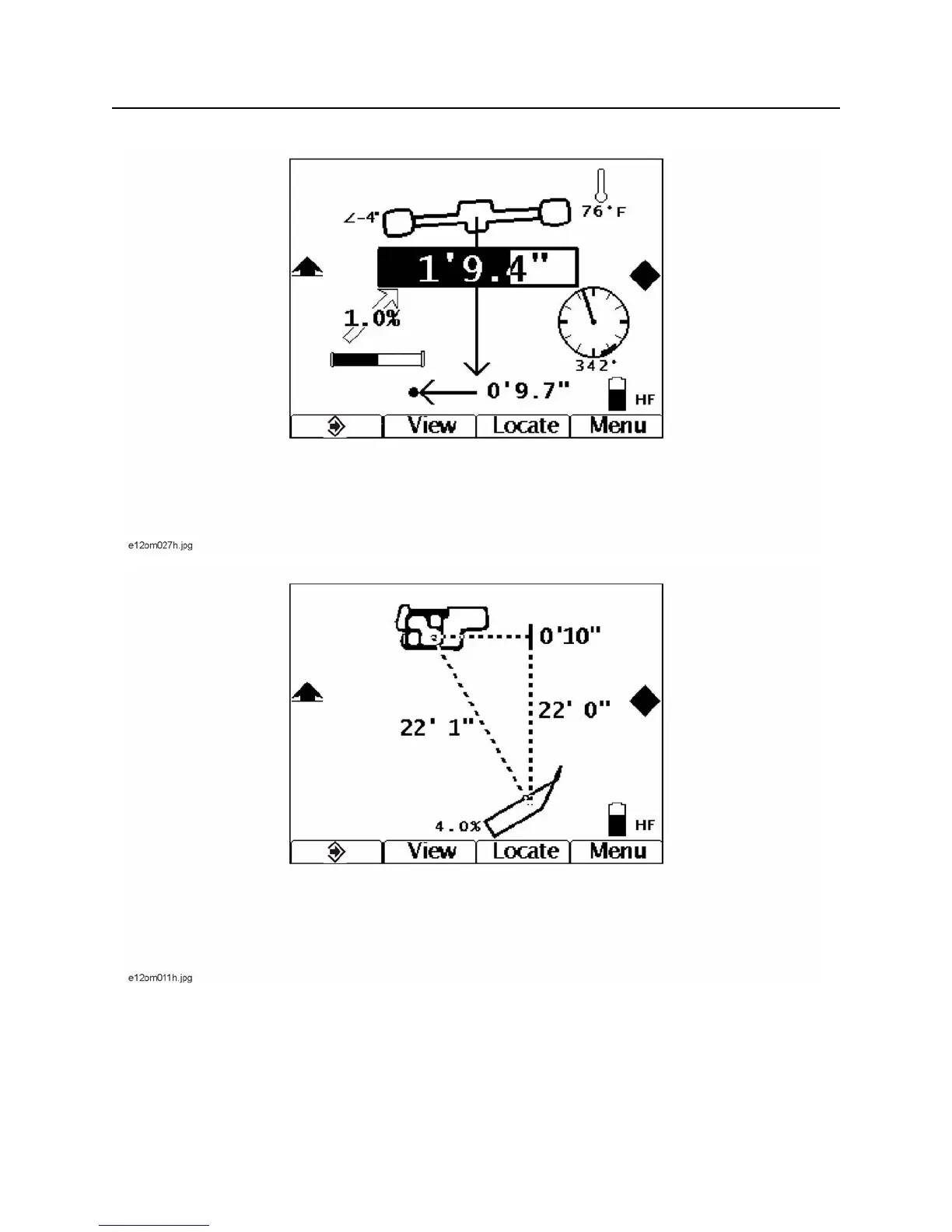

Depth screen, standard view
Beacon is pitched up 1%, is offset from tracker 9.7” to the left and is 1’ 9.4”
deep. The tracker is tilted left 4°. Depth reading bar will become solid as values
are averaged. Once it is solid, the value is locked and sent to remote display.
Depth screen, side view
Beacon is pitched up 4%, is 10” ahead of tracker and is 22’ deep. The tracker
is 22’ 1” away from beacon.
