8500 Tracking System Operator’s Manual System Operation - 37
Walkover Location Mode
CMW
3. Locate Arrows Indicate fore-aft direction to
move antenna pod to locate
beacon plane.
Arrows change to diamonds
when antenna pods are in
beacon plane.
Longer arrows indicate the tracker is a
greater distance from beacon plane.
Advanced depth features are
available when both arrows or
diamonds are solid.
4. L/R Button Press and hold to display
projected direction.
Tracker pods must be parallel with
beacon. See “Projected Direction” on
page 39.
5. Send Button Press to send depth to
remote display.

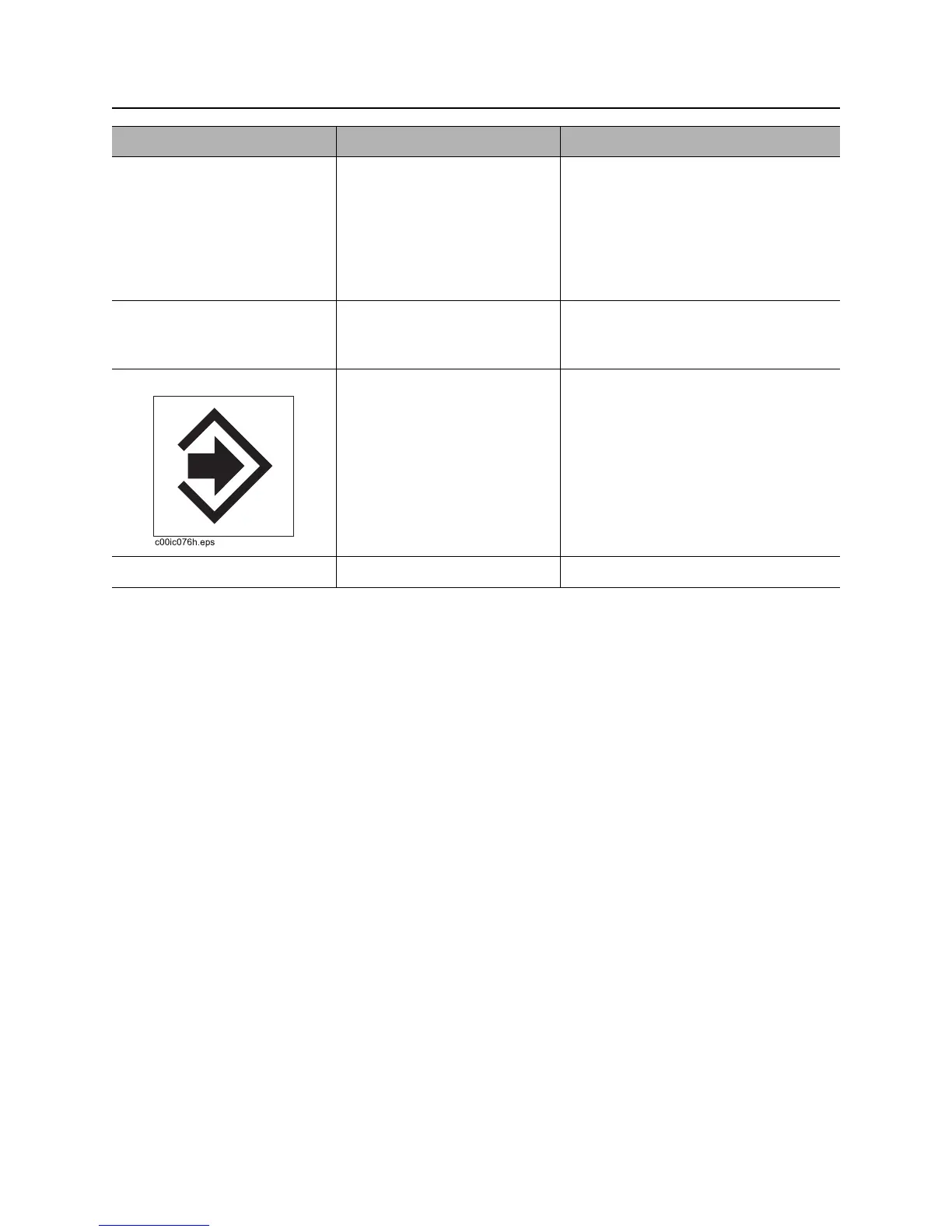

6. Depth Screen Button Press to enter depth screen.
Item Description Notes
