Service - 54
FM25/FM25X Operator
’
s Manual
50 Hour

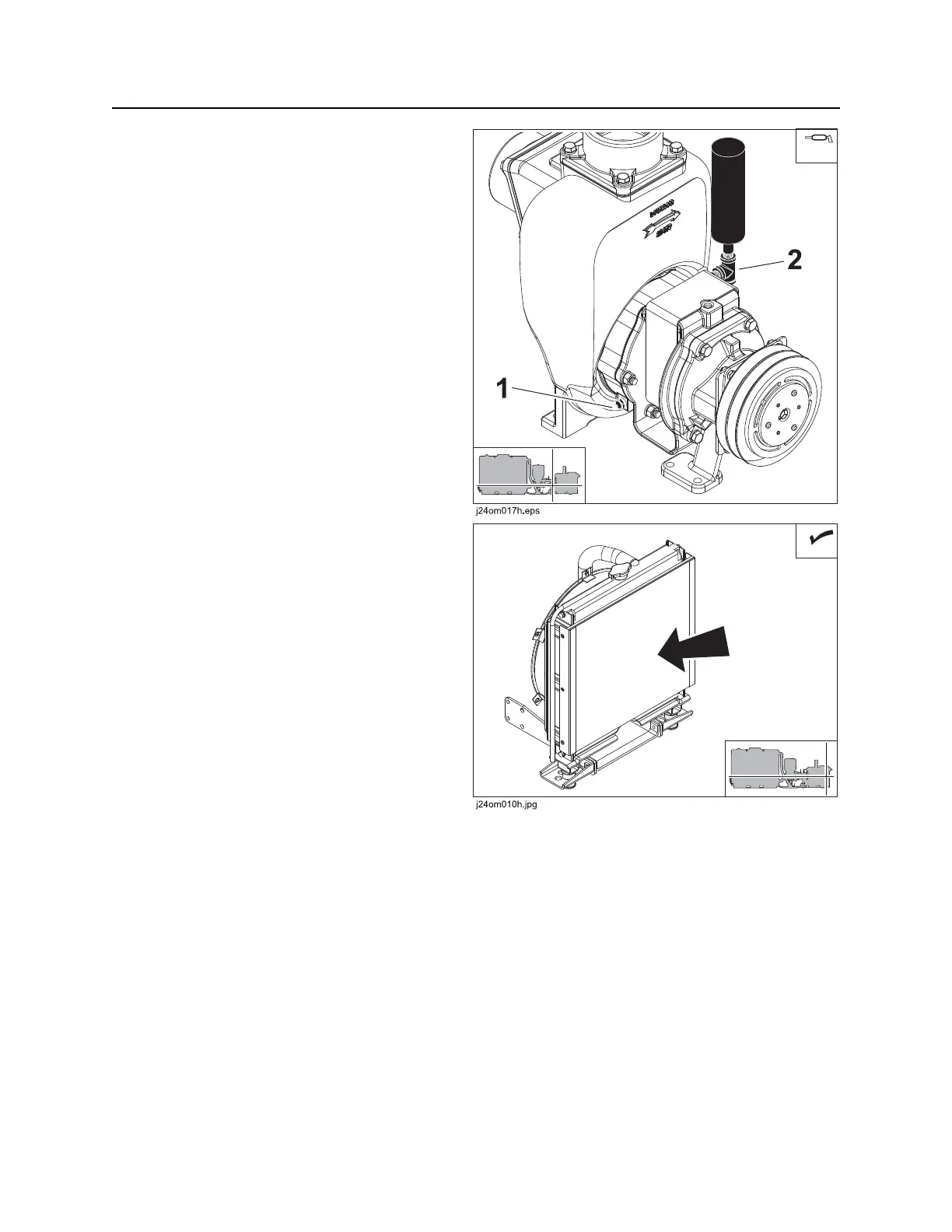

Lube Pump
Lube zerk (2) with MPG every 50 hours. Grea
se
cavity is full when grease escapes from grease
cylinder relief valve (1).
Check Radiator
Check radiator for dirt, gr
ass, and other foreign
matter every 50 hours. Clean out with
compressed air or spray
wash if required. Be
careful not to damage fins with high-p
ressure air
or water
. Check more often if operating
in dusty or
grassy conditions.
54
