RT80 Operator’s Manual Specifications - 143
H813 Trencher
H813 Trencher

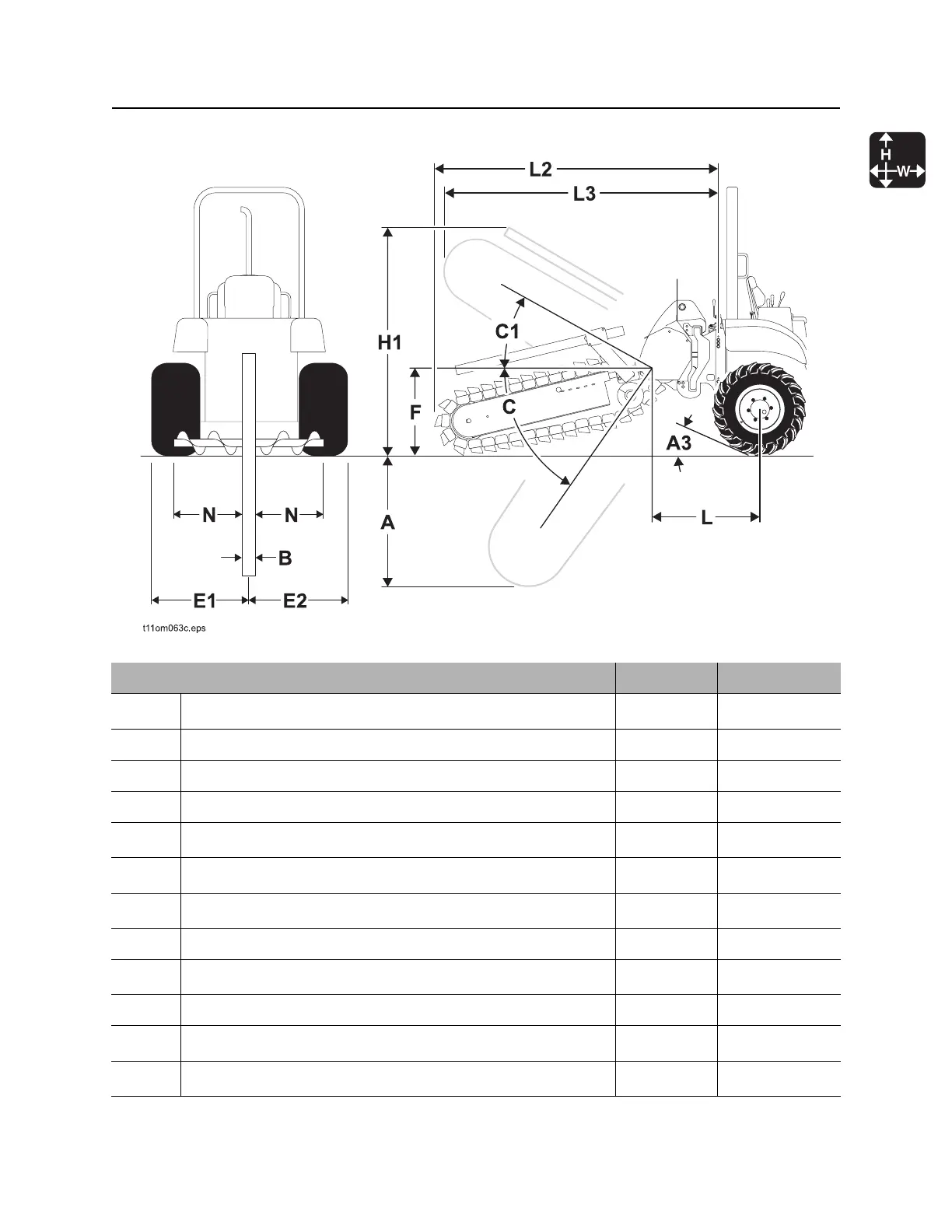

Dimensions U.S. Metric
A
3
Angle of departure 25° 25°
A Trench depth, maximum 84 in 2.1 m
B Trench width, minimum to maximum 6-12 in 125-305 mm
C Boom travel down 55° 55°
C
1
Boom travel up 50° 50°
E
1
Centerline of trench to outside edge, left* 23.5-67 in 600-1700 mm
E
2
Centerline of trench to outside edge, right* 9-53.5 in 230-1335 mm
F Headshaft height, digging chain 29 in 740 mm
H
1
Transport height 122 in 3.1 m
L Headshaft overhang 46.5 in 1.2 m
L
2
Transport length 106 in 2.7 m
L
3
Attachment length, fully raised 94 in 2.4 m
