Controls - 42 RT80 Operator’s Manual
Backhoe Console
CMW

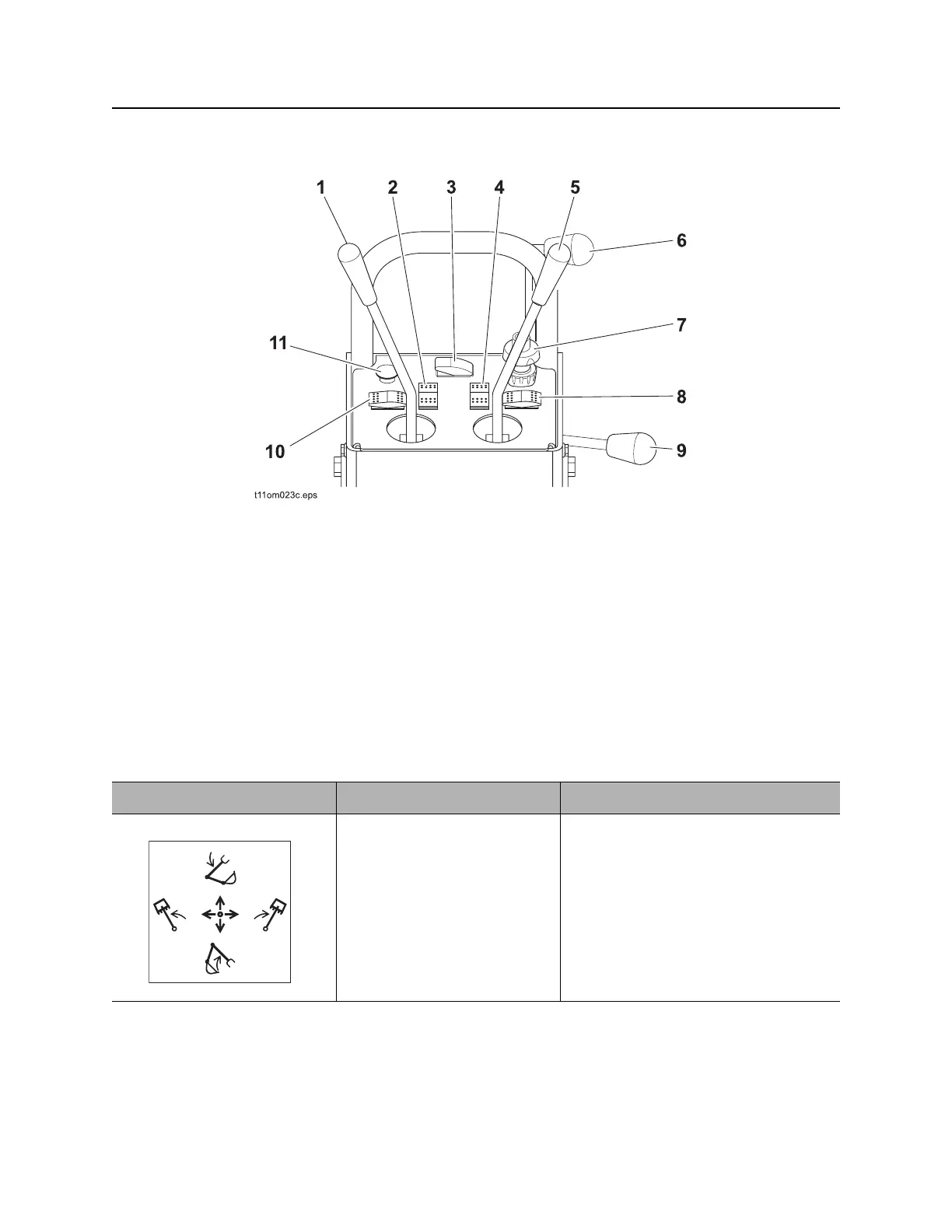

Backhoe Console
1. Boom/Swing control
2. Remote backfill blade control
3. Work light switch*
4. Remote ground drive control
5. Bucket/Dipper control
6. Stow lock control
7. Remote throttle
8. Right stabilizer control
9. Swing lock control
10. Left stabilizer control
11. Remote engine stop switch
*optional
Item Description Notes
1. Boom/Swing control To swing boom left, move left.
To swing boom right, move
right.
To raise boom, pull.
To lower boom, push.
Control can perform more than one
action at a time. By “feathering” the
control, operator can combine
backhoe operations.
NOTICE: Do not operate with
backhoe in the stowed (upright)
position. Component failure could
occur.
c00ic212h.eps
To Next Page
