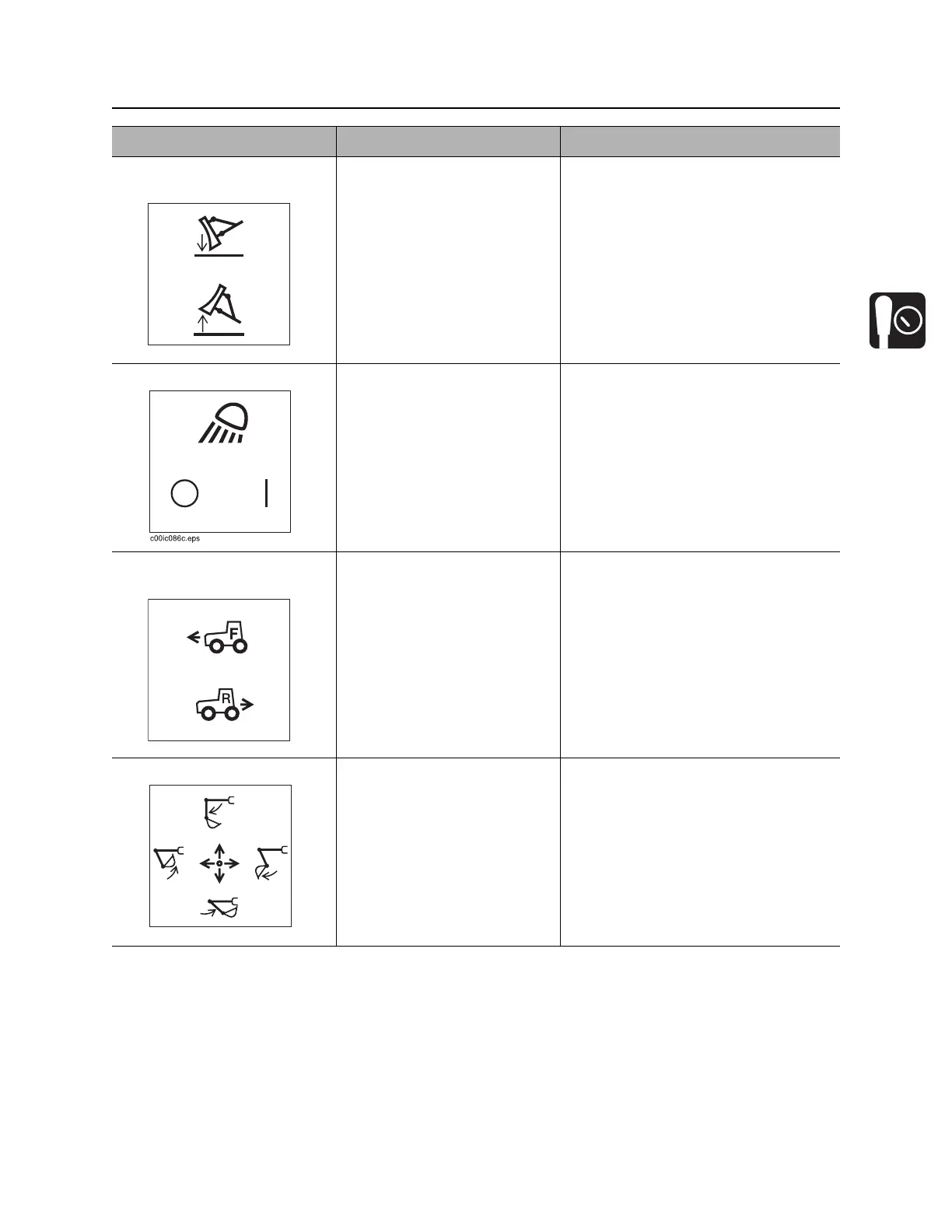

RT80 Operator’s Manual Controls - 43
Backhoe Console
CMW
2. Remote backfill blade
control
To lower, press top.
To raise, press bottom.
3. Work light switch To turn on, press right.
To turn off, press left.
4. Remote ground drive
control
To move tractor forward,
press top.
To move tractor backward,
press bottom.
NOTICE:
• Ensure that backfill blade and
stabilizers are raised before
operating this control.
• Do not move more than 30’ (10
m) at a time.
5. Bucket/Dipper control To open bucket, move right.
To close bucket, move left.
To move dipper in, pull.
To move dipper out, push.
Control can perform more than one
action at a time. By “feathering” the
control, operator can combine
backhoe operations.
