Controls - 44 RT80 Operator’s Manual
Backhoe Console
CMW

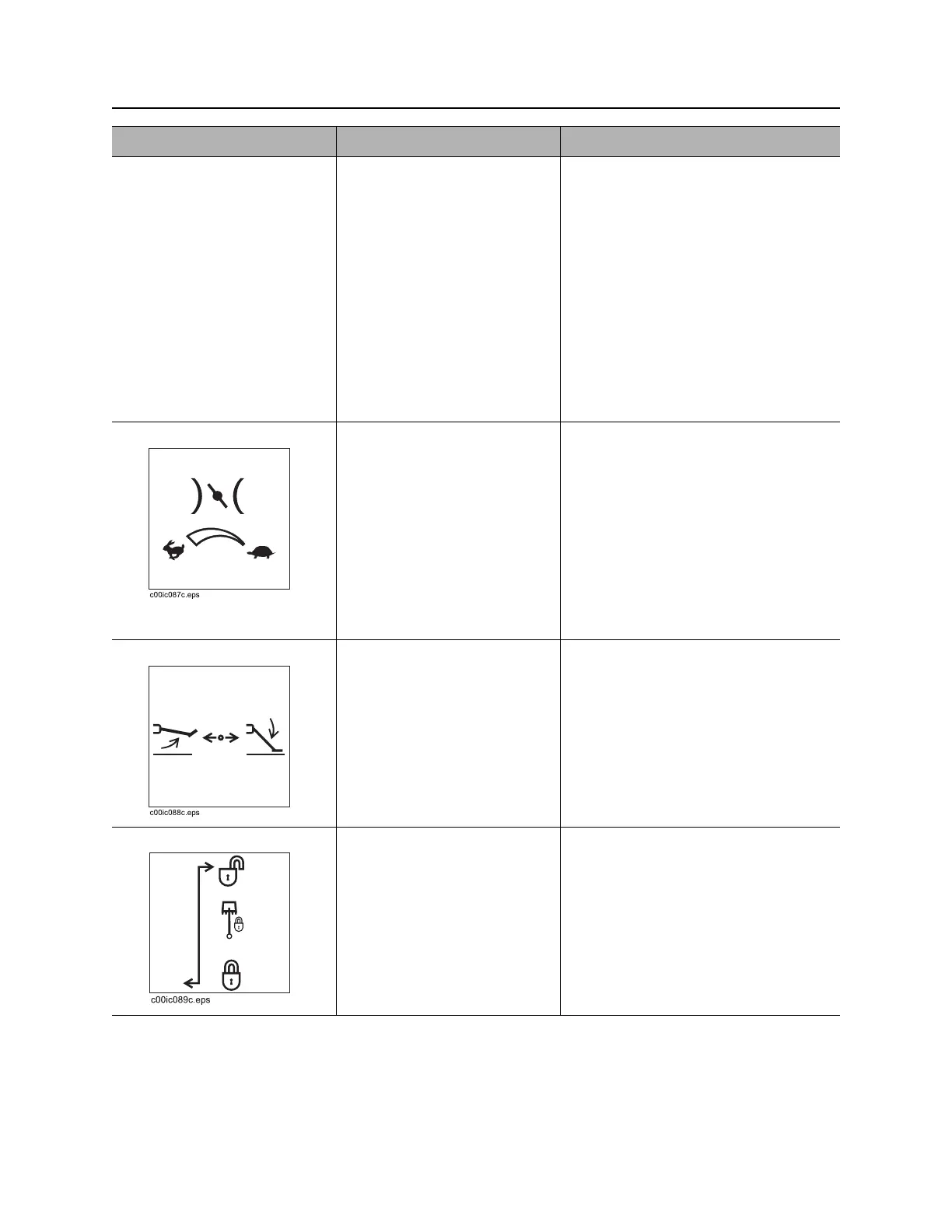

6. Stow lock control To lock:
• Raise boom fully.
• Pull stow lock handle.
• Lower boom slightly to
engage lock.
To unlock:
• Raise boom slightly.
• Push stow lock handle to
release lock.
Use this control to lock boom in the up
position.
NOTICE: Always lock boom during
transport.
7. Remote throttle To increase engine speed,
turn counterclockwise.
To decrease engine speed,
turn clockwise.
To lock, push button, pull up,
then release button.
To unlock, push button, then
push down.
8. Right stabilizer control To lower, press right.
To raise, press left.
9. Swing lock control To lock, push down and into
hook.
To unlock, pull up and into
hook.
Backhoe can be locked in several
swing positions. If lock will not
engage, swing backhoe slightly left or
right until lock engages.
Item Description Notes
