Mode dial Shaft
Positioning ring
Rocked lever (Black)
Do not affix a label on
this or block it.
Maintenance Nut
Indicator
Indicates power ON, remaining
battery level, and error warnings.
Mode lock lever (Red)
Ring-shaped LED
External flash port
Rear Cap
Keep this attached when carrying
or storing the Light Module to
prevent the positioning bolts from
coming off and getting lost.
Screw the M52
The Light Module can be mounted on a
housing and lens port with M67 threads
when a commercially available M67-M52
step down ring is used.
*
See P. 17.
Fiber Connector Cap
(2 holds)
Flash mode reception port
Electrical Contacts (×4)
Wipe dry when these are wet.
Fiber Connector Cap
(1 hole)
Positioning Bolts
(×4)
O-ring
(Red)
Provides waterproofing to the
connection between the Light
Module and Battery Module.
Front Protector
Battery lock lever (Black)
Used to remove the Light
Module from the Battery
Module.
Light Module Cap
* Not waterproof

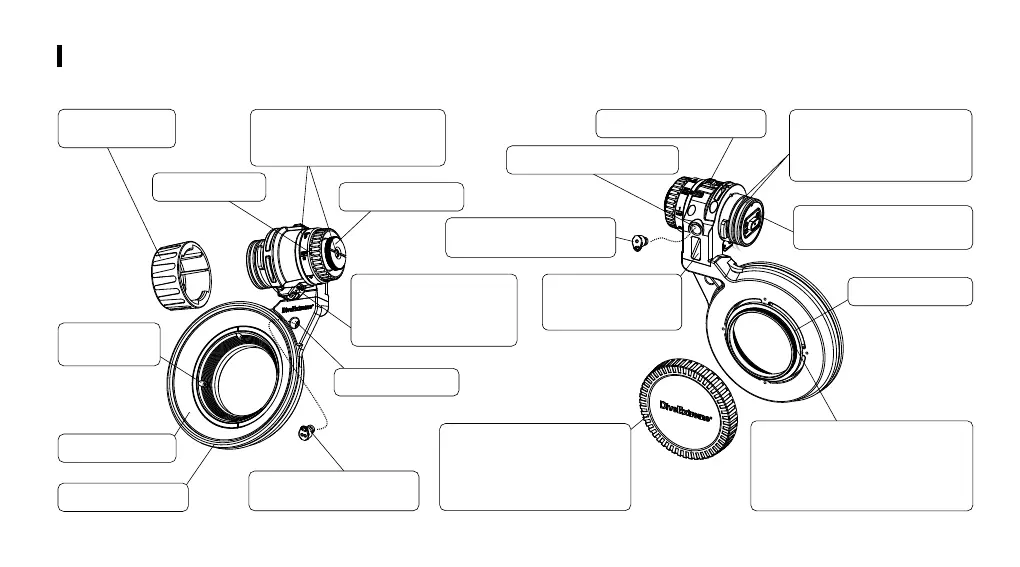

Nomenclature
■
Ring light Module DL-LM01
42
