DIVERSITECH ASURITY PROCP-22S - Safety Switch Connection; Electrical Connection

ASURITY
TM
CONDENSATE MANAGEMENT PAGE
8
INSTALLATION (continued)

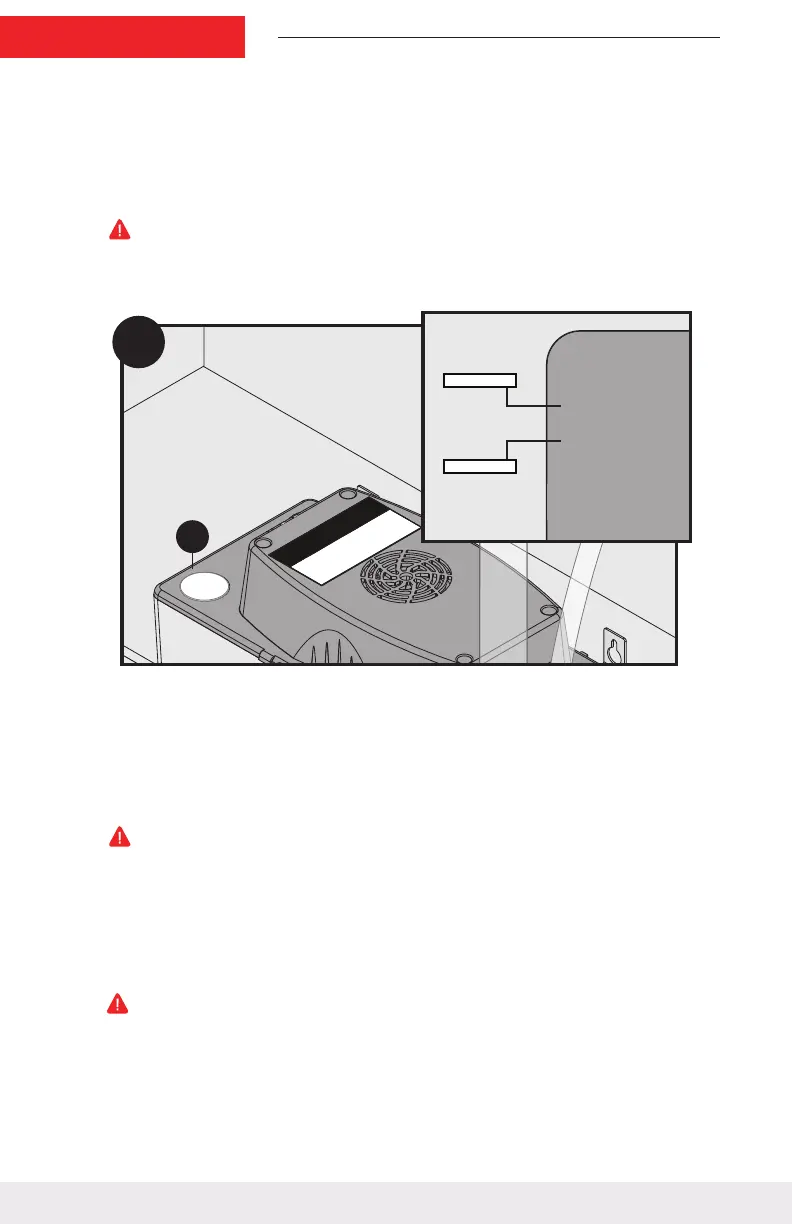

6. SAFETY SWITCH CONNECTION
Connect overow safety switch terminals as shown in wiring diagram.
WARNING: RISK OF ELECTRIC SHOCK
Ensure that power to appliance and pump is shut o before
attempting this step! Failure to follow these warnings will void the
warranty and could result in a fatal electric shock.
ELECTRICAL CONNECTION
7. ELECTRICAL CONNECTION
WARNING: RISK OF ELECTRIC SHOCK
This pump is supplied with a grounding conductor and grounding-
type attachment plug.To reduce the risk of electric shock, be certain
that it is connected only to a properly grounded, grounding-type
receptacle. This pump must be properly connected to power
following the National Electric Code (NEC). Failure to follow these
warnings will void warranty and could result in a fatal electric shock.
This pump is supplied with a grounding conductor and grounding
type attachment plug. To reduce the risk of electric shock, be certain
that it is connected only to a properly grounded, grounding-type
receptacle.
YWGR
YWGR
A
6
Shut-Down Circuit*
Shut-Down Circuit*
*Overflow Switch is normally
closed and opens when a high
water level is detected.
Connect this circuit in series
with the appropriate 24V
shut-down circuit for the
appliance.
