CONTROLS
Dixon-17
This operator’s manual describes the Dixon Zero
Turn Rider. The rider is tted with a Kohler four-
stroke overhead valve engine developing 25-27 horse
power*.

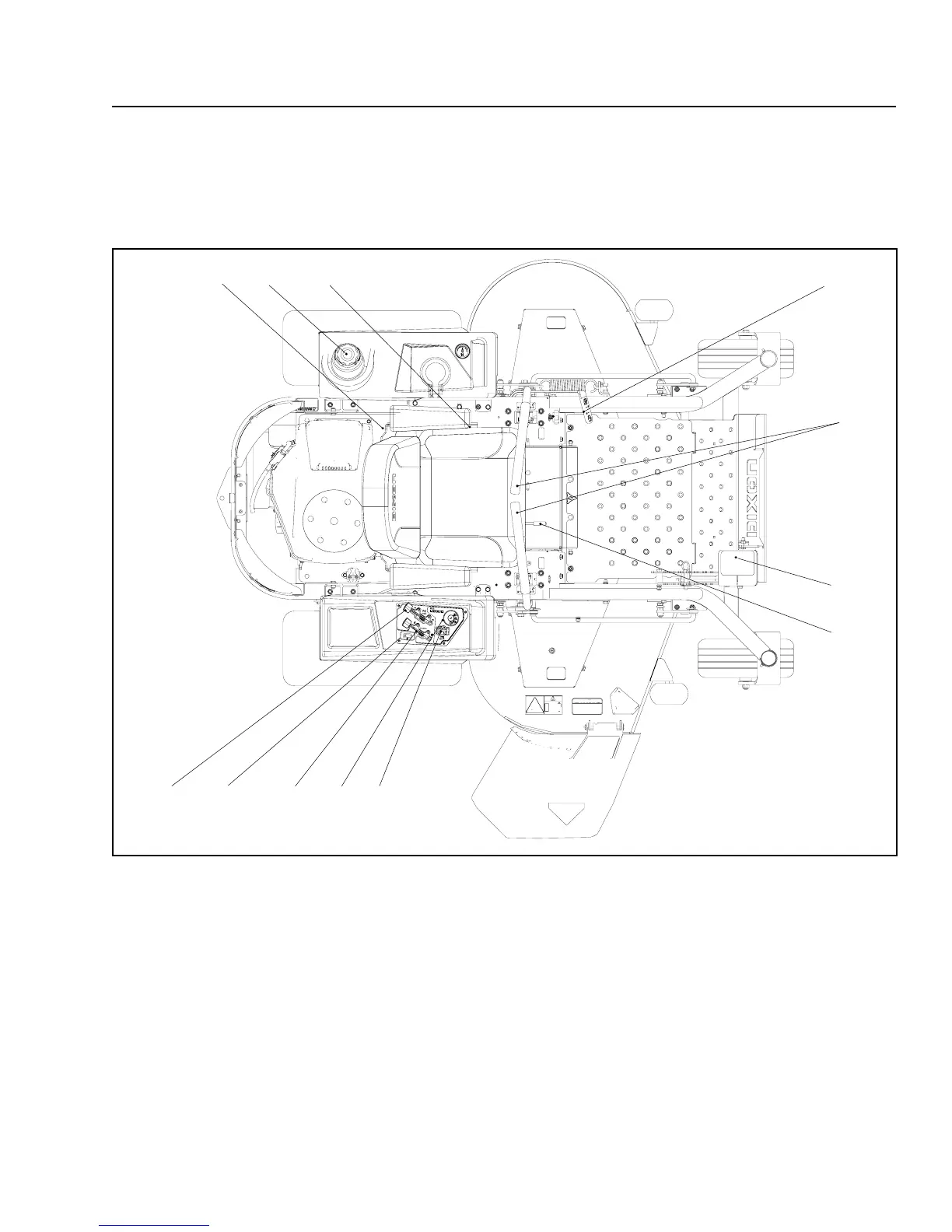

Control Locations
Motion control levers1.
Parking brake2.
Throttle control3.
Blade switch4.
Ignition switch5.
Choke control6.
1
2
6
10
9 8
45
12
7
3
11
Fuses7.
Fuel tank cap8.
Fuel shut off valve9.
Deck lift10.
Seat adjustment lever11.
Hour meter12.
Transmission from the engine is made via a belt-driven
hydraulic pumps. Using the left and right steering
controls, the ow is regulated and thereby the direction
and speed.
*As rated by the engine manufacturer.
