CONTROLS
20-Dixon

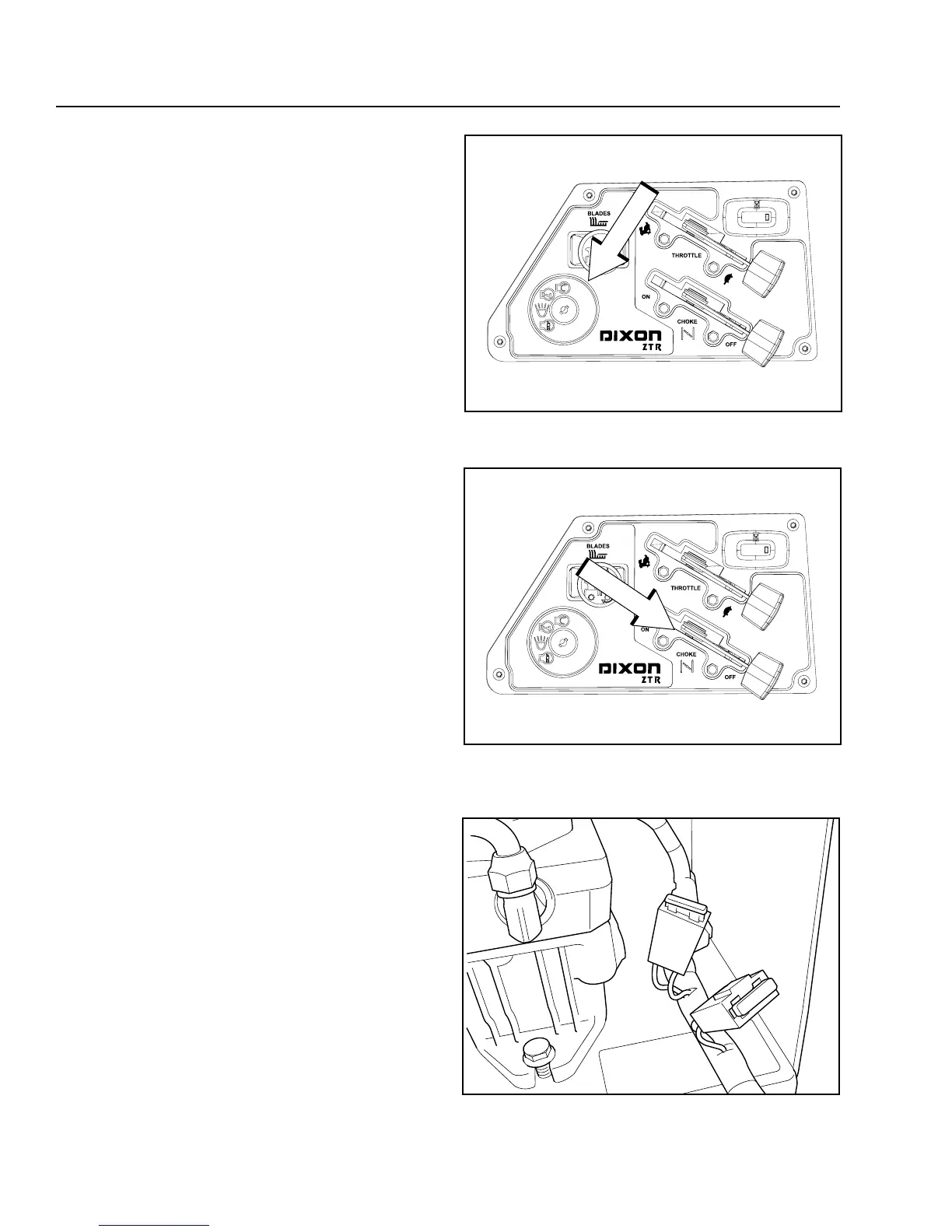

Ignition Switch
The ignition key is placed on the control panel and is
used to start and stop the engine.
Fuses
Fuses are located on the left hand side of the machine.
They are accessed by tilting the seat forward. They are
at pin fuses of the same type used in automobiles.
There are two fuses with ratings and functions:
20 A, Primary fuse.•
7.5 A, Mower deck coupling.•
8061-017
Ignition switch
8061-017
Choke control
Choke Control
The choke control is used for cold starts in order to
provide the engine with a richer fuel mixture.
For cold starts the control should be pushed to the ON
position.
8011-420
Fuses
