12. Left Dial
13. Record Button
14. SA Switch
15. Right Dial
16. SD Switch
17. Back Button
18. Right Stick Adjustment Screw (Horizontal)
19. Right Stick Adjustment Screw (Vertical)
20. Throttle Stick Adjustment Screws* (Mode 1)
a. Ratchet Throttle Adjustment Screw
b. Smooth Throttle Adjustment Screw
21. Throttle Stick Adjustment Screws* (Mode 2)
a. Smooth Throttle Adjustment Screw
b. Ratchet Throttle Adjustment Screw
22. Left Stick Adjustment Screw (Vertical)
23. Left Stick Adjustment Screw (Horizontal)
24. Battery Cover
25. Battery Cover Lock
* To choose between a ratchet throttle and a smooth throttle, users must adjust the throttle stick
adjustment screw that corresponds to the current control mode. Depending on the control mode,
the corresponding vertical stick adjustment screw is unavailable.
1
2
4
5
6
9
11
12
13
14
15
16
17
18
19
20
21
a
b
22
23
25
24
10
3
7
8
a
b
1
2
4
5
6
9
11
12
13
14
15
16
17
18
19
20
21
a
b
22
23
25
24
10
3
7
8
a
b

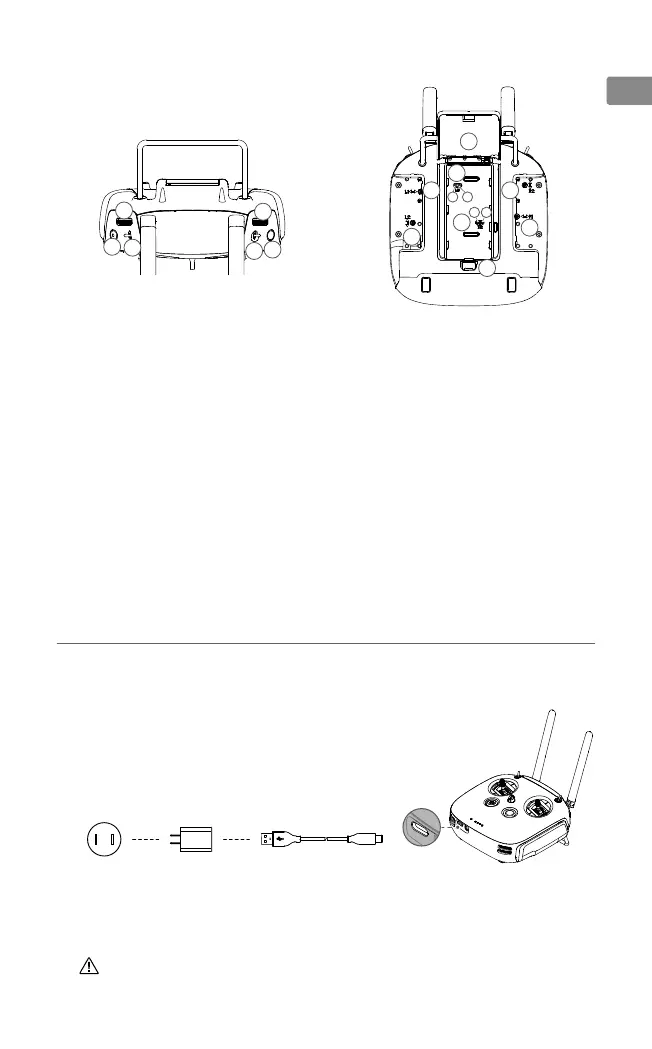

1. Charging the Battery
To activate the battery, fully charge it before using for the first time.
Remote ControllerPower Outlet
100-240 V
USB Adapter USB-C Cable
It is recommended to use the USB adapter of DJI Goggles RE, RONIN™-S, SPARK™, or
an FCC/CE certified USB adapter that supports Quick Charge 2.0.
