INSPIRE 2 User Manual

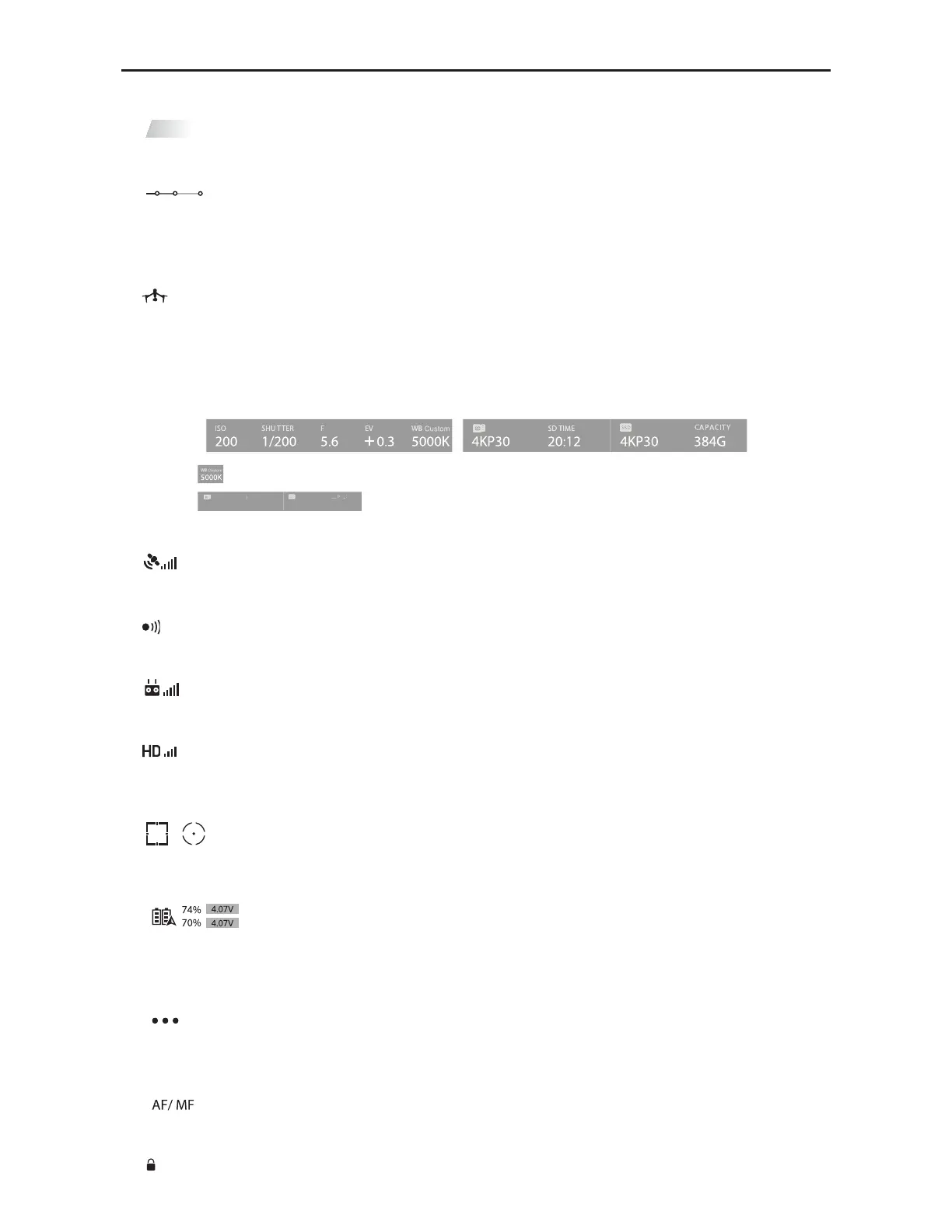

1. System Status
READY TO GO (GPS)
5IJTJDPOJOEJDBUFTBJSDSBGUnJHIUTUBUVTBOEWBSJPVTXBSOJOHNFTTBHFT
2. Battery Level Indicator
: The battery level indicator provides a dynamic display of the battery level. The colored
zones on the battery level indicator represent the power levels needed to carry out different
functions.
3. Flight Mode
5IFUFYUOFYUUPUIJTJDPOJOEJDBUFTUIFDVSSFOUnJHIUNPEF
5BQUPDPOmHVSFUIF.$.BJO$POUSPMMFS4FUUJOHT5IFTFTFUUJOHTBMMPXZPVUPNPEJGZnJHIUMJNJUT
and set gain values.
4. Camera Parameters
Displays camera settings parameters and capacity.
(1) Tap to set the white balance parameters.
(2) Tap
CA
P
A
C
I
T
Y
4KP3020:12 384G
S
D TI
M
4KP30
to set the photo and video parameters.
5. GPS Signal Strength
: Shows the current GPS signal strength. White bars indicate adequate GPS strength.
6. Obstacle Sensing Function Status
: Tap into this button to enable or disable features provided by the Vision System.
7. Remote Controller Signal Strength
: This icon shows the strength of the remote controller signal.
8. HD Video Link Signal Strength
: This icon shows the strength of the HD video downlink connection between the aircraft
and the remote controller.
9. Focus/Metering Button
/ : Tap to switch between focus and metering mode. Tap to select object for focusing or
metering.
10. Battery Level
: This icon shows the current battery level.
Tap to view the battery information menu, set the various battery warning thresholds, and view
the battery warning history.
11. General Settings
5BQUPFOUFSHFOFSBMTFUUJOHNFOVGPSTFUUJOHNFUSJDTFOBCMJOHMJWFTUSFBNEJTQMBZnJHIU
routes and so on.
12. AF/MF
: Tap to switch the focus mode.
13. Auto Exposure Lock
AE
: Tap to lock the exposure value.
