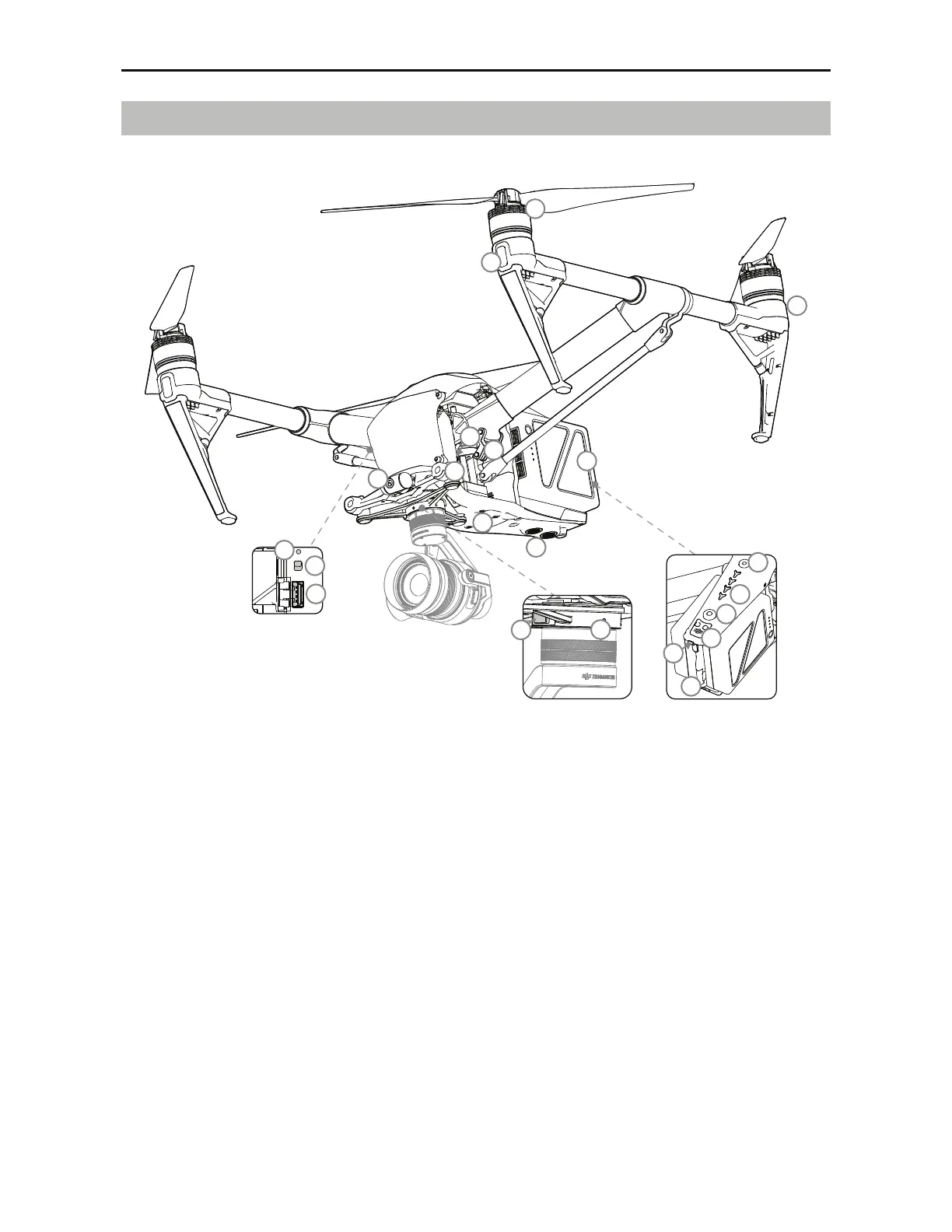

Aircraft Diagram
19
2 0
21
1
11
12
2
5
10
9
7
6
13
14
16
15
18
17
3
4
8
[1] FPV Camera
[2] Forward Vision System
[3] DJI Gimbal Connector V2.0 (DGC2.0)
[4] Gimbal and Camera Detach Button
[5] Downward Vision System
[6] Extended Device Maounting Position
[7] Transformation Mechanism
[8] Control and Processing Center
(with Micro SD Card Slot)
[9] Front LEDs
[10] Propulsion System (with Motors, Propellers, etc.)
[11] Rear LEDs
[12] Intelligent Flight Batteries
[13] Power Button
[14] Battery Level Indicators
[15] Battery Remove Button
[16] Upward Infrared Sensor
[17] Aircraft Status Indicator
[18] DJI CINESSD Slot
[19] Linking Button
[20] USB Mode Switch
[21] USB Port

dji INSPIRE 2 Specifications

General

Type	Quadcopter
Easy to use	Yes
Product color	Black, Grey
Maximum speed	26 m/s
Frequency band	2.4 - 2.483 / 5.725 - 5.85 GHz
Number of rotors	4 rotors
Integrated sensors	Infrared (IR) sensor
Maximum flight time	27 min
Maximum ascent speed	6 m/s
Maximum descent speed	4 m/s
Maximum weight capacity	- kg
Maximum wind resistance	10 m/s
Vertical hover accuracy	0.5 m
Horizontal hover accuracy	1.5 m
Maximum operating distance	7000 m
Maximum yaw angular velocity	150 °/sec
Maximum pitch angular velocity	300 °/sec
Operating frequency	2400 - 2483, 5725 - 5850 MHz
Maximum device width	170 mm
Built-in processor	-
Operating temperature (T-T)	-20 - 40 °C
Battery voltage	22.8 V
Battery capacity	4280 mAh
Transmitter battery capacity	6000 mAh
Number of batteries supported	2
Number of batteries (transmitter)	1
Moving control functions	Backward, Downward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Battery weight	515 g
Takeoff weight (max)	4250 g
Weight (including battery)	3440 g
