4. Prepare the Aircraft

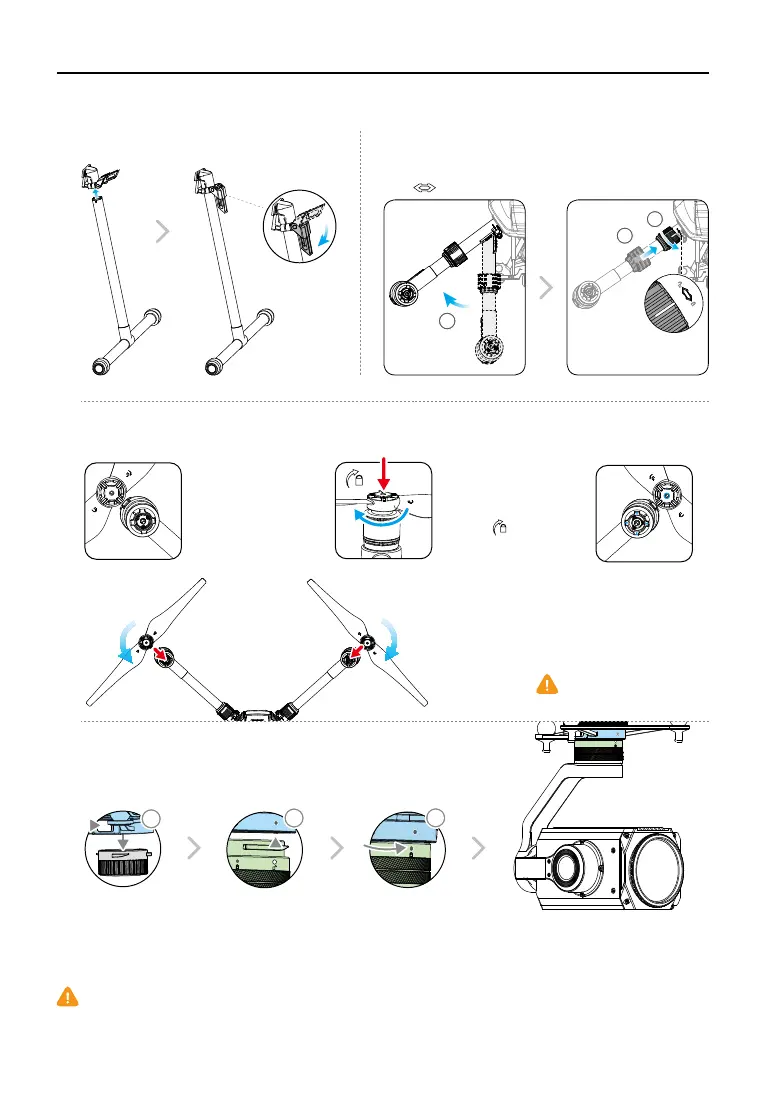

Mounting the Landing Gear
Mounting the Propellers
Mounting the Gimbal and Camera
Press the gimbal
detach button to
remove the cover.
Align the white and
red dots and insert
the gimbal.
Rotate the gimbal
lock to the locked
position.
Check that the propellers are
secure before each ight.
Make sure to press down the gimbal detach button when rotating the gimbal lock to remove the gimbal and camera. The gimbal lock should
be fully rotated when removing the gimbal for the next installation.
Propellers with silver
rings should be
installed on motors
with the same color
marks.
Propellers without
silver rings should
be installed on
motors without
marks.
Press the propeller
down onto the
mounting plate and
rotate in the lock
direction
until
secure.
Unfolding the Aircraft
Unfold the frame arm, slide the arm lock to the end of the frame
arm, and rotate it about 90° until the silver line lies within the range
of the
icon.
